Technical Data
Rated voltage 24Vdc
Voltage range 18Vdc to 26Vdc
Current consumption (idle) 0.1A
Current consumption (max load) 2A
(1)
Startup current limit 2A (2)
Power consumption (max load) 50W (1)
Number of motorized E-roller connections 1
Protection rate IP20
Ambient temperature in operation 0 ˚C to +40 ˚C, non-condensing
Compatible NDW E-rollers ER-Series: 100, 200, 400 RPM
Speed and direction control Graphical UI or via external I/O (PLC)
Stall protection for E-roller Yes
Overvoltage protection for E-roller Yes
Compatibility PNP and NPN
Signaling Graphical UI and Error signal (I/O)
Dimensions 133 x 55 x 27 mm
Max installation height 1000 m
1. Actual power consumption depends on the application conditions, such as actual load, section length, slope etc.
2. A very short current peak of <40ms will occur during startup of the E-roller.
Scope of delivery
The delivery of the BC50 motor controller contains the following parts:
• BC50 motor controller
• Optional*:
• E-roller extension cable
(order code: 901-CABMOT-L)
• Open end power cable
(order code: 901-CABP24-1-L)
• Open end IO cable
(order code: 901-CABCOM-1-L)
*Can be ordered separately.
The “L” stands for required length. Available in dierent standard lengths.
Custom lengths can be made on request. A full overview of accessories in
shown on page 27.

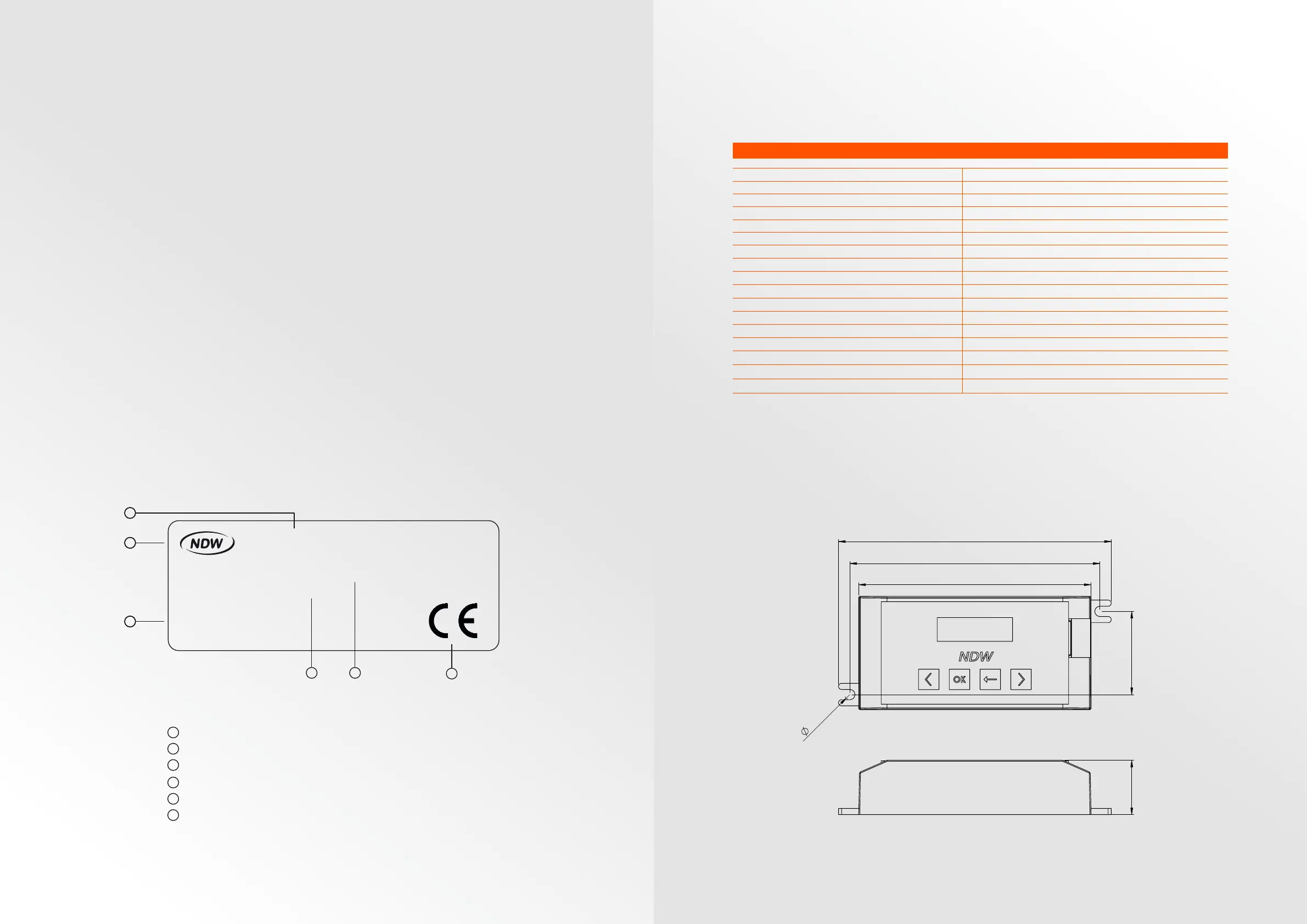

Dimensions
Label
26,5 40,6
122,0
133,0
113,3
5 (2x)
BC50 - Budget controller
Mounting dimensions
Surface finish:
Deburr and break all sharp edges
NAME
DATE
Material:
3D file is leading
Revision:
Title:
Drawing name:
SCALE:1:1
SHEET 1 OF 3
A3
TvL
TvL
11/09/2019
11/09/2019
Budget_Asm_R01
R01
Weight [kg]:
According to ISO 2768-mK unless
specified otherwise
Drawn by
Checked by
Tolerances:
All units are in mm unless specified otherwise
Remarks
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
1
2
3
BC50 Motor Controller
NDW101AAABBBB
YYYY/WW
NDW
Sluisweg 32
5145 PE Waalwijk, Netherlands
www.ndwrollers.com
101 = Product code
AAA = Batch number
BBBB = Unique serial number
YYYY = Year
WW = Week number
4 5
6
BC 50 Motor controller sticker
1
2
3
4
5
6
Manufacturer
Product name
Contact information
Week and year of production
Unique serial number
CE certification mark
NDW BC50 Motor controller label guide
Original size:
BC50 Motor Controller
NDW101AAABBBB
YYYY/WW
NDW
Sluisweg 32
5145 PE Waalwijk, Netherlands
www.ndwrollers.com
This guide explains how to make the labels for the NDW BC50 Motor Controller using
the corresponding “NDW BC50 label.ai” Illustrator file. Numbers 1, 2, 3 and 6 are fixed,
numbers 4 and 5 should be filled in according to the product, the batch and the produc-
tion week.
