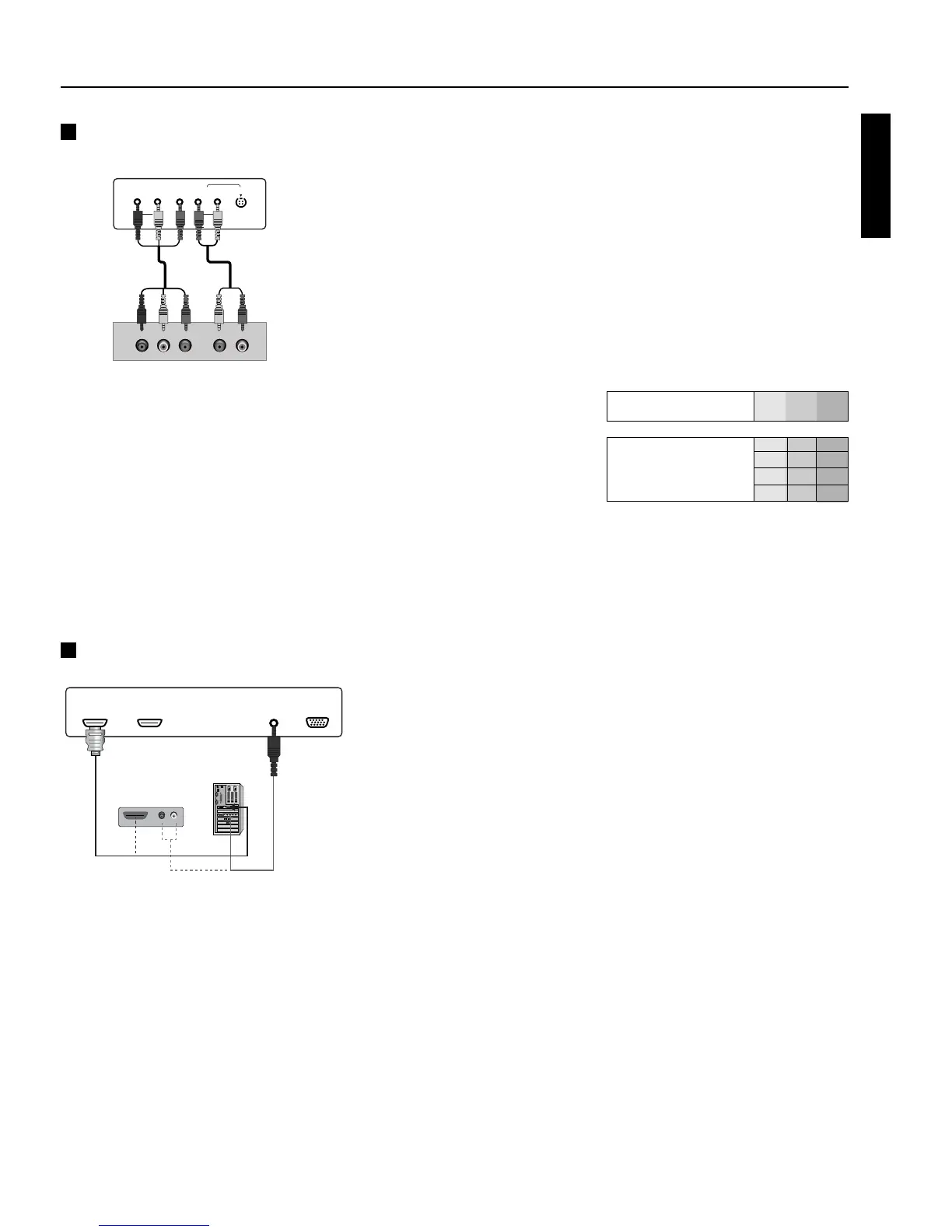

Connections - continued
Connect DVD Player
Connect the DVD video outputs to the COMPONENT (Y, Pb, Pr) jacks and connect the
DVD audio outputs to the AUDIO jacks.
Viewing Setup
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the remote control to select Component.
3. Refer to the DVD player's manual for operating instructions.
• Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown.
Component input signal : 480i / 480p / 720p / 1080i
DVD
Connect HDMI(DTV)
This TV SET can receive High-Definition Multimedia Interface (HDMI) or Digital
Visual Interface (DVI) signals.
Connect the signal cable from the monitor output socket of the PERSONAL
COMPUTER to the particular HDMI INPUT socket of the set.
Connect the audio cable from the PC to the AUDIO INPUT sockets of the set.
Press the INPUT button to select HDMI1, HDMI2, or HDMI3 (APV40/46 only).
Switch on the HDMI device, and the HDMI screen appears on the set.
HDMI-DTV input signal: 480p-60Hz, 720p-50Hz, 720p-60Hz, 1080i-50Hz,
1080i-60Hz.
HDMI Interface with HDCP (High Definition Copy Protection) enables all-digital
rendering of video without the losses.
Component input on Set
Y Pb
Pr
Video Output on
DVD
Y
Y
Y
Y
PB
B-Y
Cb
PB
PR
R-Y
Cr
PR
To Next Page
