Quick Install Guide – SL2100 Multiline IP Terminals rev 1.1
10 NEC SL2100 Communication System

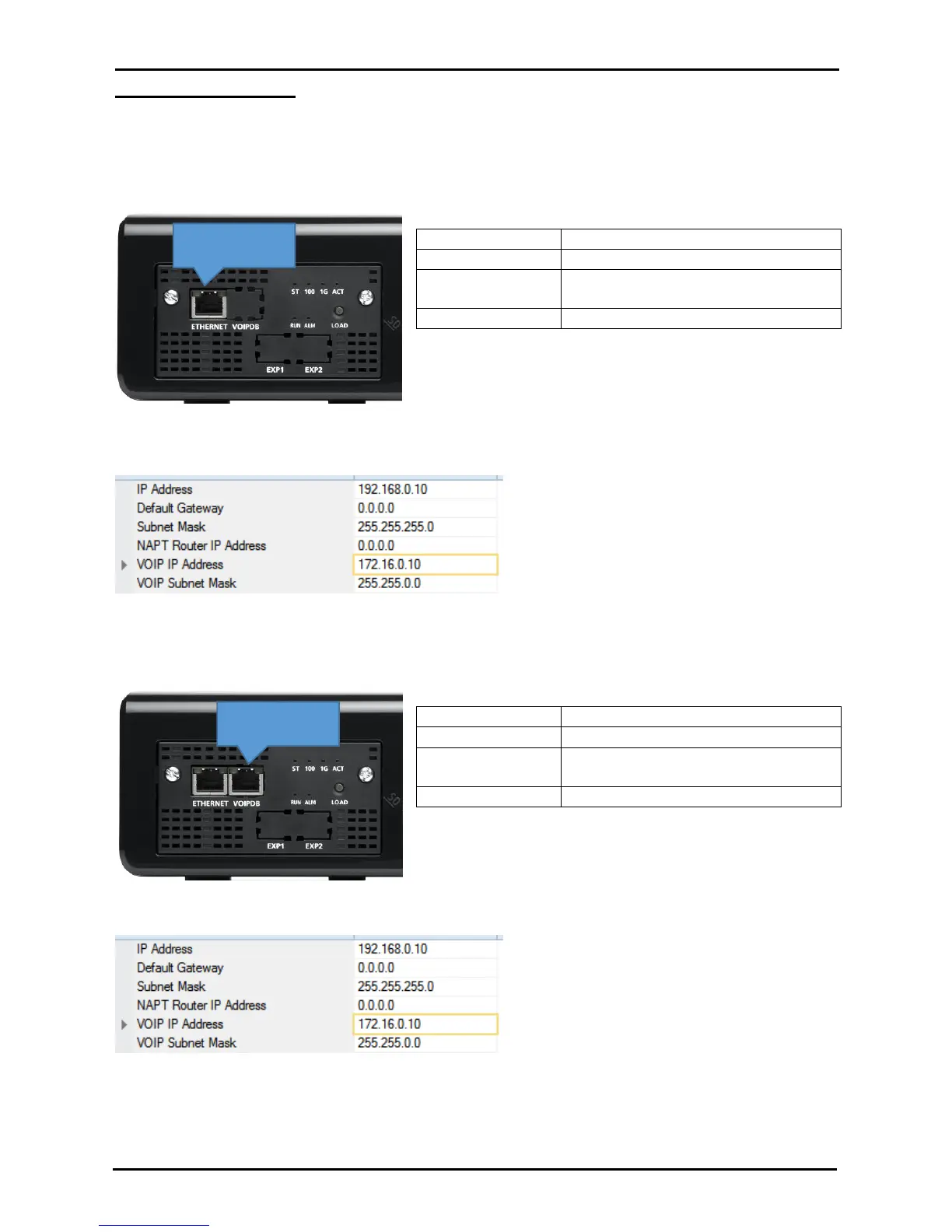

Ethernet sockets for VOIP
There are two Ethernet sockets available with the SL2100: CPU card and optional VOIPDB card.
 When the CPU card is installed – Use the Ethernet socket of the CPU.
8 VOIP resources built in with the CPU card are available
Use the VOIP IP address settings for VOIP devices
Note – do not use the CPU IP address settings as these will not support VOIP devices
SL2100 IP address
172.16.0.10
Subnet Mask
255.255.0.0
Supports
Data (eg PCPro/WebPro, SMDR etc)
VOIP
LAN speed
100 Mbps Full Duplex
Use the IP address and Subnet mask setup in PCPro Easy Edit - Quick Install - Cards-CPU Settings - CPU IP
Address: VOIP IP Address
 When the optional VOIPDB card is installed – Use the Ethernet socket of the VOIPDB card
16~128 VOIP resources provided by the VOIPDB card + VOIP channel licenses are available
Use the VOIP IP address settings for VOIP devices
SL2100 IP address
172.16.0.10
Subnet Mask
255.255.0.0
Supports
Data (eg PCPro/WebPro, SMDR etc)
VOIP
LAN speed
100/1000 Mbps Full Duplex
Use the IP address and Subnet mask setup in PCPro Easy Edit - Quick Install - Cards-CPU Settings - CPU IP
Address: VOIP IP Address
CPU card
Ethernet socket
VOIPDB card
Ethernet socket
