Quick Install Guide – SL2100 Multiline IP Terminals rev 1.1
16 NEC SL2100 Communication System
8- Wall Mounting Multiline IP Terminals

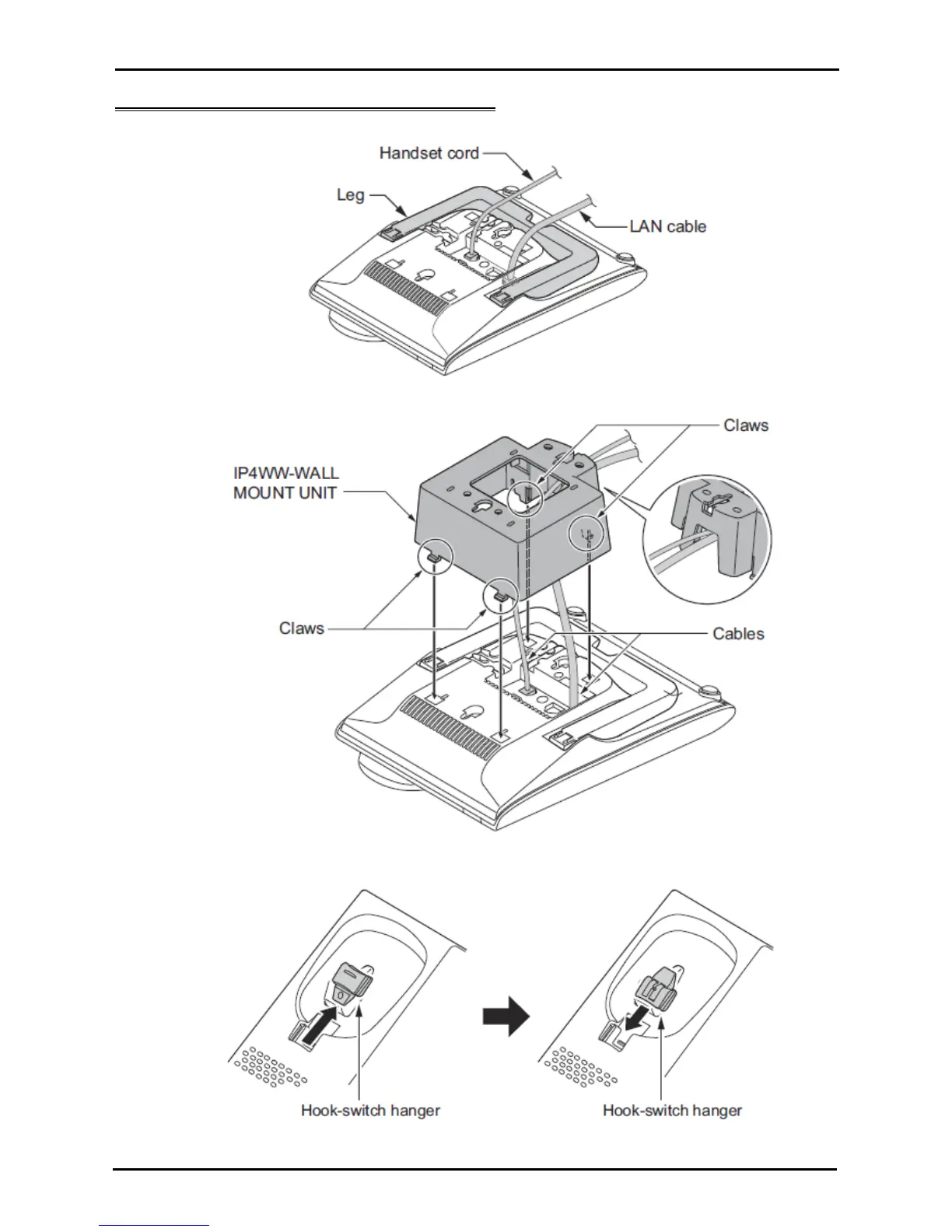

1. Arrange the cables and put down the legs as shown below.
2. Attach the IP4WW-WALL MOUNT UNIT to the bottom panel and arrange the cables as shown below.
3. Remove the switch-hook from the unit. Turn the tab toward the top. Then slide the hook-switch into
position.
4. Install two screws into a wall. The screw head must be remained about 3mm (0.12”).
To Next Page
