Quick Install Guide – SL2100 Multiline IP Terminals rev 1.1
NEC SL2100 Communication System 5

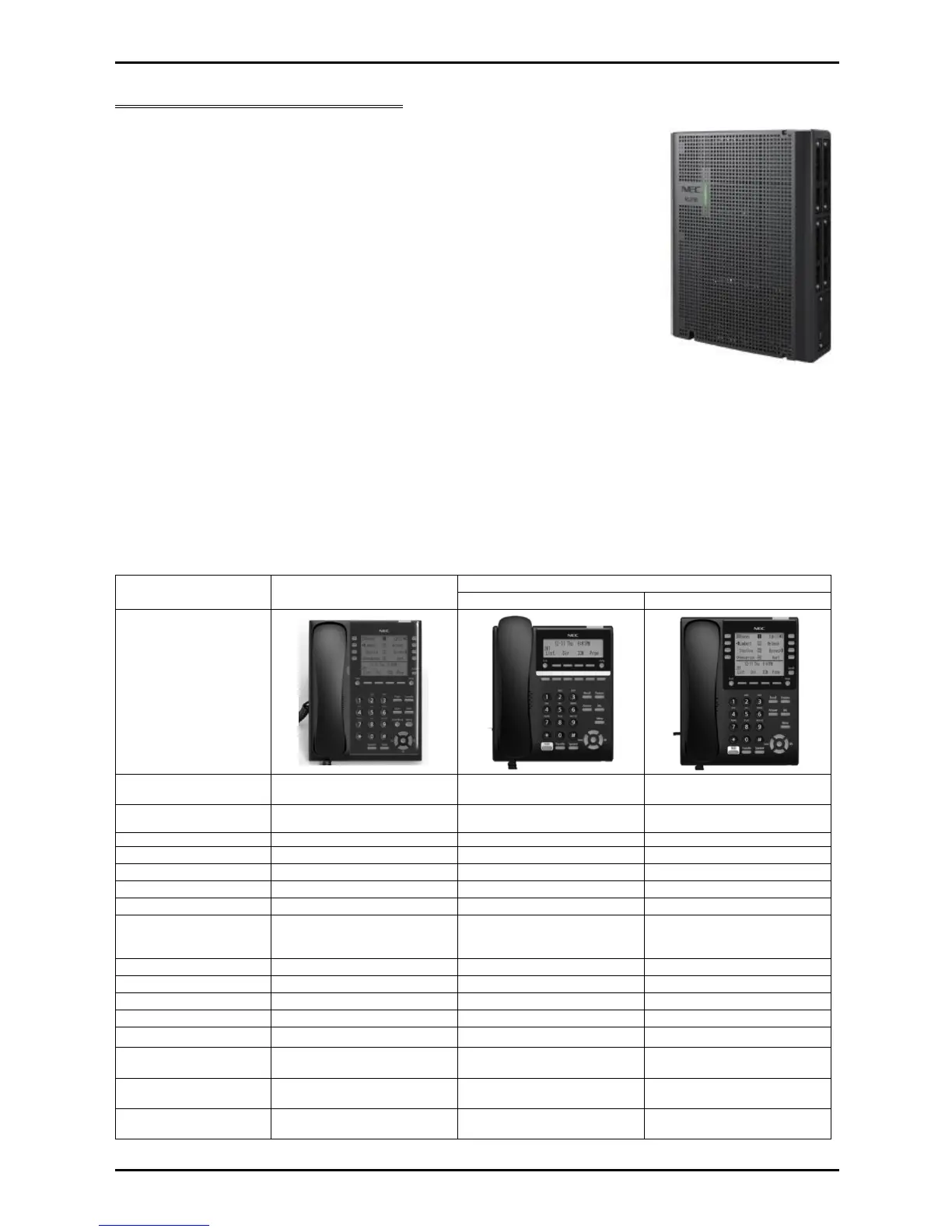

SL2100 Multiline IP Terminals
The SL2100 system consists of a chassis unit with a dedicated slot for the CPU
card and four universal slots for interface cards. Each universal slot supports an
extension interface card, each extension interface card can have an optional trunk
interface daughter card mounted.
Interface cards are available for Analogue and ISDN trunks, proprietary SL2100
terminals and analogue telephones.
The chassis unit is ventilation cooled (no fan) and can be wall mounted or rack
mounted with the optional rack mount shelf. Up to three chassis units can be
connected together to provide a total of twelve universal slots.
Multiline IP terminals are supported without the need for additional system
hardware as eight VoIP resources are built in to the CPU card. VoIP resources can
be expanded to 16 by adding the optional VOIPDB card and further to 128 with
licenses.
All equipment will operate in the default/factory setting when the SL2100 is installed.
With the default settings:
Each telephone will function and is assigned an extension number.
Calls received on the SIP trunk lines will ring at telephone number 200.
Each telephone can make outside calls by dialling 9.
Each trunk line is presented at a Function Key with busy lamp indication.
The system can be easily modified using SL2100 PCPro which has Quick Installation wizards for the majority of
system settings.
This guide details the installation of the following Multiline IP Terminals:
