129

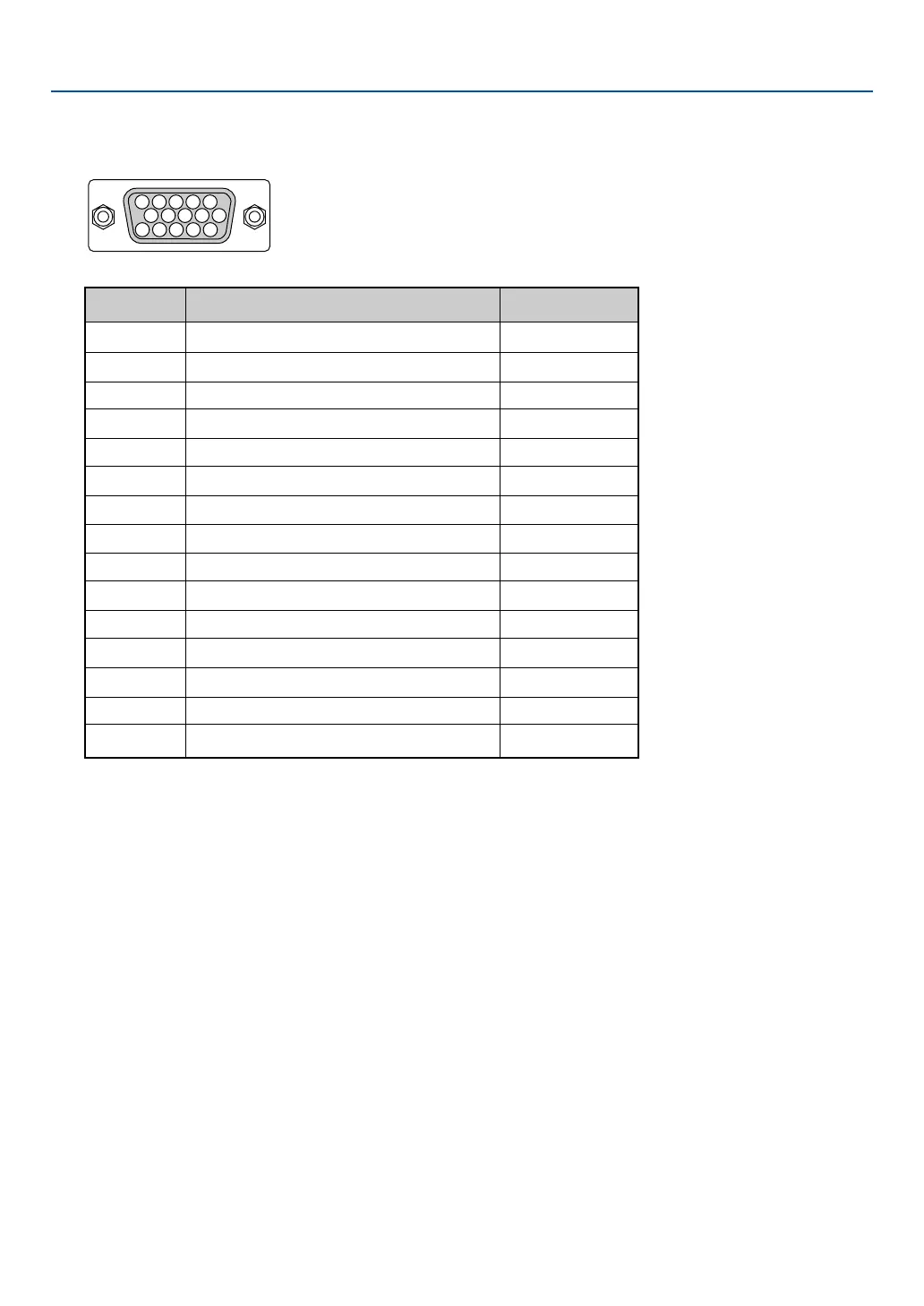

Mini D-Sub 15 Pin Connector
Pin Assignments of D-Sub COMPUTER 1/2 Input Connector
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
* COMPUTER 1 IN connector only
51423
10
1112131415
6978
8. Appendix
Pin No. RGB Signal (Analog) YCbCr Signal
1Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 Ground
12 Bi-directional DATA (SDA)*
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock*
