2. Installation and Connections
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
Y
Cr/Pr
AC IN
COMPUTER 1 IN
Before connections: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are re-
quired for this connection.
From the menu, select [Setup] → [Options] → [Signal Select] → [Computer 1] → [Scart].
SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro-
connector.
NOTE: Audio signal is not available for this connection.
TIP: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more
information.

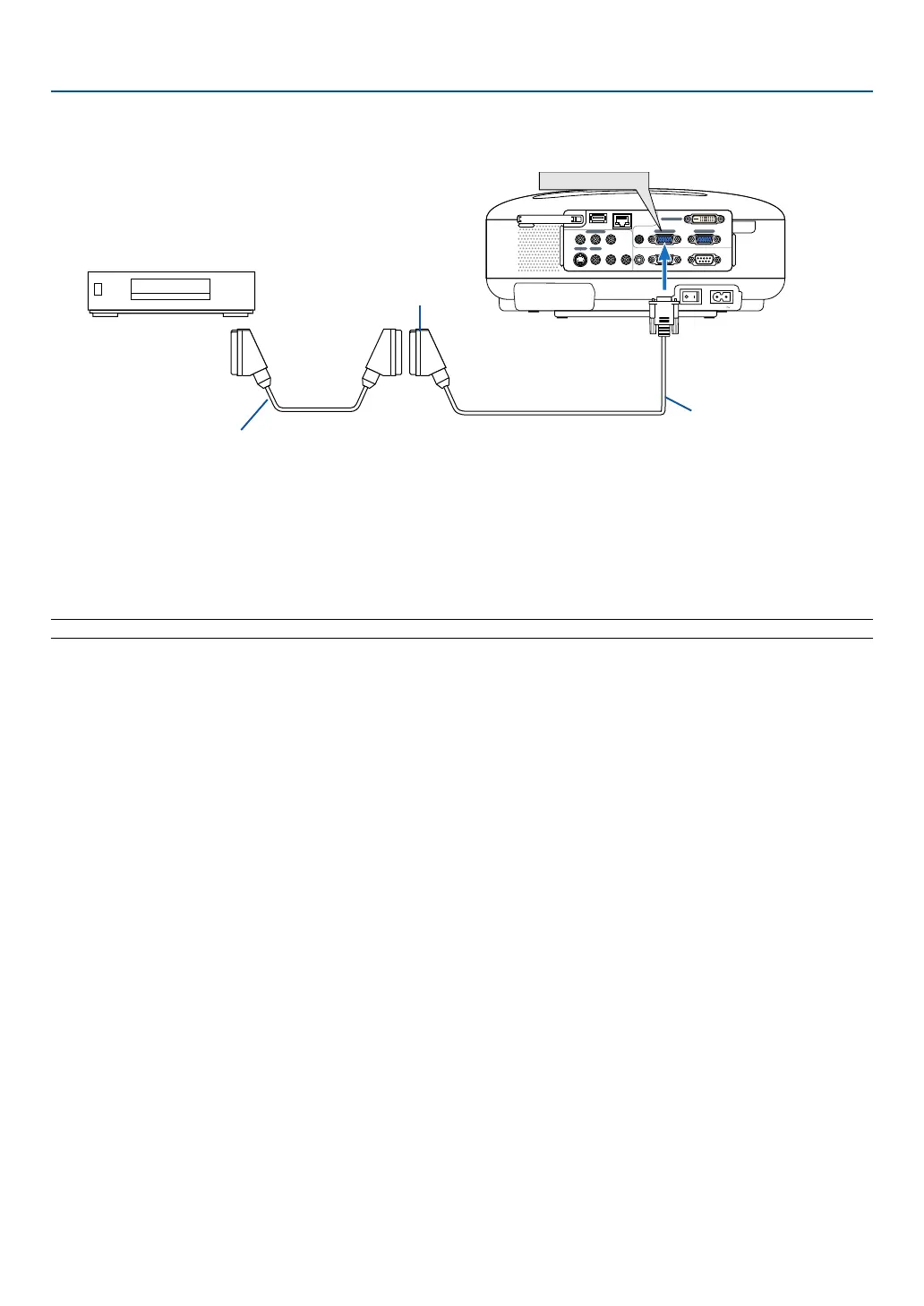

To connect SCART output (RGB)
Video equipment such as DVD player
Commercially available SCART cable
Female
ADP-SC1
Projector
