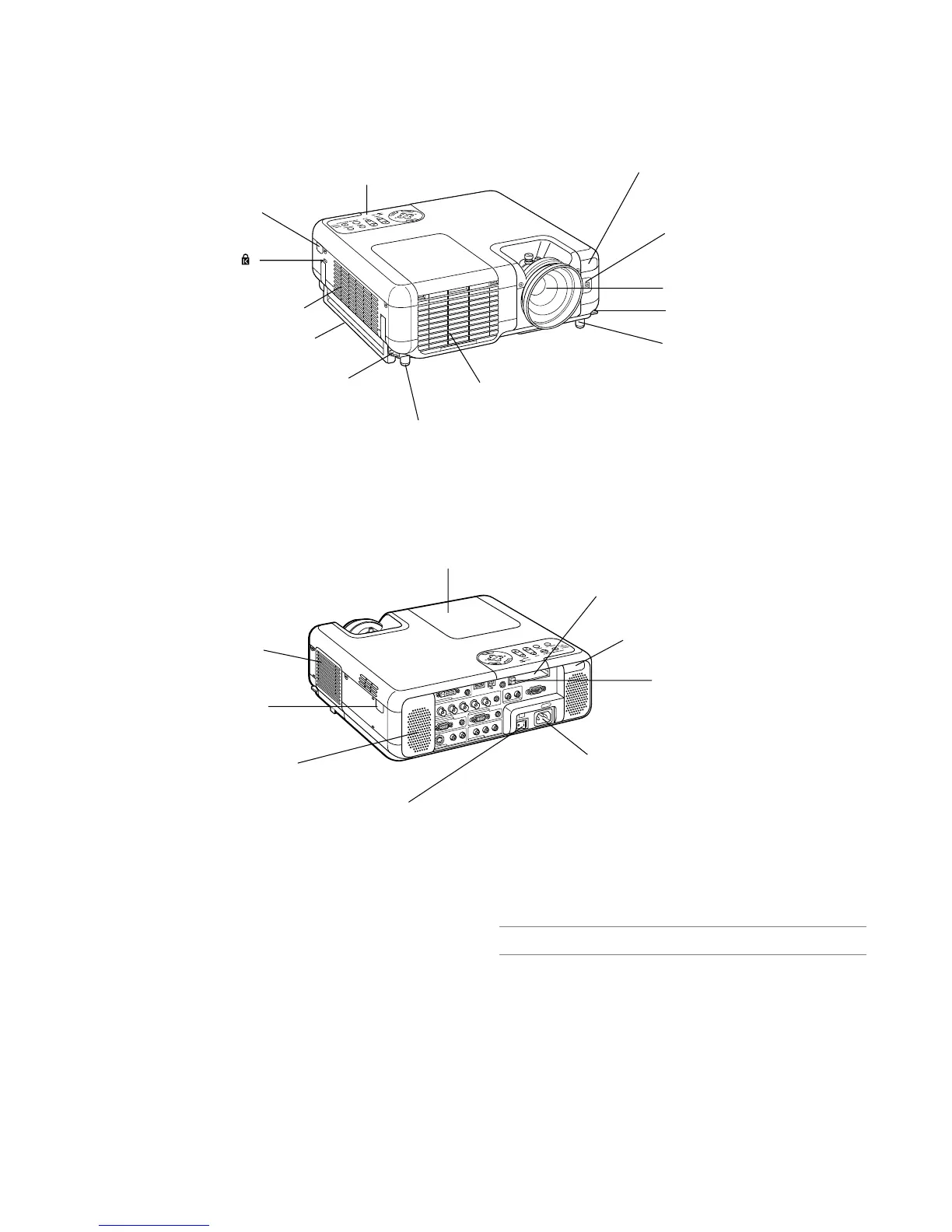

Part Names of the Projector
Ventilation (outlet)
Heated air is exhausted from here
* This security slot supports the MicroSaver
®
Security System.
MicroSaver
®
is a registered trademark of Kensington Microware Inc.
The logo is trademarked and owned by Kensington Microware Inc.
Built-in Security Slot ( )*
Adjustable Tilt Foot Lever
(See page E-19)
Remote Sensor (See page E-11)
Controls (See page E-7)
Filter Cover (inlet)
Carrying Handle
Lens
Adjustable Tilt Foot (See page E-19)
Stereo Speaker (5W)
AC Input
Connect the supplied power cable's three-
pin plug here, and plug the other end into
an active wall outlet. (See page E-17)
Main Power Switch
When you plug the supplied power cable into
an active wall outlet and turn on the Main
Power switch, the POWER indicator turns
orange and the projector is in standby mode.
(See page E-18)
Remote Sensor
(See page E-11)
PC Card Slot 1
PC Card Slot 2
Lamp Cover (See page E-53)
PC Card Eject Button
Image Sensor
Not available on MT1060R/MT860R
Ventilation (inlet)
Remote Sensor (See page E-11)
Adjustable Tilt Foot Lever
(See page E-19)
Adjustable Tilt Foot
(See page E-19)
Remote Sensor (See page E-11)
NOTE: The pages in the parentheses refer to pages in the MT1065/MT1060/
MT860 user’s manual.
