4. Communication Format
The command packet consists of four parts, Header, Message, Check code and Delimiter.
Note: Don't add extra data (Example: padding data) after Delimiter.
Recommended sequence of a typical procedure to control a monitor is as follows,

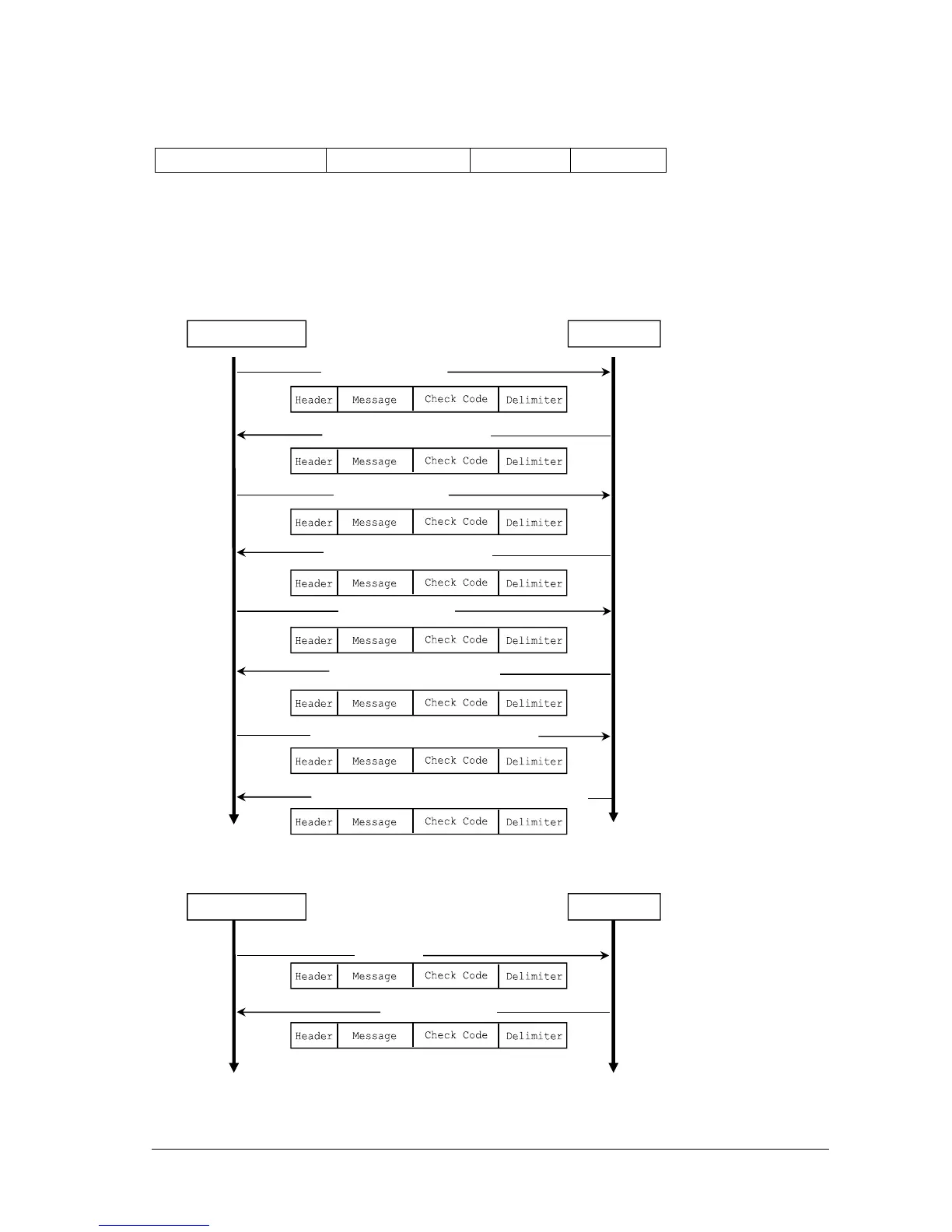

[A controller and a monitor, two-way communication composition figure]
■ For the general command (see the part "6.3. Operation Code (OP code) Table”)
■ For the special command (see the part 7 to 24. and 5.5.2)
Header Message Check Code Delimiter
Monitor Controller
Get Parameter
Get Parameter Reply
Set Parameter
Set Parameter
Get Parameter Reply
Save Current Setting Command
Get Parameter
The controller sends command to
get a value from the monitor
that you want to change.
The monitor replies a current
value of the requested item.
The controller sends commands
to set an adjusted value.
The monitor replies to the
controller for confirmation.
The controller sends command to
get a value for confirmation.
The monitor replies an adjusted
value.
The controller requests to
store the adjusted value to the
monitor.
Command
Command Reply
The control does not suitable
for above fixed protocol; use
the proper command for each
control. Please refer section
5.5 and section 7 to 26.
The monitor replies a proper
message defined for each
Save Current Setting Command Reply
The monitor replies to the
controller for confirmation.
Monitor Controller

NEC MultiSync C431 Specifications

General

Response time	6.5 ms
Display diagonal	50 \
Display brightness	400 cd/m²
Display technology	LCD
Native aspect ratio	-
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Display number of colors	1.073 billion colors
Display diagonal (metric)	125.73 cm
Active display area (W x H)	1095 x 616 mm
Supported graphics resolutions	800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Annual energy consumption	110 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	75 W
USB version	2.0
Ethernet LAN	Yes
HDMI ports quantity	3
Compatible memory cards	MicroSD (TransFlash)
Purpose	Universal
Product type	Group video conferencing system
Product color	Black
Number of persons	- person(s)
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X, IP2X
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Orientation	Horizontal/Vertical
Certification	CE; EMC B; FCC; PSB; TÜV GS; UL/C-UL / CSA; VCCI
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (bottom)	12.4 mm
Panel mounting interface	300 x 300 mm
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, WMV
Sustainability certificates	RoHS, ENERGY STAR
RMS rated power	20 W
Number of built-in speakers	2
Megapixel	- MP
Image sensor size	- \
Cables included	AC, DisplayPort, HDMI

Weight and Dimensions

Depth	45 mm
Width	1125 mm
Height	645 mm
Weight	16100 g
