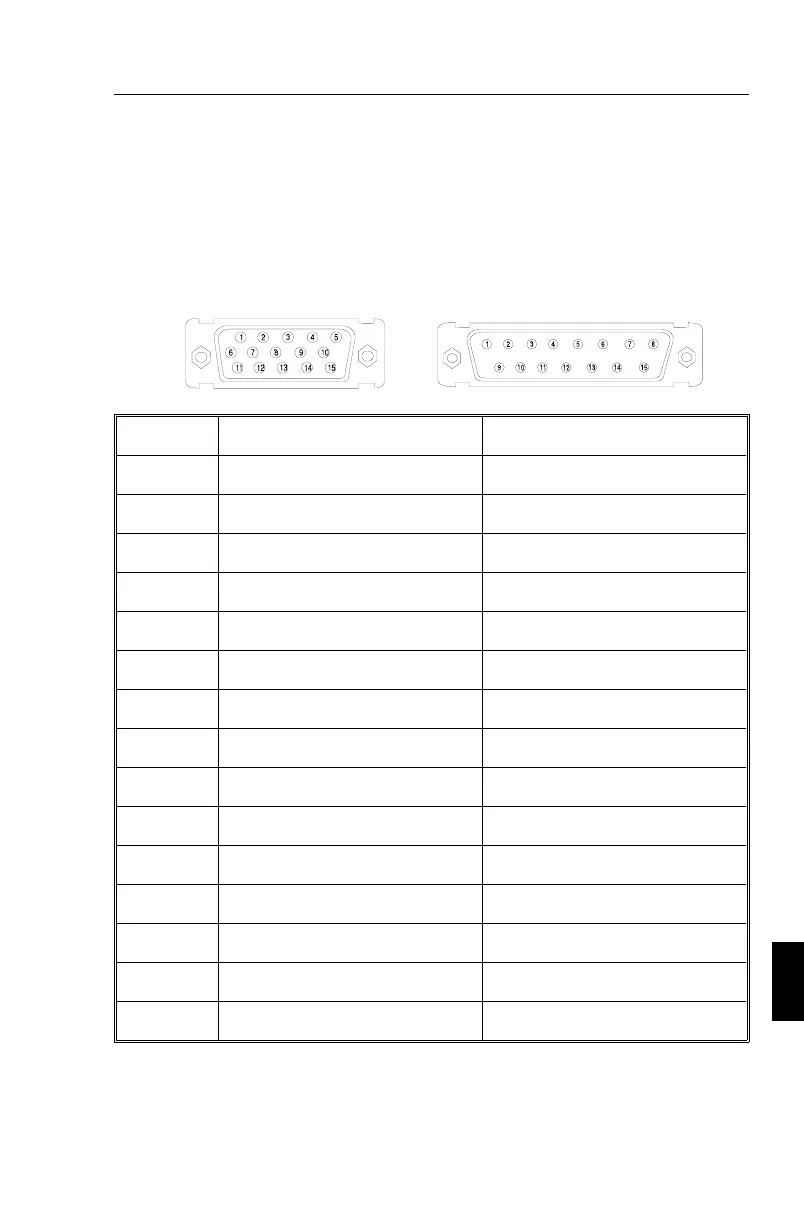

App. A PIN ASSIGNMENTS
Pin No. Mini D-SUB 15P D-SUB-15P
1 RED GROUND
2 GREEN RED
3 BLUE H/V COMP. SYNC
4 GROUND SENSE 0
5 DDC Return GREEN
6 GROUND GROUND
7 GROUND SENSE 1
8 GROUND NO-CONNECTION
9 NO-CONNECTION BLUE
10 GROUND SENSE 2
11 GROUND GROUND
12 Bidirectional Data (SDA) V. SYNC
13 H.SYNC, H/V.SYNC GROUND
14 V.SYNC GROUND
15 Data Clock (SCL) NO-CONNECTION
MultiCable
MINI D-SUB 15 P
MultiCable
D-SUB 15 P
App. A PIN ASSIGNMENTS A - 1
