NEC Display Solutions of America, Inc.
P451X/P501X Installation Guide
Ceiling Mounted and Desktop Rev 1.0
www.necdisplay.com P451X/P501X Page 4 of 6
Cabinet Dimensions (continued)

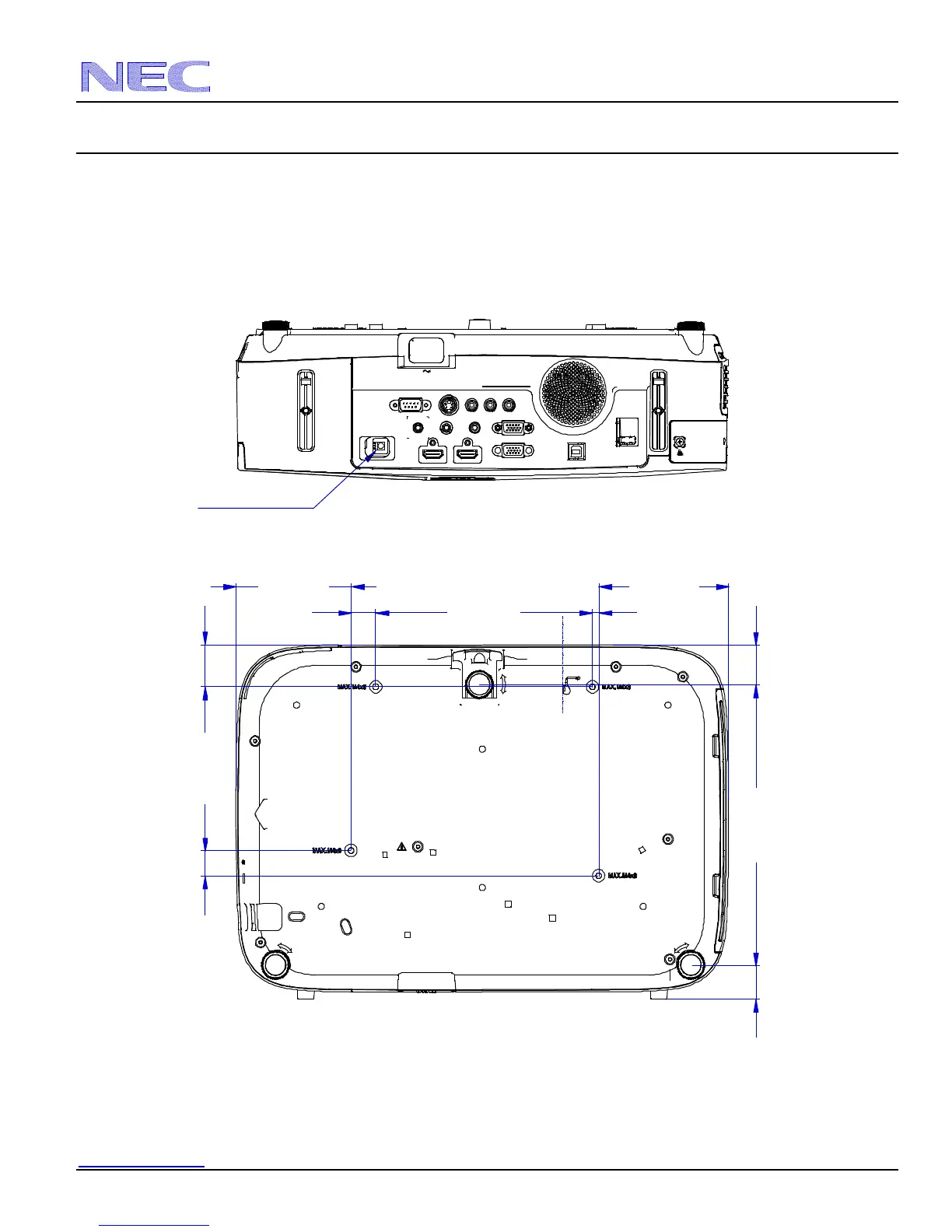

The following drawings show the cabinet dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
Requires (4) M4x8mm screws for mount attachment.
5.130.80 1.32
6.900.79 0.21
3.67 4.13
1.05 8.78 1.25
IR Receiver
To Next Page
