This section should be used when considering the distance to the screen and the screen size.
Available projection distances are 1.1 m/43.5 inches for 30" screen to 19 m/756 inches for 500" screen, according
to the chart.

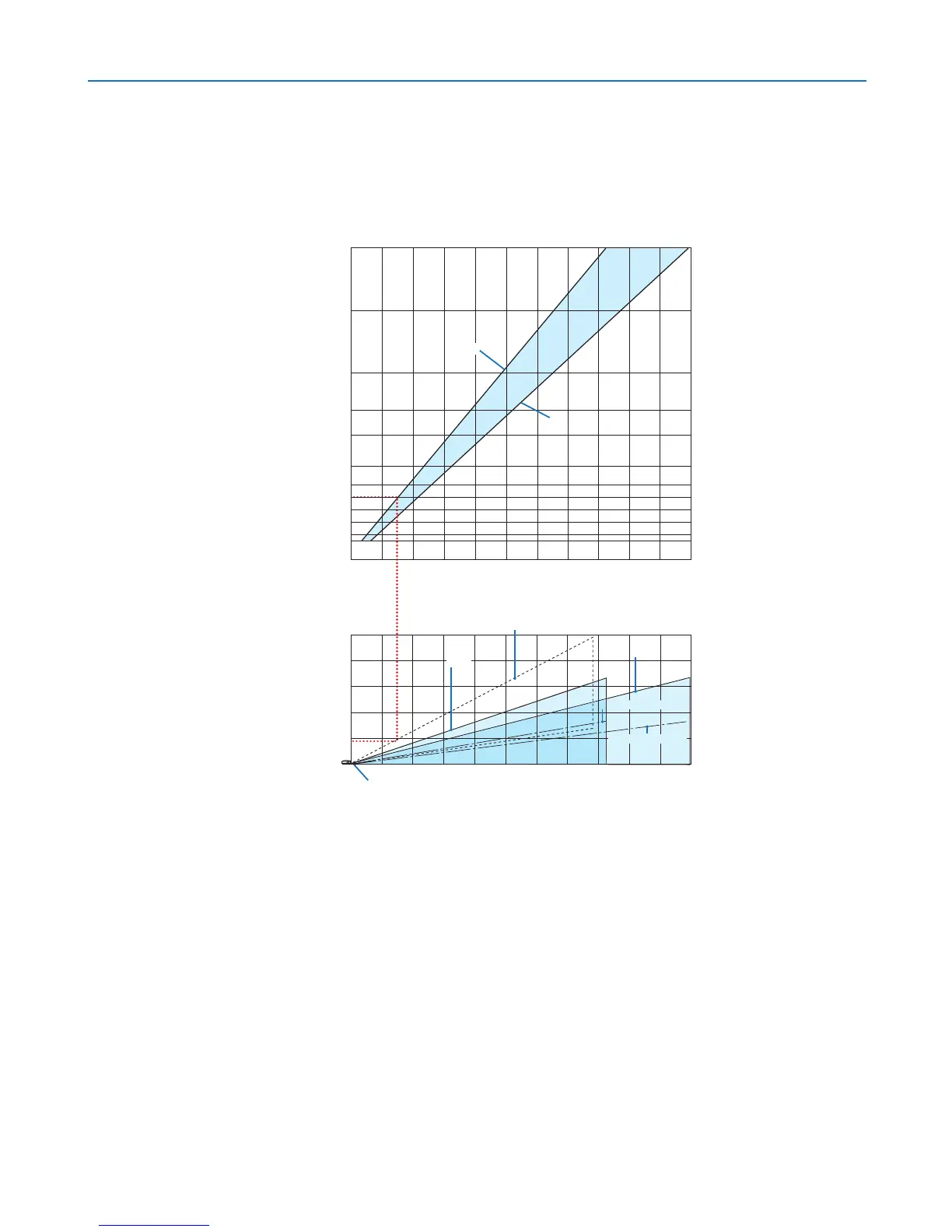

Using the Chart
Example for 100" screen:
The projection distance is approximately 3.3 m/130 inches according to the upper chart.
The lower chart shows that the vertical distance between the projector foot and the screen top is approximately 1.4
m/55 inches. The projection angle can be adjusted up to 10°. (The lower chart shows that the projector is placed in
a horizontal position)
0
Screen size
(Diagonal)
Throw distance
Wide
2
4
14 16 18 20 22
1210
8
6
(m
)
2
4
14 16 18 20 22
1210
8
6
(m
)
Tele
40
30
10
8
6
4
2
60
80
100
120
150
200
240
(Model)
300
400
500
Projector foot
(m)
Vertical lens shift : the highest position
Vertical distance between
projector foot and screen
top
Wide
When tilted at an angle 10 in Wide
Tele
Screen center line (Tele)
Screen center line (Wide)
