NEC PA571W Installation Guide

NEC Display Solutions of America, Inc.
PA521U/PA571W/PA621X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PA521U/ PA571W/PA621X Page 7 of 14

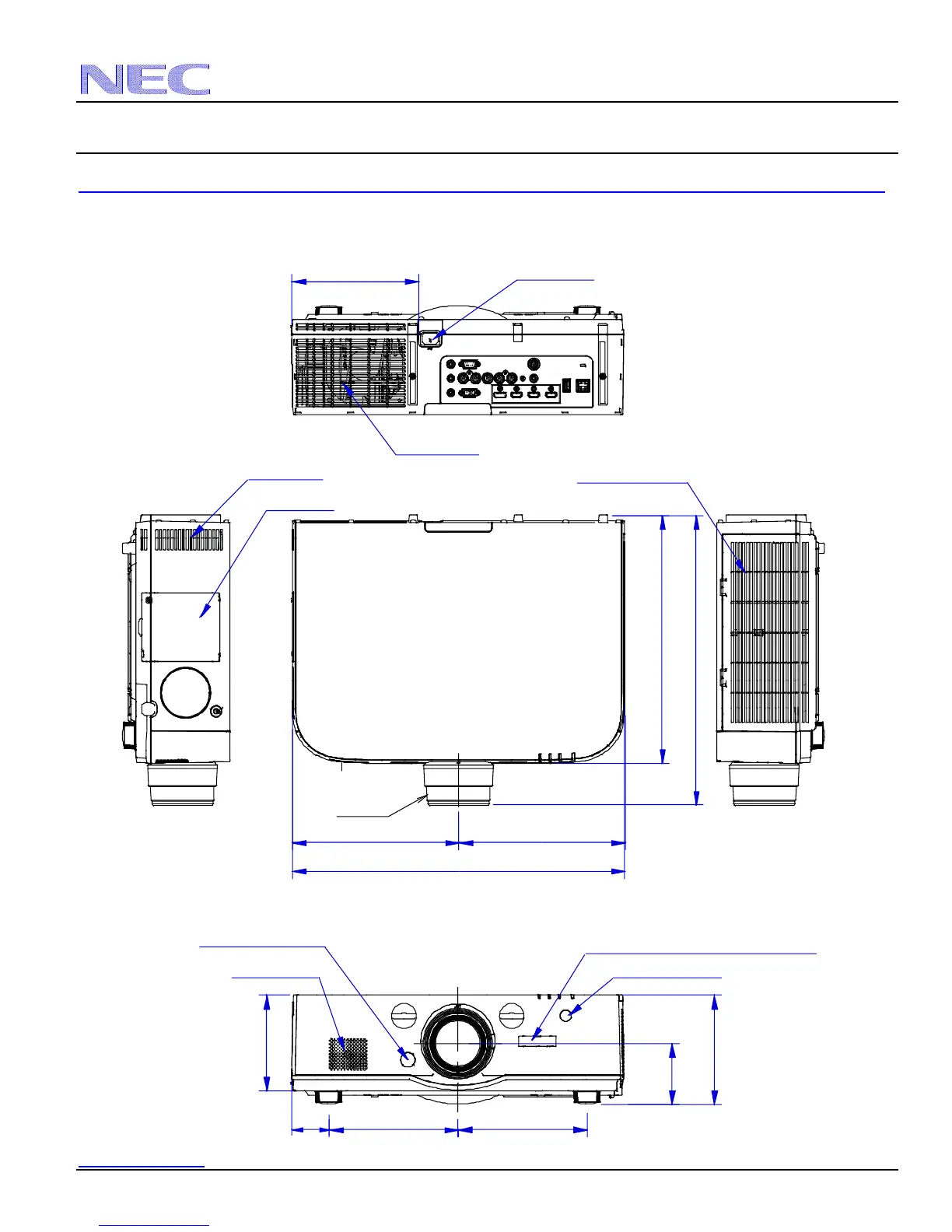

Cabinet Dimensions
The following diagrams show the cabinet dimensions for the PA521U/ PA571W/PA621X.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown with the NP13ZL lens
3.57
6.40
5.59
7.64
2.21
7.64
NP13ZL
14.51
16.95
9.86 9.86
19.70
Exhaust
Exhaust
AC Inlet
Intake Filter
Speaker
Lens Release
Lens Lock (Portrait Mode)
IR Receiv er
7.50
Lamp
