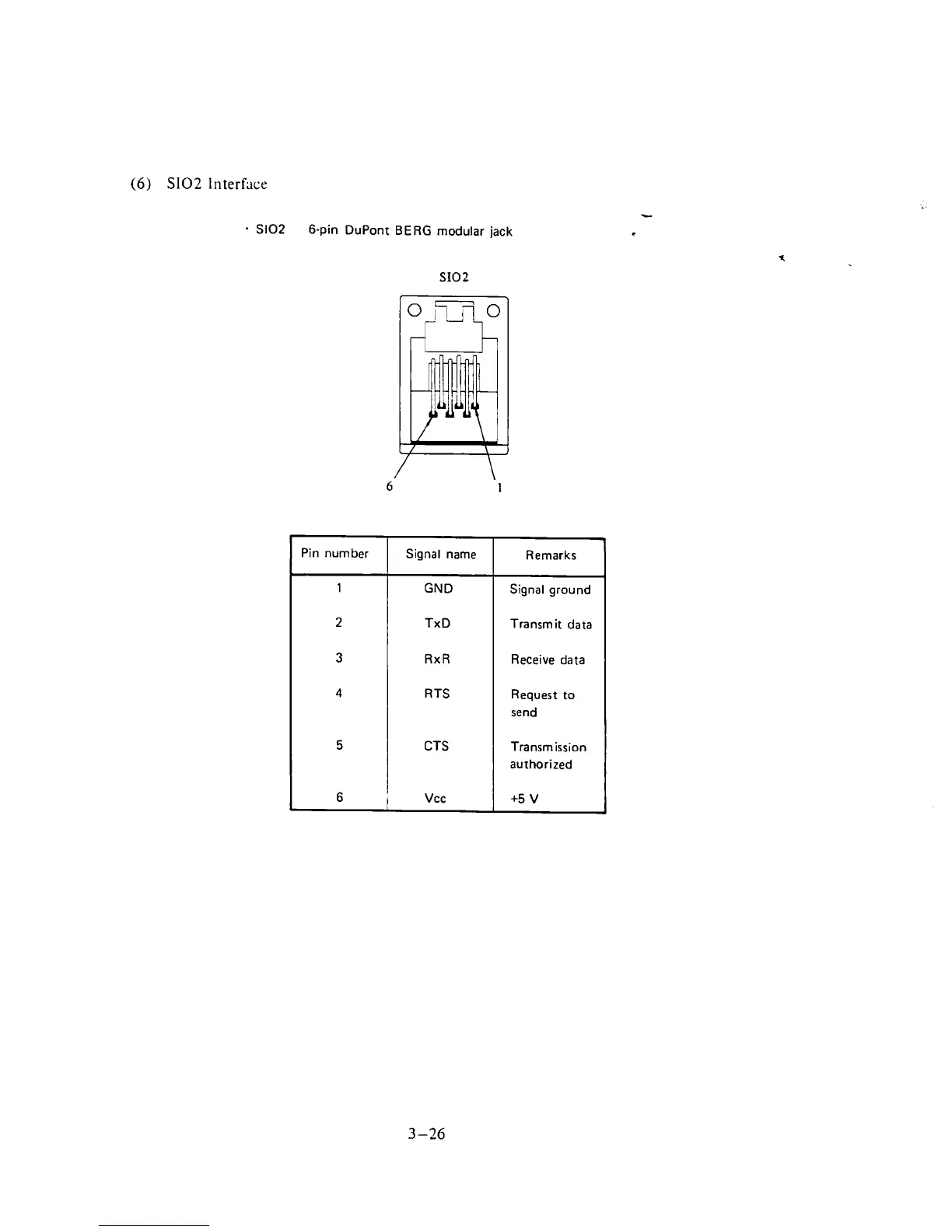

(6) S102 Interface
S102
6-pin DuPont BERG modular jack
Pin number
1
2
3
4
5
6
Signal name
GND
TxD
RxR
R TS
CIS
Vcc
7
Remarks
Signal ground
Transmit data
Receive data
Request to
send
Transmission
authorized
+5 V
