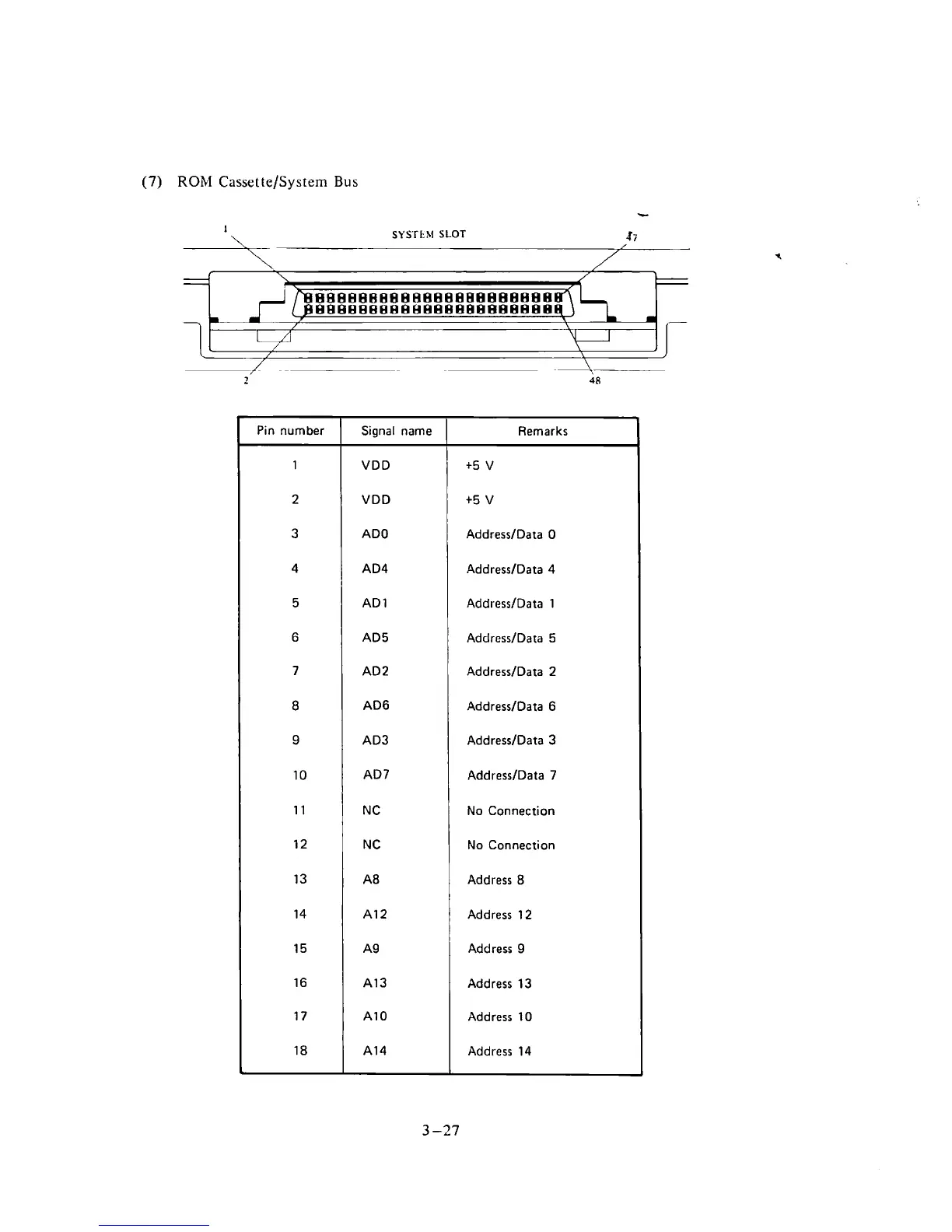

(7) ROM Casset te/System Bus
-
SYSTEII SLOT
Pin number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Signal name
VDD
VDD
ADO
AD4
AD 1
AD5
AD2
AD6
AD3
AD7
N C
NC
A8
A1 2
A9
A13
A1 0
A14
Remarks
+5 V
t5 V
AddressIData 0
AddressIData 4
AddressIData 1
AddressIData 5
AddresstData 2
AddressIData 6
AddressIData 3
AddressIData 7
No Connection
No Connection
Address 8
Address 12
Address 9
Address 13
Address 10
Address 14
