(2) MON Operation Test
( Preparation )
Connect the pin in Figure 5.32 with the cassette connector.
a)
By connecting the circuit. you can measure the signal in Figure 5.33

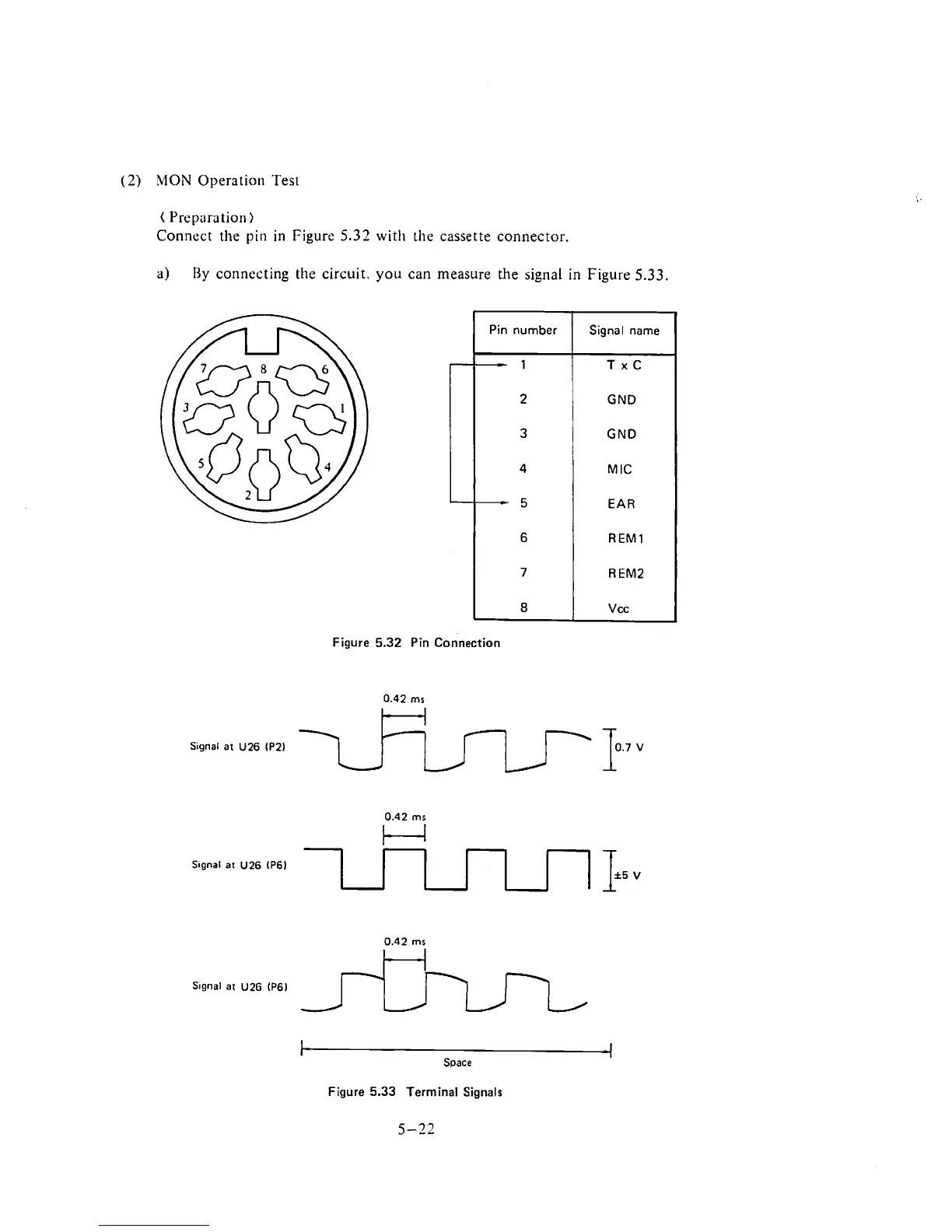

Figure 5.32 Pin Connection
Pin number
- 1
2
3
4
5
6
7
8
Signal at U26 (P21 1 I., V
Signal name
TxC
GND
GND
M IC
EAR
REMl
R EM2
Vcc
Figure
5.33 Terminal Signals
