b) By

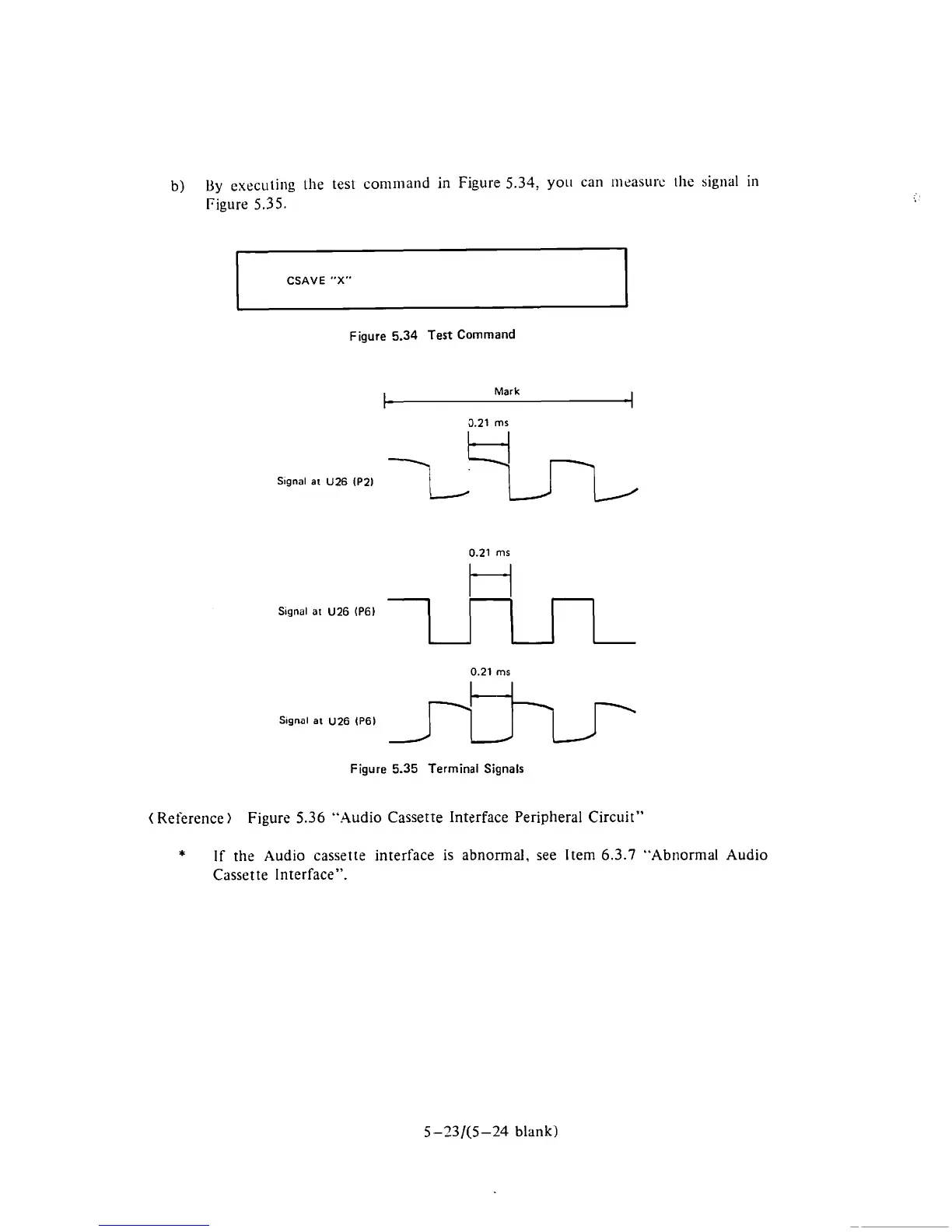

the test command in Figure 5.34, you can measuru the signal in
Figure 5.35.
CSAVE "X"
Figure 5.34 Test Command
t Mark I
Signal at U26 (P61
Figure 5.35 Terminal Signals
( Reference)
Figure
5.36 "Audio Cassette Interface Peripheral Circuit"
*
If the Audio cassette interface is abnormal, see Item 6.3.7 "Abnormal Audio
Cassette Interface".
