NEC PlasmaSync
®
Displays
NEC 080462
42XM3
Specifications
Model Number
PX-42XM3A, Diagonal Screen Size 42"
Scr
een Aspect Ratio 16 to 9
Active Scr
een Area 36.3" x 20.4", 921 mm x 518 mm
Native Pixel Resolution 1024 x 768
Pixel Pitch 0.897 mm x 0.675 mm
Capsulated Color Filter Yes
Accucrimson Yes
Front Filter Type AR - Anti-reflective
Color Processing 68.7 billion colors (4096 steps)
V
iewing Angle 160 degrees
Horizontal Fr
equency Range 15.5 to 110.0 kHz auto, step scan
V
ertical Frequency Range 50 to120 Hz auto, step scan
PC Signal Compatibility
VGA 640x480 @ 60,72,75,85,100, 120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz, 1280 x 768 @ 60Hz
Macintosh Compatibility 640x480, 832x624, 1024x768, 1152x870
Video Signal Compatibility PAL, SECAM, 3.58/4.43 NTSC
HD Video Signal Compatibility 480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i
Input Terminals RGB 1 (analog) 15-pin mini D-sub (common use with RGB out, selectable)
RGB 2 (analog)
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)
RGB 3 (digital)
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible
V
ideo 1 Composite BNC x 1 (common use with Video out, selectable)
V
ideo 2 Composite RCA x 1
V
ideo 3 S-Video 4-Pin DIN
HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD V
ideo 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with
5BNC Y/Pb/Pr input,selectable)
Audio 3 sets RCA stereo + external speaker jacks
Output terminals
RGB (analog) 15 PIN mini D-sub (common use with RGB1, selectable)
Video Composite BNC (common use with Video1, selectable)
Audio Internal amplifier, 8W x 2 output power
External Contr
ol 9-pin mini D-Sub, RS232
User Controls Direct Access Power on/off, input selection, volume up/down, OSM access, (Control Lock Switch
located on input panel)
Remote Control Power on/off, input select, volume, mute, wide, display, off-timer, OSM control,
cursor, pointer, zoom, auto, select
OSM
Picture - Contrast, brightness, sharpness, color, tint, color temperature, white balance,
picture mode, noise reduction, gamma, low tone and color tune
Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position, horizontal position, vertical
height, horizontal width, fine picture, picture adjust, auto picture
Option 1 - OSM on/off, BNC Input, D-sub Input, RGB select, HD select, Input Skip, All Reset
Option 2 - Pwr. Mgmt., Cinema Mode, Long Life Mode, Closed Captioning, DVI Setup
Option 3 - Timer, Pwr. On mode, Control Lock, IR Remote, Loop Out, ID Number, Video
Wall Advanced OSM, Language, Color System, Source Information
Plug & Play
DDC1, DDC2B (RGB3 is DDC2B only)
Power Requirements 120V 50/60 Hz
Power Consumption 300W Typical, 5.2 Amp Maximum
Standby Power
0.80W
Dimensions (WxHxD) 40.1" x 20.4" x 3.5", 1018 x 610 x 89mm (without base)
Weight 65.0 lbs., 29.5 kg (without tabletop stand)
Envir
onmental Considerations
Operating T
emperatur
e 32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity 20 - 80%
Operating Altitude 0 - 9180 feet (0 - 2800m)
Storage T
emperatur
e
14 - 122 degr
ees F (-10 - 50 degrees C)
Storage Humidity 10 - 90%
Storage Altitude 0 to 9840 feet (0 - 3000m)
W
ar
ranty
1 Year Parts & Labor Standard
Regulatory FCC Class A, UL1950, CSA950
Included Accessories AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
Optional Accessories
T
abletop Stand
PX-ST1U
Fixed Wall Mount FWMK
Tilt Wall Mount TWMK
Ceiling Mount
CMK
Fixed Wall Mount for PC FWMKPC
Tilt Wall Mount for PC TWMKPC
Ceiling Mount for PC
CMKPC
Attachable Speakers PX-42SP1U
Input Terminal Cover PX-CV2U
Stand Plug
PX-PL1U

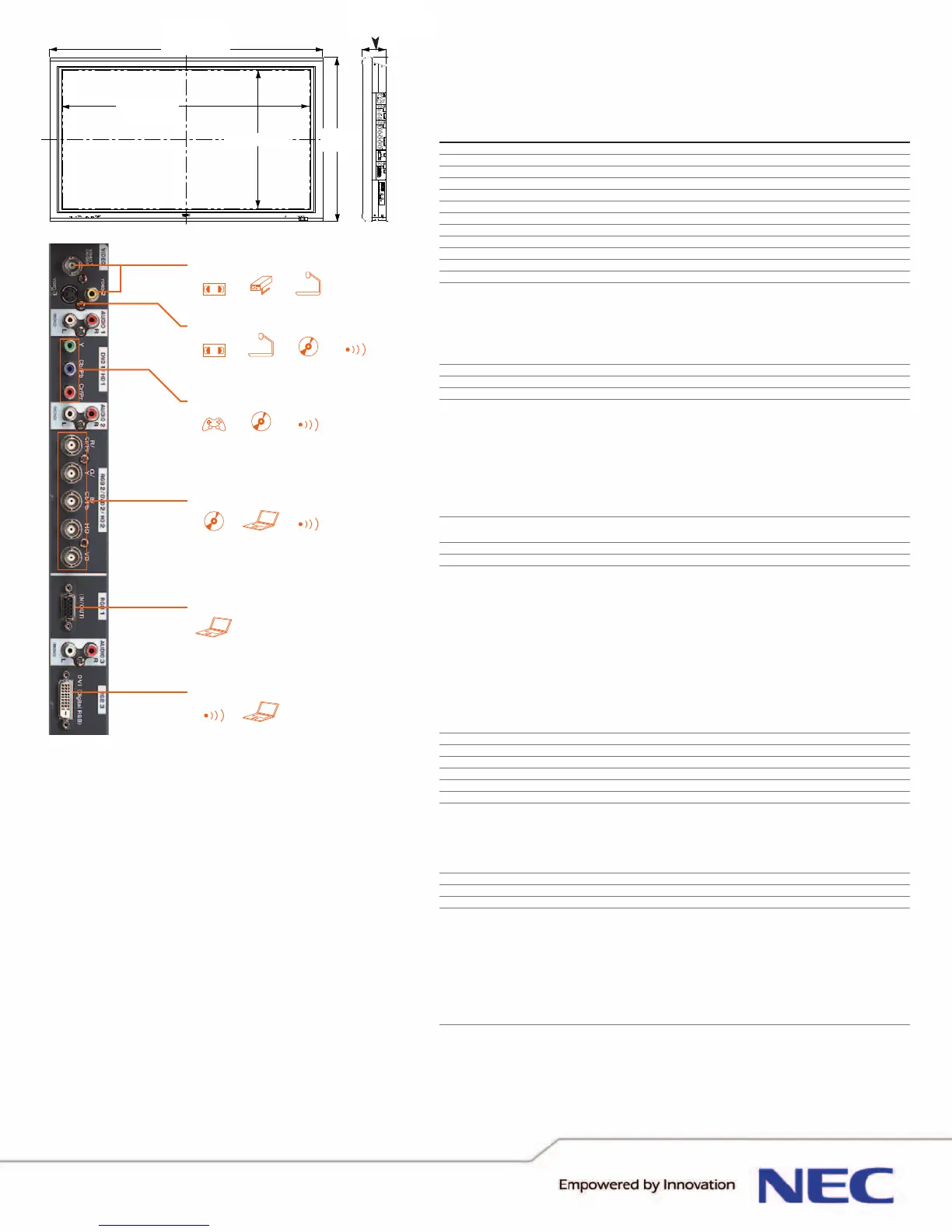

36.3” (921mm)
20.4” (518mm)
24.0”
(610mm)
3.5” (89mm)
40.1” (1018mm)
For more information, call 1.800.NEC.INFO
or visit www.necvisualsystems.com
NEC is a r
egistered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Sys
t
ems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
Service and Support
The PlasmaSync 42XM3 is supported by NEC’s industry leading service and
support pr
ogr
ams. It comes with a standard 1-year manufacturer’s warranty plus
an extended warranty option that provides two additional years of coverage and is
available from your authorized NEC Visual Systems Division dealer.
DVI-D
15 pin
D-Sub
RGBHV/
component
component
S-Video
c
omposite
video
°
°
°
°
°
°
VCR security
camera
VCR DVD
game
system
DVD satellite/
cable
D
VD
PC
PC
satellite/
c
able
PC
document
c
amera
document
c
amera
sat
ellite/
cable
sat
ellit
e/
c
able
Contrast measurements for the real world.
To date, the plasma display market has not followed a consistent standard to
determine contrast ratio with most measurements taken in unrealistically dark
viewing conditions.
NEC takes pride in its contrast measurements, which reflect true-to-life viewing
conditions typically found in environments that would incorporate a plasma display,
such as an office, school, airport, shopping mall or home. By providing plasma
displays that are optimized for “real world” conditions, users are assured more
accurate image depth and detail that is real and not washed out.
NEC is setting the s
t
andar
d for high contrast in real world applications. This standard
is validated by the PlasmaSync 61XM2’s Five-Star DisplayMate Best Video Hardware
Award. According to Dr. Raymond Soneira, President of DisplayMate Technologies,
“The NEC 61XM2 Plasma monitor delivered impressive image and picture quality for
both computer and video applications. Performance in both the laboratory tests and
viewing tests was outstanding. The colors were bright, saturated and an excellent
match to our professional studio reference monitor.”
