4
1. Introduction
Part Names of the Projector

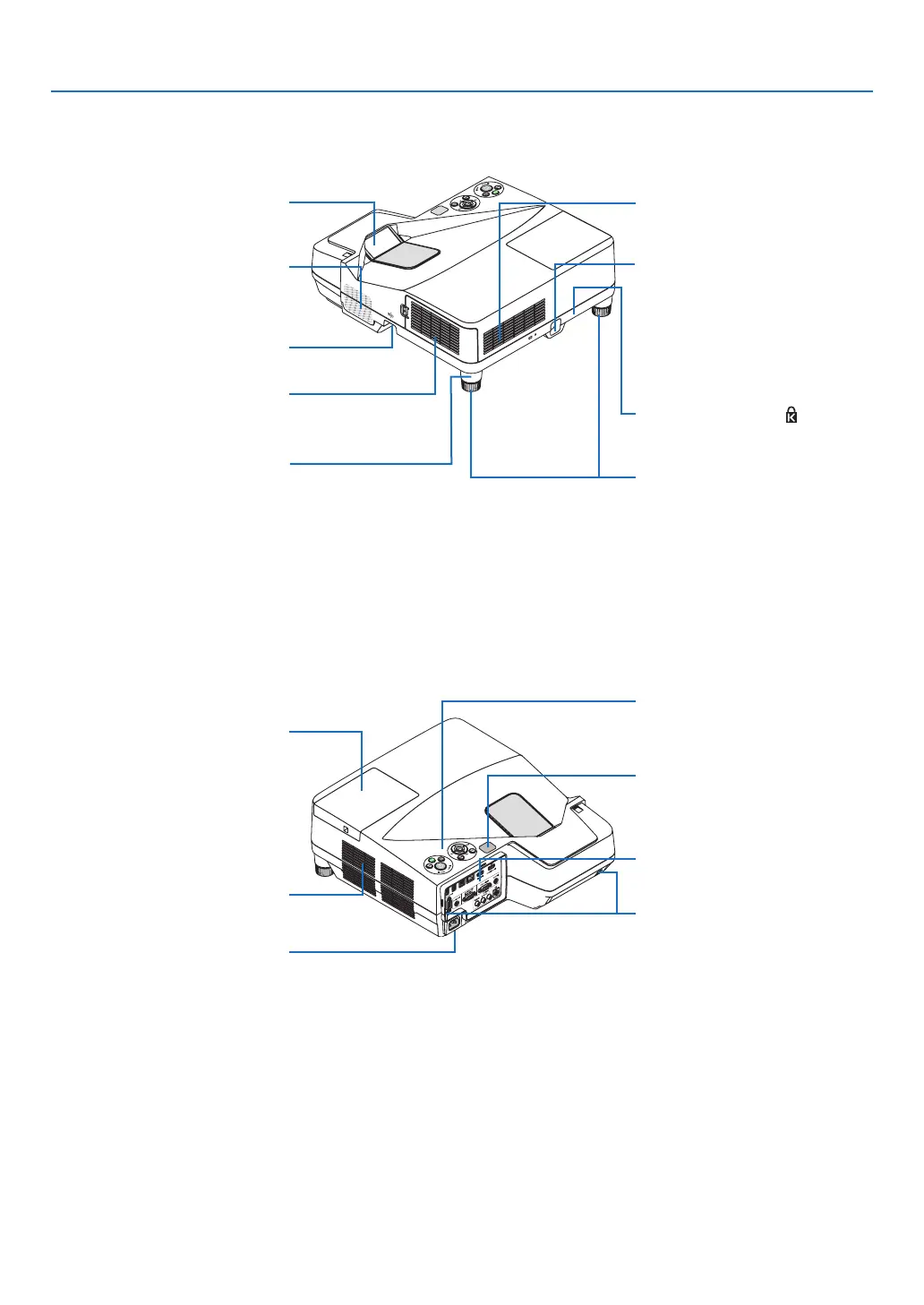

Top and Screen Side of Projector
Controls
( page 7)
FilterCover/IntakeVent/Filter
( page 118, 125)
Spacer (Left/Right)
To fine-adjust the height of the rear
foot, remove the spacer and rotate
the rear foot to the desired height.
( page 19)
Projection Window
Focus Ring
( page 18)
Tilt Foot
( page 19)
Built-in Security Slot (
)*
Lamp Cover
( page 123)
Security chain opening
Attach an anti-theft device.
The security chain opening accepts
security wires or chains up to 0.18
inch/4.6 mm in diameter.
* ThissecurityslotsupportstheMicroSaver
®
SecuritySystem.
MonauralSpeaker(20W)
Terminal Panel ( page 8)
ACInput
Connect the supplied power cord’s
three-pin plug here, and plug the
other end into an active wall outlet.
( page 13)
Remote Sensor
( page 10)
Screw Hole for Cable Cover (Left/
Right)
( page 6)
Terminal Panel Side of Projector
IntakeVent/Filter
( page 118, 125)
Exhaust Vent
