NEC UM361X User Manual

26

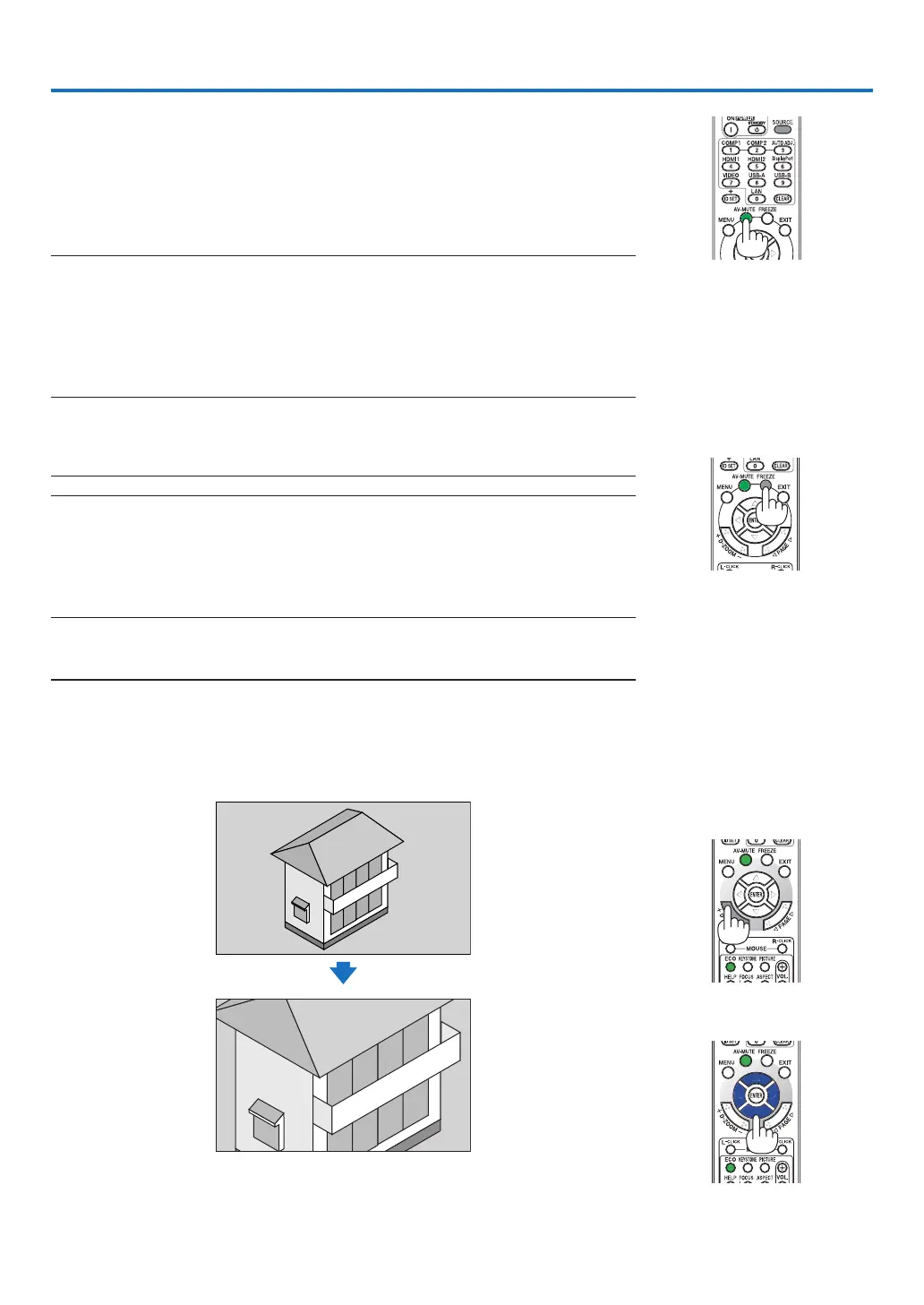

1 Turning off the Image and Sound
PresstheAV-MUTEbuttontoturnofftheimageandsoundforashortperiodoftime.
Pressagaintorestoretheimageandsound.
Theprojector’spower-savingfunctionwillwork10secondsaftertheimageisturned
off.
Asaresult,thelamppowerwillbereduced.
NOTE:
• Eventhoughtheimageisturnedoff,themenustillremainsonthescreen.
• SoundfromtheAUDIOOUTjack(Stereomini)canbeturnedoff.
• Evenwhenthepower-savingfunctionworks,thelamppowermayberestoredtoitsoriginal
leveltemporarily.
• Torestoretheimage,evenifyoupresstheAV-MUTEbuttonimmediatelyafterthestartof
thepower-savingfunction,thelampbrightnessmaynotberestoredtoitsoriginallevel.
 Freezing a Picture
PresstheFREEZEbuttontofreezeapicture.Pressagaintoresumemotion.
NOTE:Theimageisfrozenbuttheoriginalvideoisstillplayingback.
• ThisfeaturecannotbeusedwhenUSB-Aisselectedastheinputterminal.
 Magnifying a Picture
Youcanenlargethepictureuptofourtimes.
NOTE:
• Themaximummagnicationmaybelessthanfourtimesdependingonthesignal.
• ThisfeaturecannotbeusedwhenLAN,andUSB-Bisselectedastheinputterminal.
Todoso:
1. PresstheD-ZOOM(+)buttontomagnifythepicture.
To move the magnified image, use the ,, or  button.
3. Convenient Features

NEC UM361X Specifications

General

Native aspect ratio	4:3
Projection distance	0.448 - 0.854 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	3LCD
Supported aspect ratios	4:3, 16:10, 16:9
Contrast ratio (typical)	6000:1
Screen size compatibility	61.5 - 116 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-10 - 10 °
Focus	Manual
Offset	75 %
Throw ratio	0.36:1
Digital zoom	1.4 x
Zoom capability	Yes
Fixed focal length	4.78 mm
Focal length range	- mm
Aperture range (F-F)	1.8 - 1.8
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Lamp power (economic mode)	160 W
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
3D	-
Full HD	No
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1280 x 960, 1600 x 900, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Composite video in	1
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	3
S-Video inputs quantity	0
Maximum digital resolution	1920 x 1200 pixels
Noise level	29 dB
Certification	CE, Gost-R, TÜV GS
Noise level (economic mode)	28 dB
RMS rated power	20 W
Placement	Desktop
Product type	Ultra short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	324 W
Power consumption (standby)	0.5 W
Power consumption (typical)	257 W
Power consumption (economy mode)	214 W
Power consumption (network standby)	3 W
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	RoHS
Cables included	VGA
Remote control type	IR

Weight and Dimensions

Depth	428 mm
Width	378 mm
Height	112 mm
Weight	5600 g
