2. Installation and Connections
Connecting an External Monitor

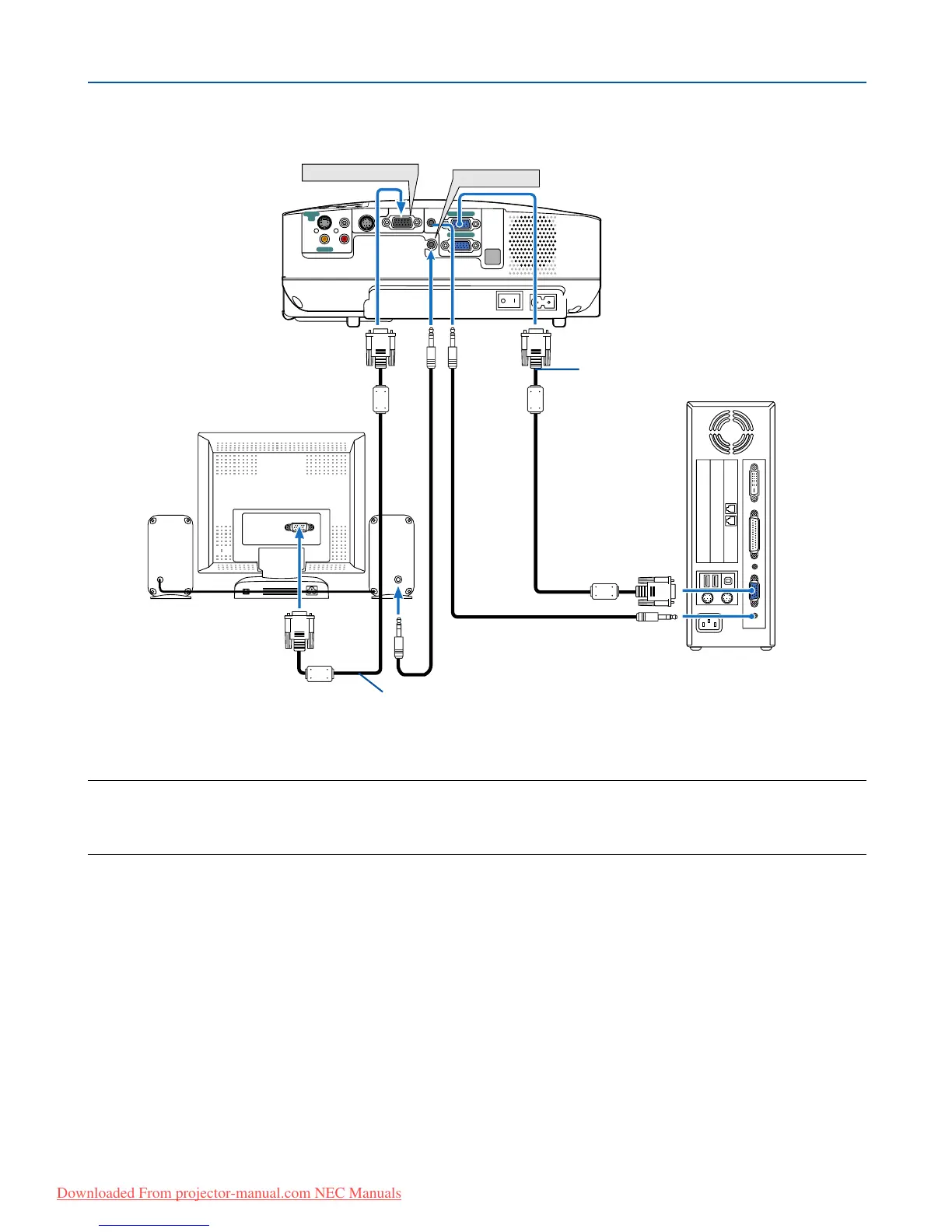

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog
image you're projecting.
NOTE:
• Daisy chain connection is not possible.
• The signal from the COMPUTER 2 IN connector cannot be output from the MONITOR OUT connector on VT580 and VT480.
• The VT58 and VT48 do not have the AUDIO OUT connector.
AUDIO
IN
E
X
I
T
O
N
/
S
T
A
N
D
B
Y
A
U
T
O
A
D
J
.
S
O
U
R
C
E
AUDIO OUT
AUDIO IN
COMPUTER 2 IN
COMPUTER 1 IN
MONITOR OUT(COMP 1)
AUDIO IN
VIDEO IN
PC CONTROL
L
R
S-VIDEO
IN
AUDIO OUT
MONITOR OUT
VGA signal cable (supplied)
VGA signal cable (not supplied)
