NEC VT580 - Connecting Your VCR or Laser Disc Player

17
2. Installation and Connections

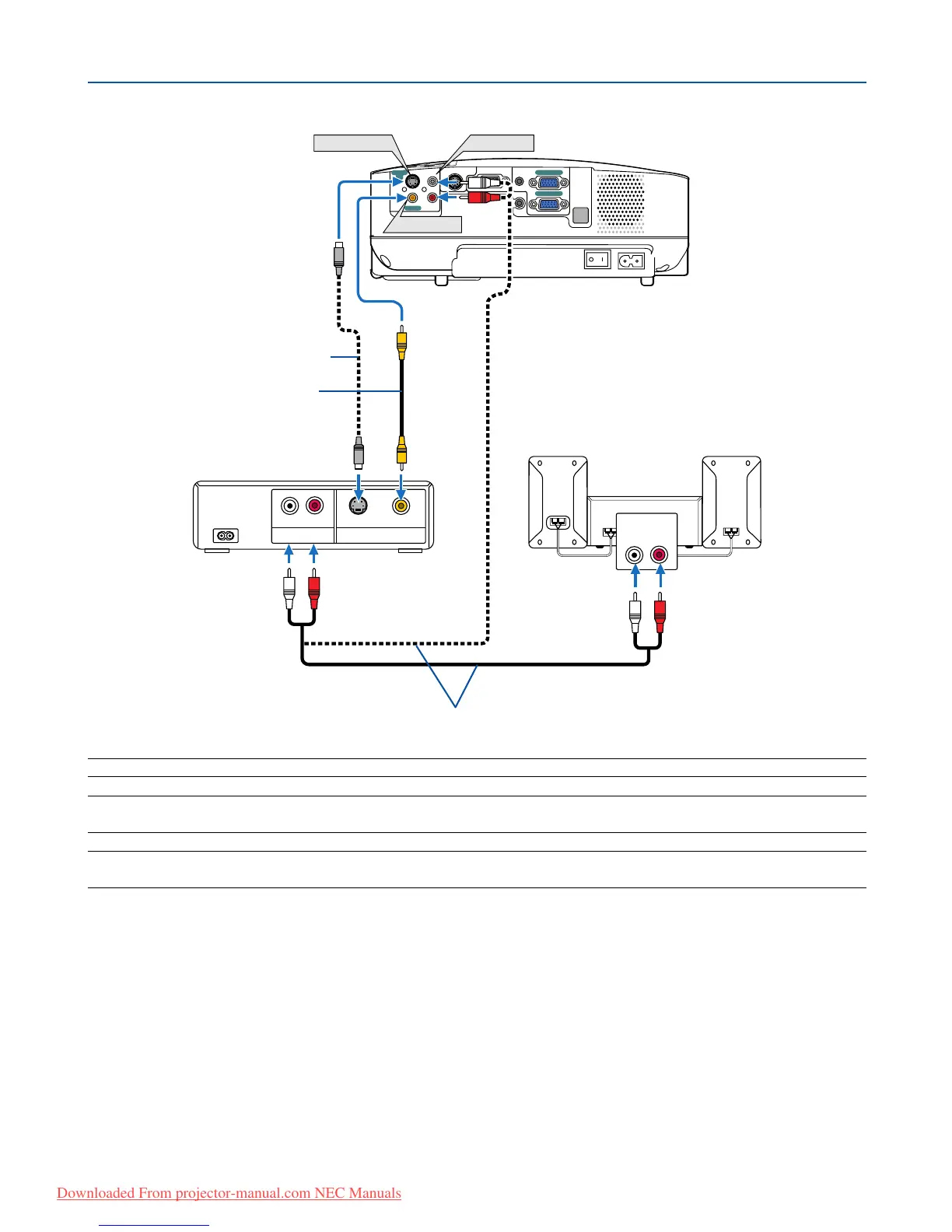

Connecting Your VCR or Laser Disc Player
NOTE: The AUDIO IN L/MONO and R jacks (RCA) are shared between the Video and S-Video inputs.
NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output
requirements.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via
a scan converter.
AUDIO IN
LR
AUDIO OUT
L R
VIDEO OUT
S-VIDEO VIDEO
E
X
I
T
O
N
/
S
T
A
N
D
B
Y
A
U
T
O
A
D
J
.
S
O
U
R
C
E
AUDIO OUT
AUDIO IN
COMPUTER 2 IN
COMPUTER 1 IN
MONITOR OUT(COMP 1)
AUDIO IN
VIDEO IN
PC CONTROL
L
R
S-VIDEO
IN
VIDEO IN
S-VIDEO IN
AUDIO IN
S-Video cable (not supplied)
Video cable (not supplied)
VCR/ Laser disc player
Audio equipment
Audio cable (not supplied)
