TECHNICAL MANUAL “ Brio Easy serving Espresso“
Manual Brio ESE 5 / 17
Push-button board components legend
Ref. N° Description
1 LCD brightness adjustment trimmer
2 Printer connector
3 Programmer device connector
4 Machine board connector
5 Payment system configuration minidip
6 Jp2
7 Control board connector 2
8 Executive serial interface
9 Front validator connector
10 Jp1
11 Coin return lamp
12 NOT USED
13 MDB board power supply
14 MDB coin mechanism connector
15 Programming mode button
CPU board component legend
Ref. N. Description
1 Pressure boiler heating element TRIAC
2 Pressure boiler temperature control trimmer
3 Machine configuration minidips
4 EPROM
5 Jumper
1-2 Instant versions
2-3 Espresso versions
6 JS3 - JS4 EPROM version configuration jumpers

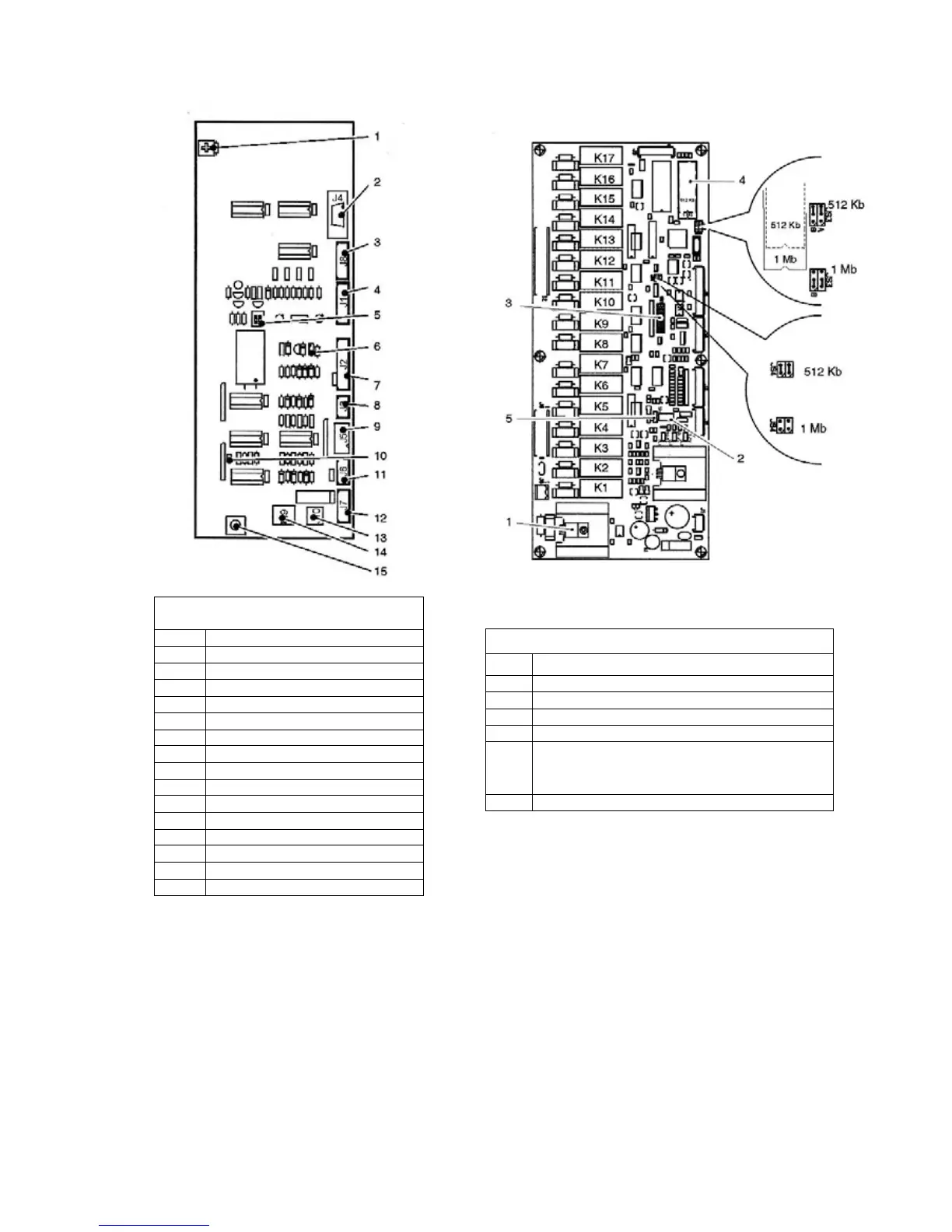

Machine board component layout Push-button board component
la
y
ou
t
JS3
JS4
