ANPR
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 9 of 27
5 CONFIGURATION
5.1 USING THE WEB SERVER
Prior to accessing the ANPR using a Browser, make sure the PC network configuration is coherent with the IP-
address of the device to access. E.g.: if the ANPR IP-address is 192.168.0.21, the PC in use should have assigned
an IP-address belonging to the same class (e.g. 192.168.0.22). See also chapter 2.3 for details about how to assign
an IP-address to the ANPR.

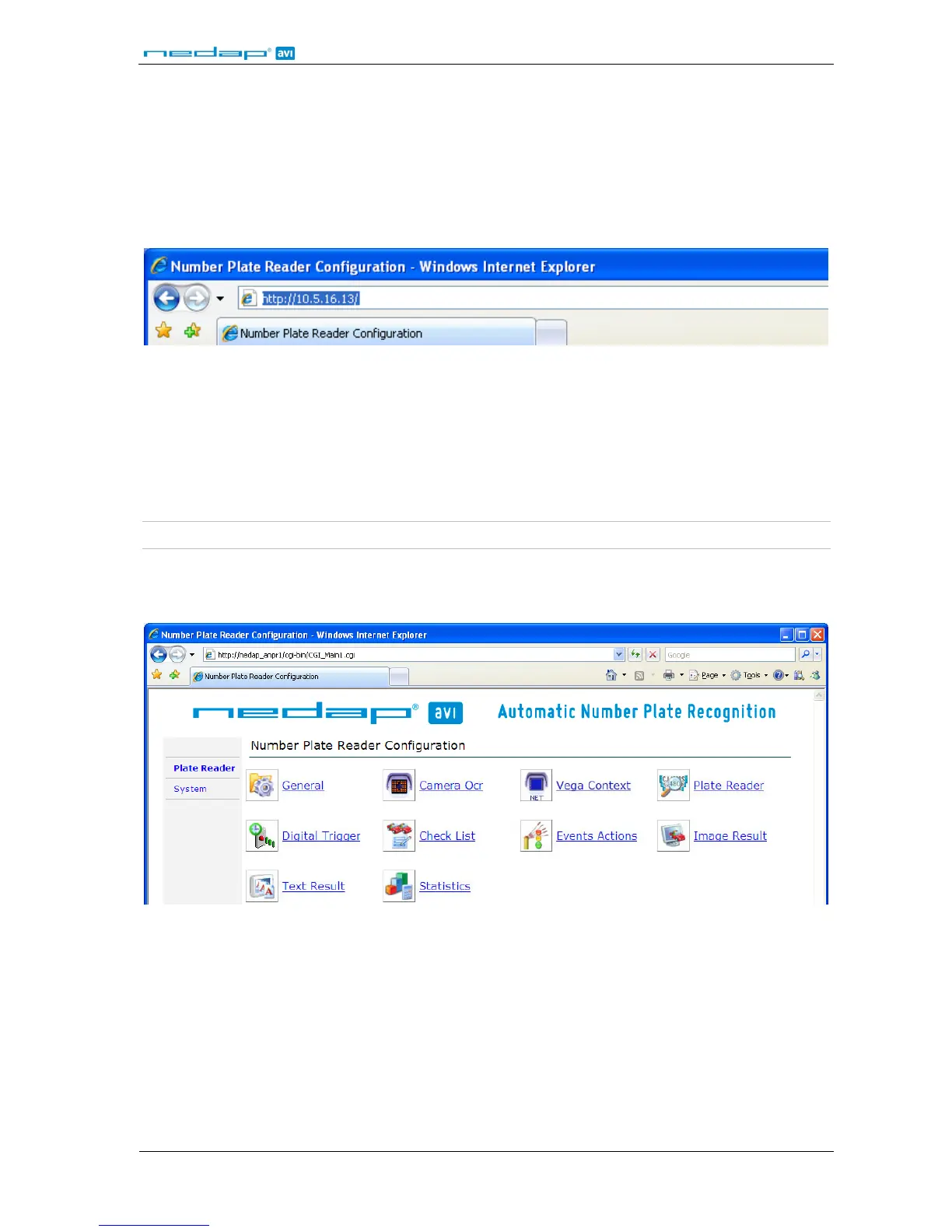

Figure 5: Using the web server
Enter the IP-address (or NetBiosName) in the address bar of your web browser.
The login window appears where the user is asked to type the username and password.
Factory default username and password are:
Username: superuser
Password: superuser
Note: It is recommended, to change the factory default username and password after installation. See chapter 5.3.2.
If the login was successful, the user is now able to access the main menu screen. The main page shows two
sections: Plate Reader and System. Refer to chapters 5.2 and 5.3 for further details.
Figure 6: Web server main menu
