Nedap Cube Card Reader 190 User Manual

Cube card reader 190
SAM cover

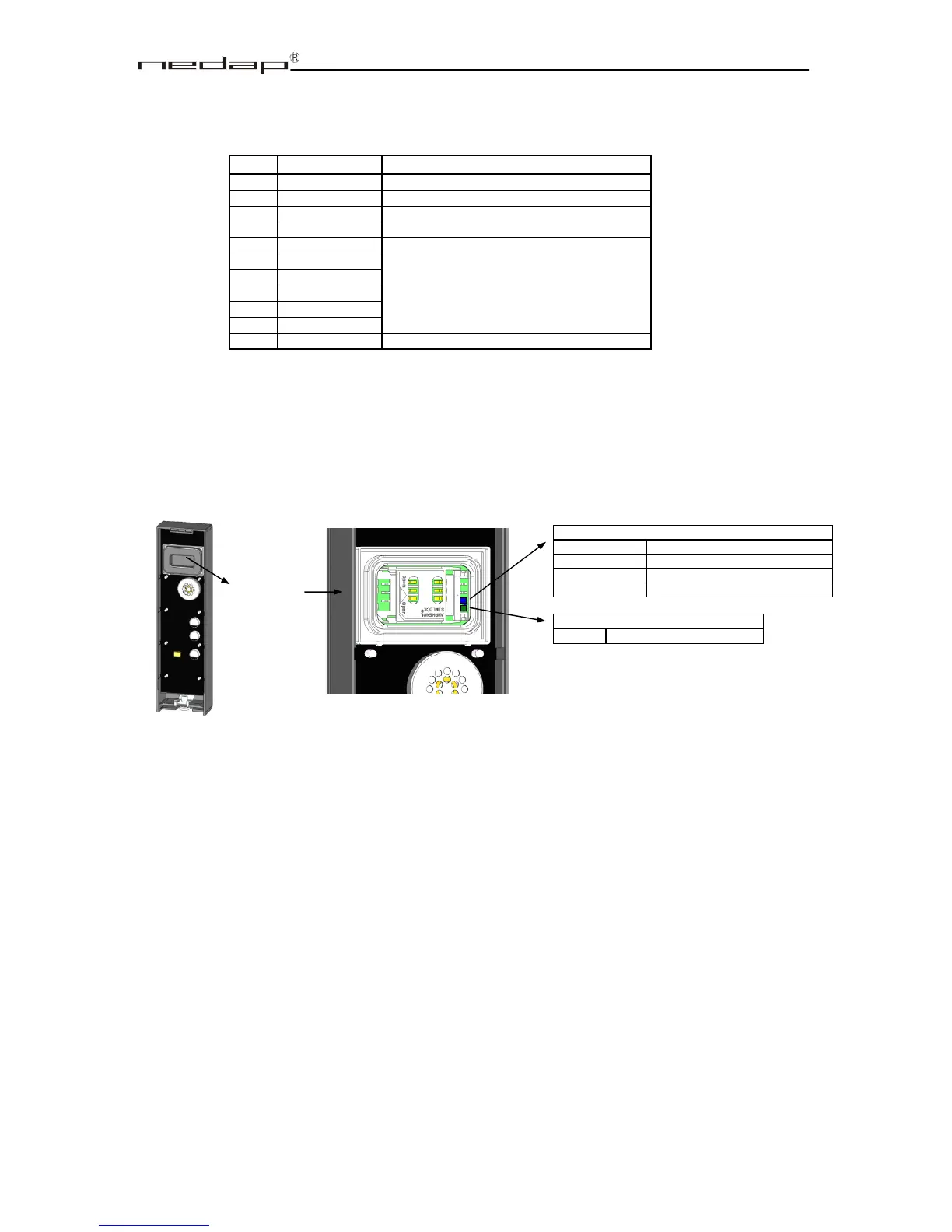

CONNECTIONS
Cube card reader 190 is not hot-swappable, so when making or changing connections, power must be
switched Off.
Remark:
Cable shield (wire 11) must be connected to the metal case of the external device
LED INDICATORS INSIDE / BACKSIDE
There are two LED’s available: Blue for Status (of application), Green for Identification (both visible
behind the SAM cover at the back side)
Wire Colour Function
1 Red Power in (12-30VDC)
2 Black Power Ground
3 Grey RS485 A (-)
4 Violet RS485 B (+)
5 Green
Do not connect
Reserved for future use
6 White
7 Yellow
8 Pink
9 Blue
10 Brown
11 Shield / Metal EM shield (connected to power ground)
ID (green)
Blinking Card detected
ST: STATUS (blue)
Slow blinking Application running (operating)
Fast blinking Downloading or error during loading
2 short flashes Application present but not active
3 short flashes No application present
