3.5.2 READ DISABLE INPUT
The reading of the TRANSIT Entry can be completely disabled with the RDIS input.
This input is commonly used in combination with a sensor (e.g. inductive loop) that
detects the presence of a person or vehicle. Use always a relay contact to connect
the internal 5V to the RDIS input. When the RDIS input is unused the reader is
enabled.
Connections
RDIS
Read disable input
5V
Internal 5V source for read disable input
Warning: Using an external 5V supply can damage the unit.

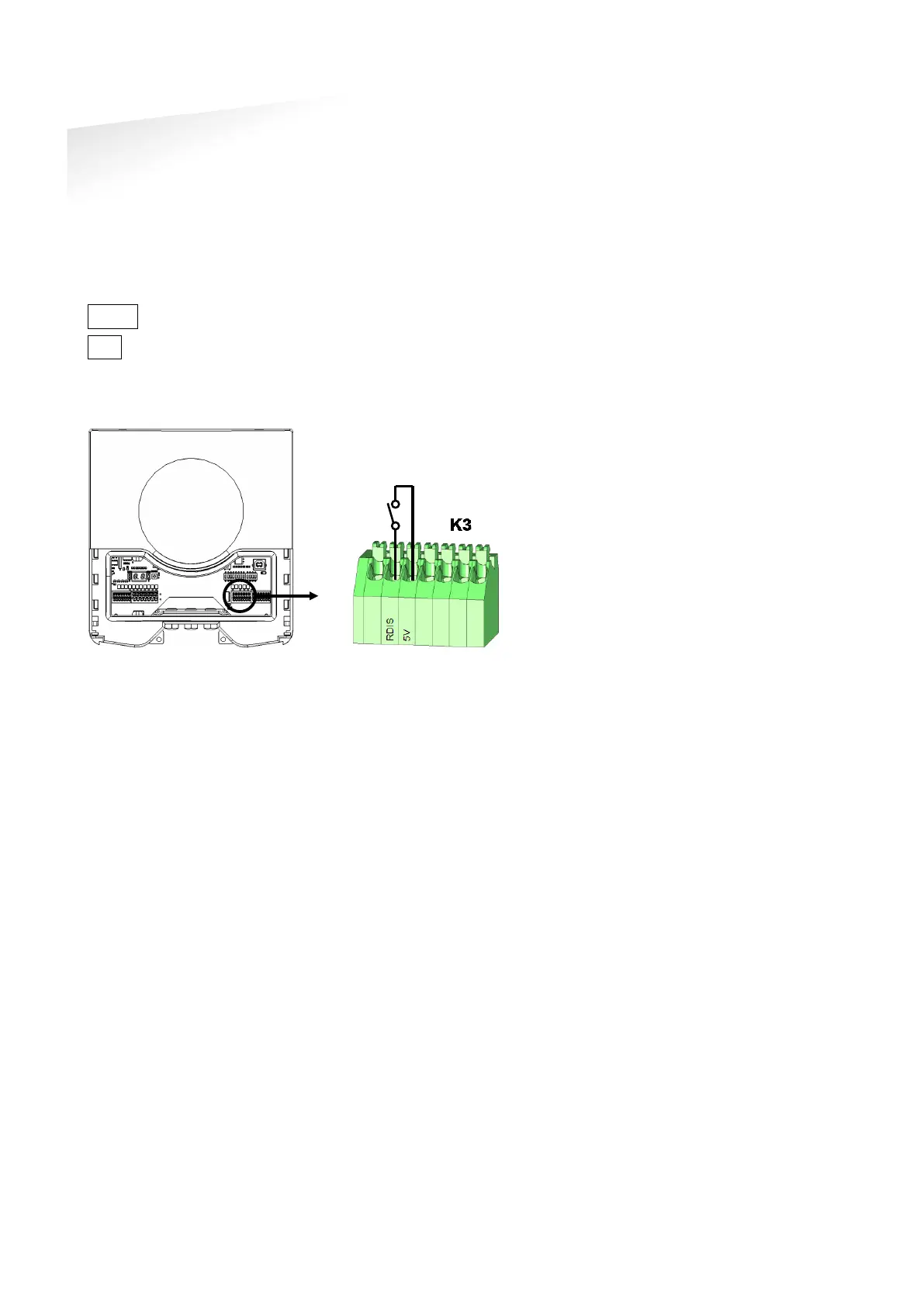

Figure 15: Read disable input
