TRANSIT ENTRY | INSTALLATION GUIDE
Connections
18/30
3.5.5 TAMPER SWITCH
An internal magnet provides tamper indication when the service cover is opened.
This contact may be connected to an external alarm system. The contacts are
normally closed when the cover is in place.
Tamper switches of multiple TRANSIT Entry reader may be connected in series.
Connections
NC Tamper switch (normally closed)
COM
Tamper switch (common)
Contact ratings:
Max. current 50 mA (0.5 Volt voltage drop)
Max. switching voltage +24 VDC

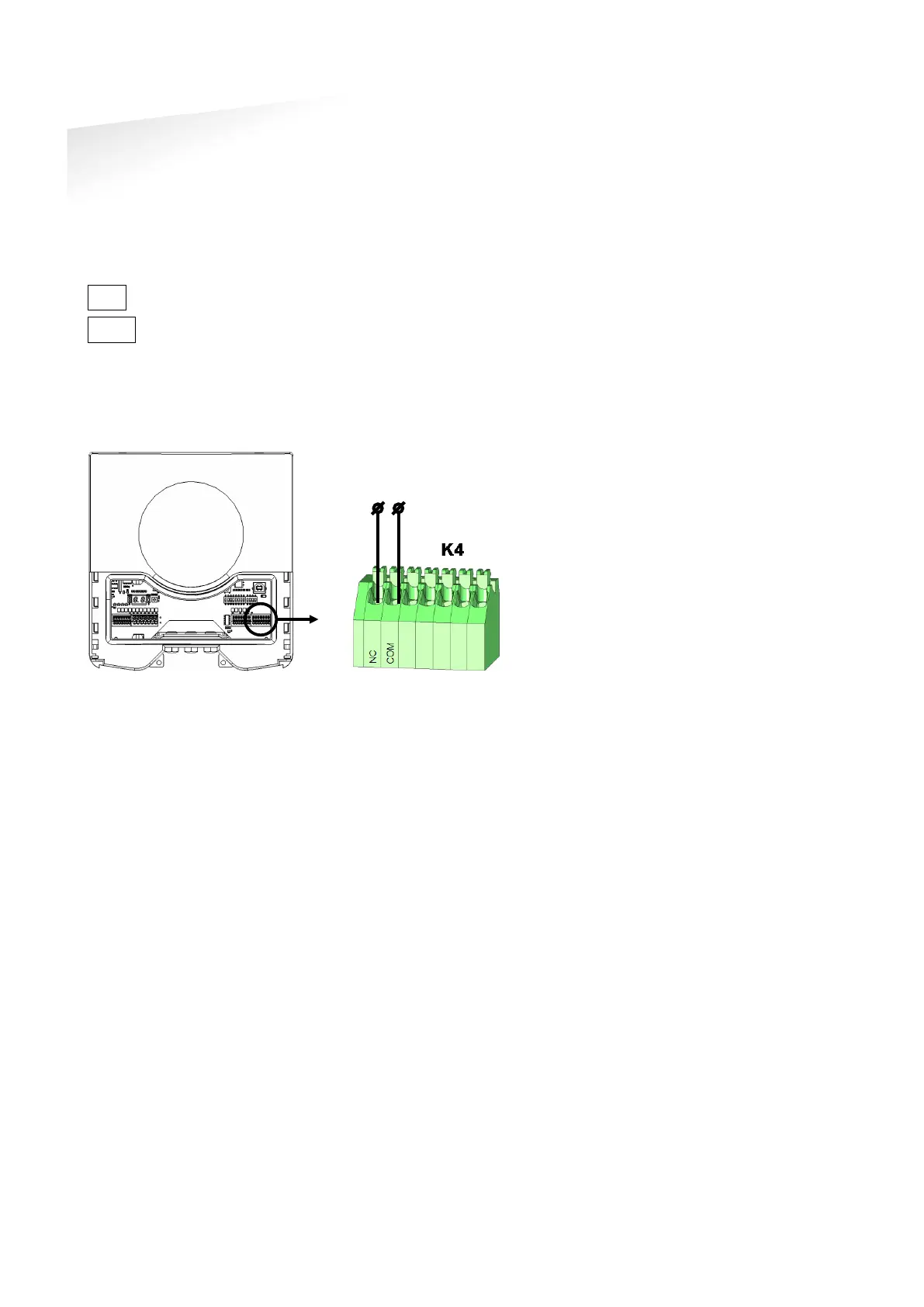

Figure 18: Tamper switch
