Nedap WIM User Manual

WIM | INSTALLATION GUIDE
Introduction
3/20
1 INTRODUCTION

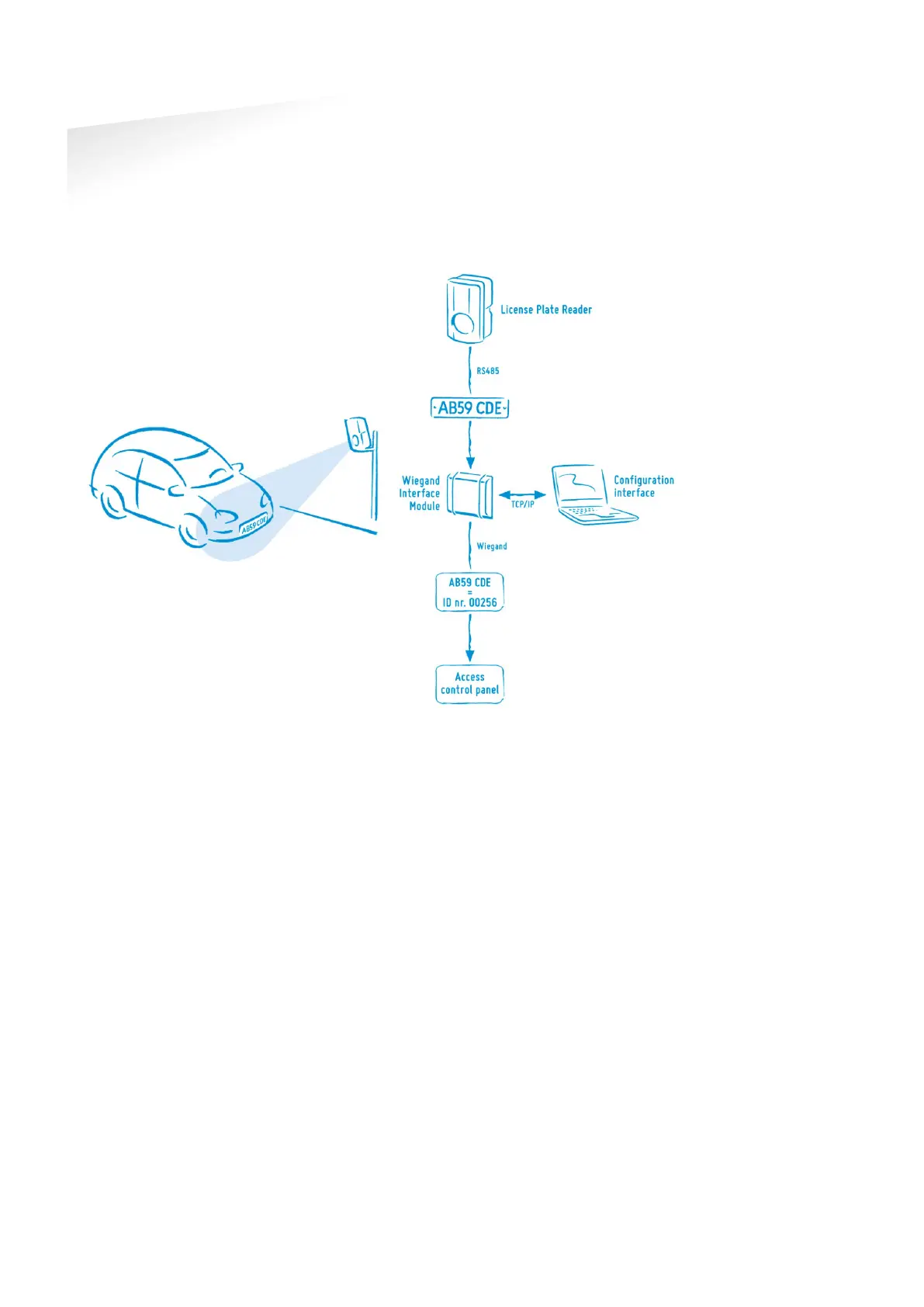

The Wiegand Interface Module (WIM) is developed to be used in combination with
the License Plate Reader. The WIM will convert the license plate string into a
Wiegand output message. The Wiegand interface is supported by many access
control systems.
1.1 KEY FEATURES
• Converts a license plate into a Wiegand output message.
• Output in magstripe or barcode format is also possible.
• Easy integration into existing access control systems.
• Easy user configuration.
• Contains a match-list in which license plates and corresponding Wiegand
output numbers are found.
• Supports a sophisticated algorithm to convert license plates into "unique"
Wiegand output numbers.
• RS485 interface to connect the NEDAP ANPR license plate reader.
• LAN – TCP/IP interface to configure the device and manage the match-list.

Nedap WIM Specifications

General

Brand	Nedap
Model	WIM
Category	Control Unit
Language	English
