5.3 WIEGAND MATCH-LIST MODE
In the Wiegand match-list mode, every received license plate message is searched in
the match-list. If the plate string is found, then the corresponding Wiegand output
message will be transmitted. If the plate string is not found, then no Wiegand output
is generated. Optionally a defined Wiegand output message can be transmitted
when no match is found.
The match-list or match-list XL mode is selected with the dip-switches.
Read/search speed 133µsec / plate
max = 130µsec x 1008 =
8µsec / plate
max = 8µsec x 20480 =
The match-list is managed through the LAN interface. This can be done using the
WIM_List software.

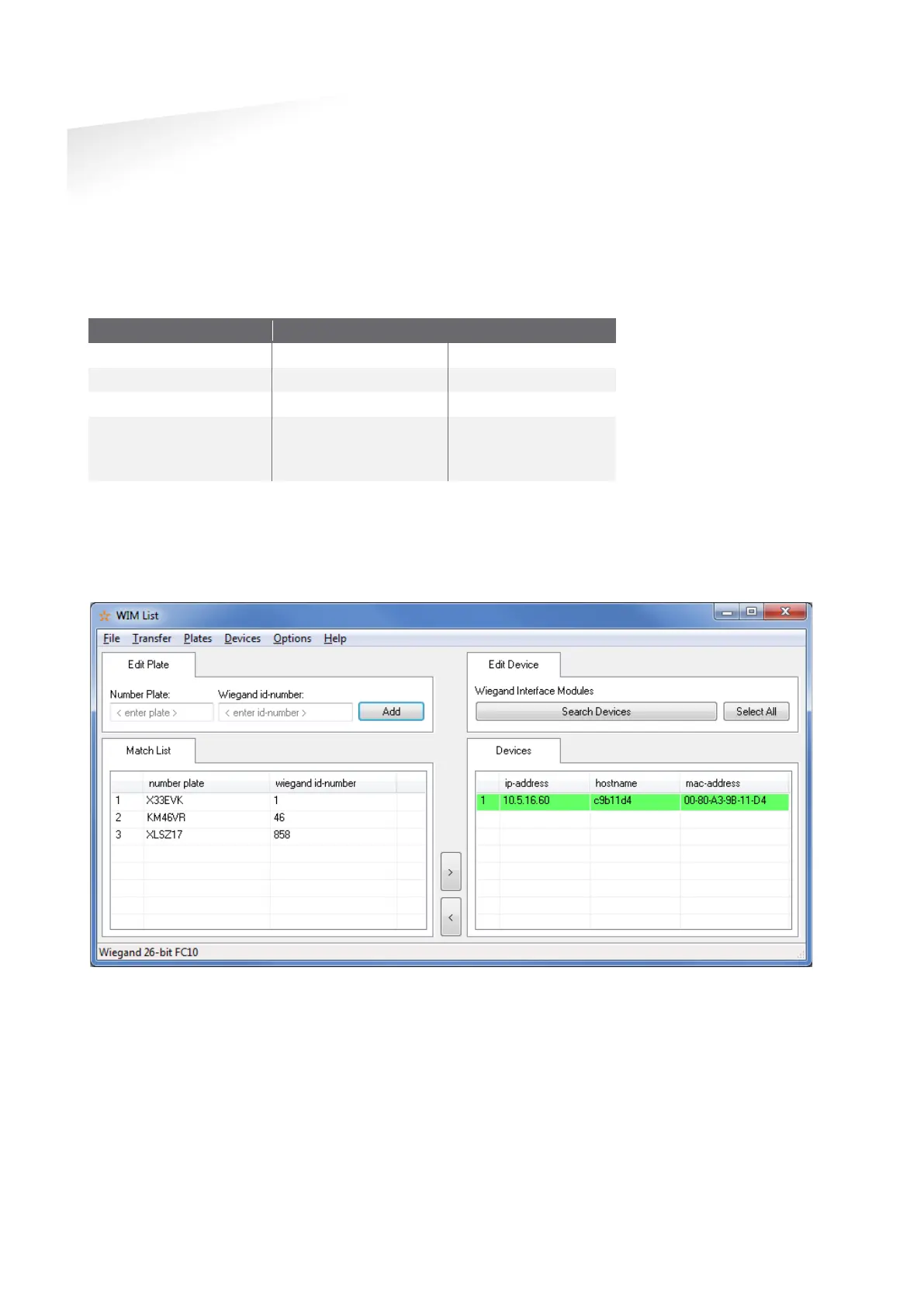

See below a screenshot of the WIM_List software.
Figure 5: WIM_List software screenshot
The WIM_List software shows on the left side the match-list. New plates and
numbers can be added to the list. Remove plates by using the popup menu or
pressing the delete key. To view or edit the special plates or the Wiegand output
format, it is required to select the Expert user mode.
On the right side the devices (Wiegand Interface Modules) are shown. Click the
Search button to scan for devices. System administrators and installers require user
mode Expert to configure the devices (e.g. assign an IP address).
Click the transit ('>') or receive ('<') button to synchronize the match-list with the
