Nederman FilterMax DX can be installed indoors or outdoors.
It should be located with consideration for the following:
• High surface temperatures as a result of possible radiation
heat should be avoided.
• Easy handling and emptying of the dust collector.
• Convenience of service and maintenance.
Nederman FilterMax DX is usually installed on a reinforced
concrete foundation. However, installation on another
structure is also possible. When calculating for foundation or
supporting structure the following factors should be taken into
consideration (see technical data):
• Total weight of FilterMax DX
• Traction forces at explosion relieve
• Max. weight of collected contamination
• Possible wind load
• Possible snow load
IMPORTANT! Location must be clear of all obstructions
such as utility lines etc. Pay particular attention to the
anchor bolt location (see Dimensions next page). The traction
force, which the bolts must stand up to, can be found in the
document "Dust Application Description" which comes with
the product. If you intend to secure the unit by using expan-
sion bolts or equivalent fittings, the concrete floor must be
prepared accordingly.
The deflector must be designed and
mounted in a way that makes it possible
to be proof against an explosion.

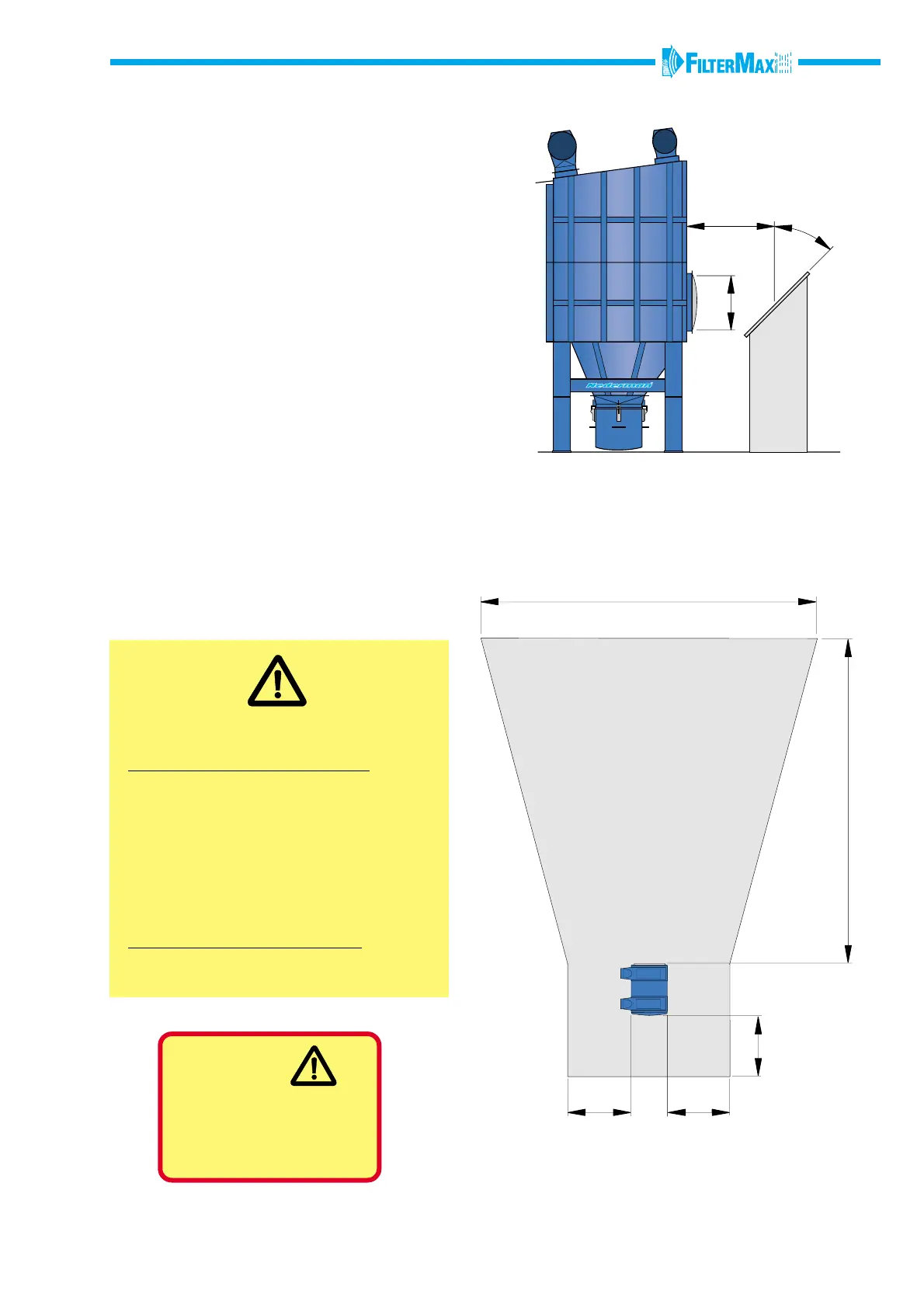

1,5 D
D
45°
PRE-INSTALLATION
A = approximately
height of FilterMax DX
A
A
A
Width according to the document
"Dust Application Description"
Length accordin to the document
"Dust Application Description"
View from above
DANGER!
Explosion risk!
Risk for grave personal injury!
During operation the roped-off area
must only be entered by operators
and service technicians to the
FilterMax DX.
Warning Sign example which can
be used to mark the risk area.
FLAME AND PRESSURE RISK AREA
WARNING!
Explosion risk! Risk for grave personal
injury and/or damages!
FilterMax DX SR - side reliefed models
A risk area around the FilterMax DX must be
marked in an obvious way, for example with a
fence and warning lines and signs. Within the
risk area no inflammable material must be found.
When the FilterMax DX is in operation the risk
area must only be entered by operators och
service technicians. To reduce the risk area
it is possible to fit a deflector, angled 45° in
front of the relief sheet.
FilterMax DX TR - top reliefed models
Make sure that no inflammable material is
found above the FilterMax DX.
