Nederman FilterMax DX Series User Manual

7
0
1
Utlopp
Inlopp
WARNING!
Risk of personal injuries
and/or product damages!
Use approved lifting equipment for unloading,
assembly and installation of the units.

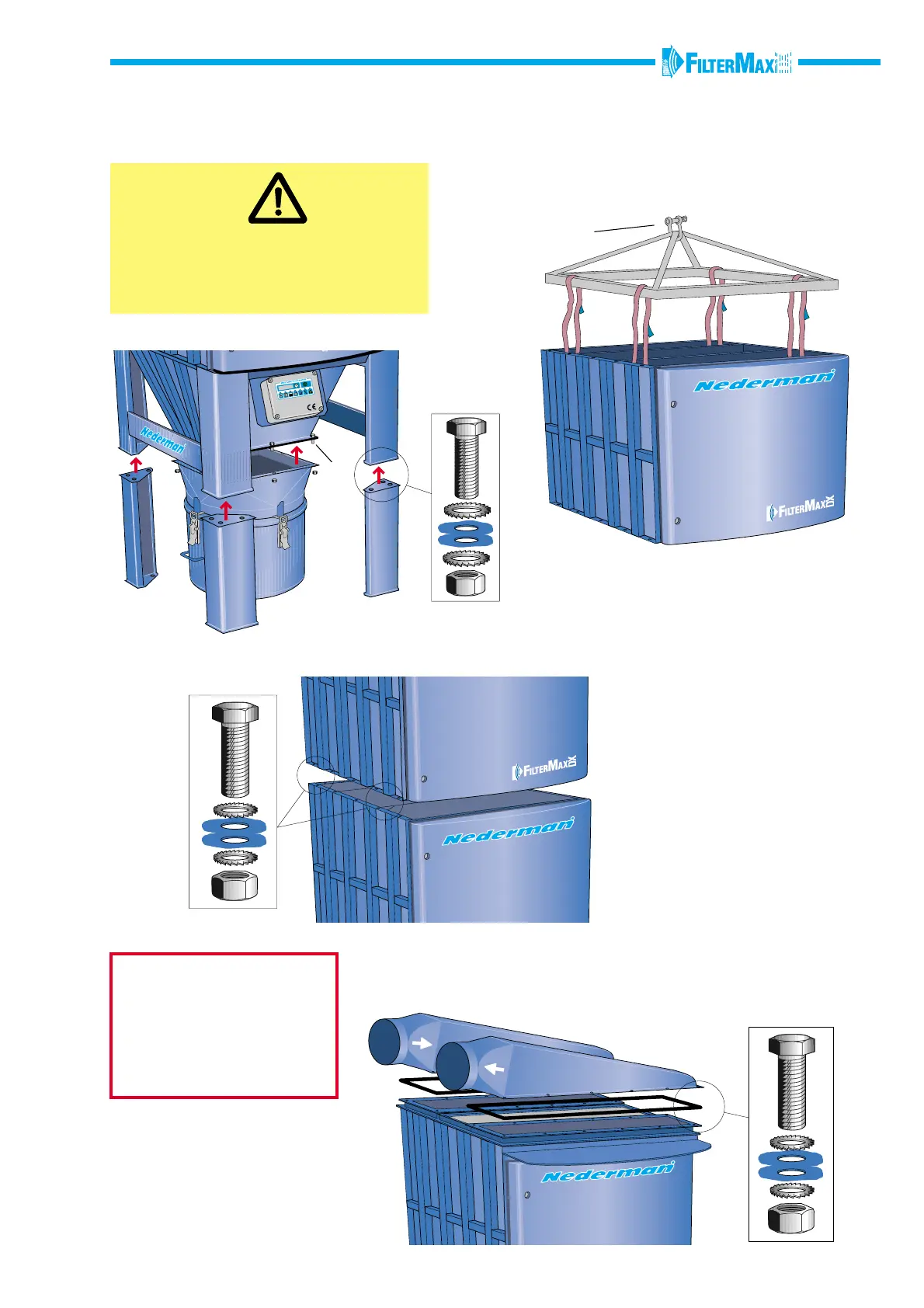

MOUNTING INSTRUCTION
0
1
x 3
M16 x 40
M10 x 35 x 8
M12 x 35
x 34
M10 x 35
x 12
1. Mounting the dust collector
and extension legs.
3. For FilterMax DX 6000 and 9000 two
and three filter units are used respectively.
Mount the units together to build the
complete filter unit.
4. Fit the inlet and outlet.
IMPORTANT! The inlet as well
as the outlet must be electrically
connected to the duct system
and the filter house.
NB! The inlet and outlet are reversable
and concequently they can be positioned
for duct connection on the
right or left side of
the filter.
Use a schackle,
not a hook.
Fit the lifting loops around the strengthening
tubes in the filter unit. Use a lifting yoke, as
shown in the picture, which allows the lifting
loops to come near the outer
edges of the unit.
2. FilterMax DX is usually
anchored to a concrete foun-
dation with expansion bolts or
similar. Fit the fixing bolts and
use if necessary adjusting pieces
to get the filter unit in level.
Check with a spirit level.
For more stabilty, the filter unit
can be braced against the wall.
IMPORTANT!
Ensure that the inlet, outlet and
all filter units always are mounted
together with screws in all inten-
ded holes. Always use toothed
washers which make electrical
connections possible.
