10 Technical Specifications
10.1 Specifications
Specifications
NCD+™ Contact Gun
Weld Mode
Contact CD
Gap Mechanism
N/A
Spring Pressure
7 lb. (3.2 kg) – 15 lb. (6.8 kg)
Pressure Control
Stepless Tool Adjustment
Gap Control
N/A
Front Ends
Adjustable, Tripod, Spark Shield
Max Stud Length
Depends on Accessories
Dimensions without Cable
6-5/8” x 1-1/2” x 5-1/2”
(169 mm x 38 mm x 140 mm)
Weight without Cable
2.2 lb. (1 kg) Max
Cable Length
19 ft. (5.8 m)
Control Cable Connector
12 Pin Binder
Power Cable Connector
Medium Size Dinse
Maximum Gap
N/A
Stud Capacity (max)
1/4" flanged (NCD+ 1000), 5/16” unflanged (NCD+ 1600),
3/8” (NCD+ 3200)
Storage Temperature (°C)
-5°C to 50°C (23°F - 122°F)
Operating Temperature (°C)
0°C to 40°C (32°F - 104°F)
IP Rating
20
Stud Placement Tolerances
+/- 0.010 (0.250 mm)

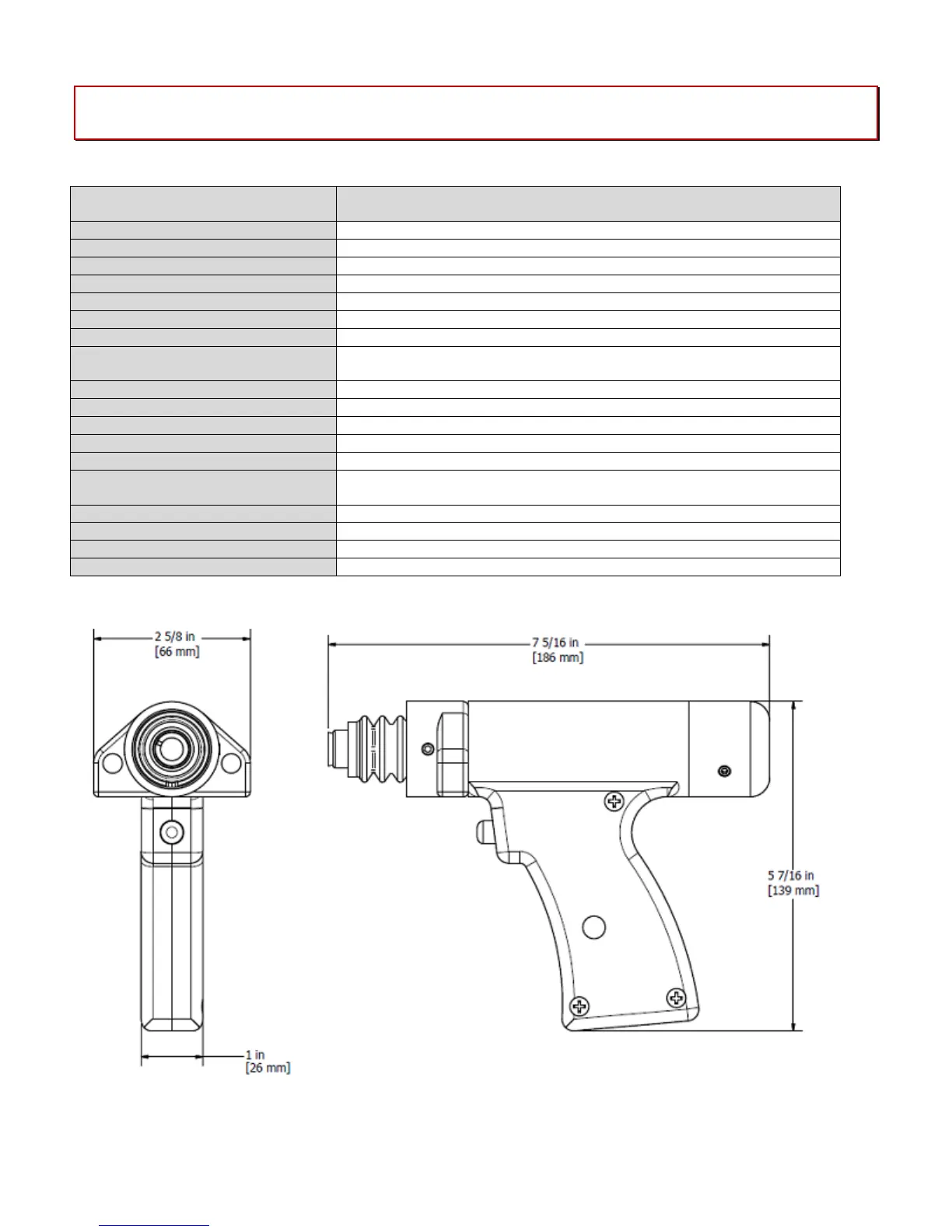

10.1.1 Gun Dimensions
