Nemaxx P6 - Structure Instruction

5
Version: 9a
13.11.2018
EN
3. STRUCTURE INSTRUCTION

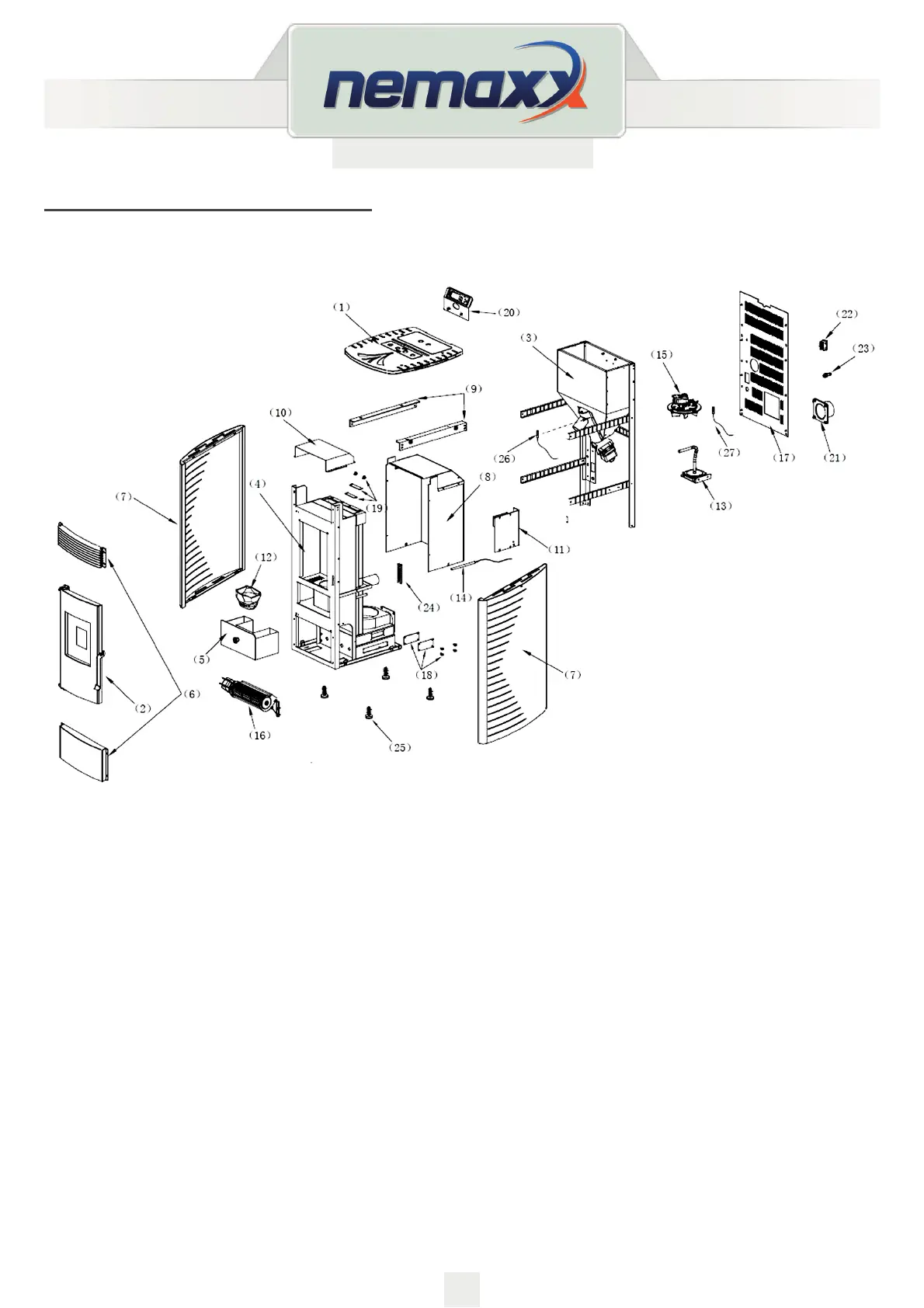

The stove is mainly made up of following items:
1. Top covers
2. Door
3. Pellet Hopper
4. Pellet Chamber
5. Ash Drawer
6. Front Top and bottom cover
7. Side Panels
8. Chamber Insulation cover
9. Shoulder
10. Hot wind driver
11. Motherboard
12. Fire pot
13. Vacuum Switch
14. Igniter
15. Combustion fan
16. Blower
17. Rear Cover
18. Bottom Clear cover
19. Top clear covers
20. Display
21. Exhaust connection
22. Power input socket
(contains the main fuse)
23. Room temperature sensor
24. Handle
25. Stove Feet
26. Safety temperature sensor
27. Exhaust temperature
sensor
