Network Camera Installation Manual

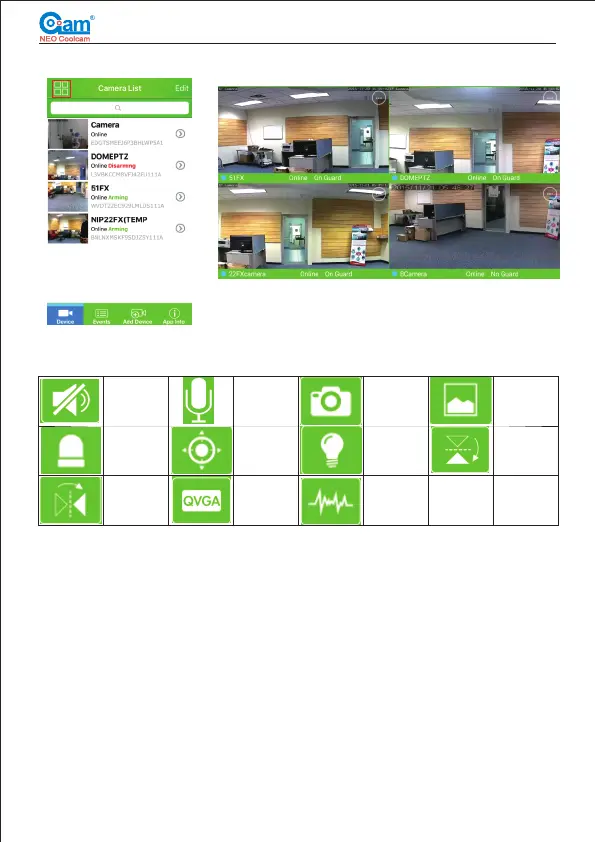

Control icons explained.
monitor/
intercom
talk
Snapshot
Record
Video
alarm
switch
preset
position
switch
Infrared
lamp switch
flip top to
bottom
Flips
around
resolution
current
setting
Monitor/intercom – Listen to the audio of the camera.
Talk – Talk back to the camera for two way audio
Snapshot – Take picture of the screen and store on camera's memory.
Record – Record video of the live view and store on camera's memory.
Alarm on – Turn on alarm.
Preset – Tap on the icon to point the camera to preset position.
Set position on pan and tilt camera by pressing and hold for 3 seconds.
IR light – Turn on IR LED light.
Up-down flip – Flipping image upside down.
Right & left – Used in pan and tilt camera for moving camera right and left.
VGA – Resolution settings; QVGA, VGA, 720P(only for HD camera),
1080P(only for 1080P camera)
Environment mode - Set 50Hz (Europe) or / 60 Hz(USA)
Fig 3.2a
Fig 3.2b
3.2 Multi view screen
