NEOPAC 08 - Dimension Data and Wiring; Model Dimension Values Table; NEOPAC06 Wiring Diagram

NeoPAC
- 51 -
Model NEOPAC06 NEOPAC08 NEOPAC10 NEOPAC12 NEOPAC15
A 567 620 620 752 752
B 936 1006 1006 1025 1025
C 322 342 342 413 413
D 582 612 612 640 640
E 330 330 330 380 380
F 260 310 310 430 480
G 105 105 105 95 95
Wiring diagrams

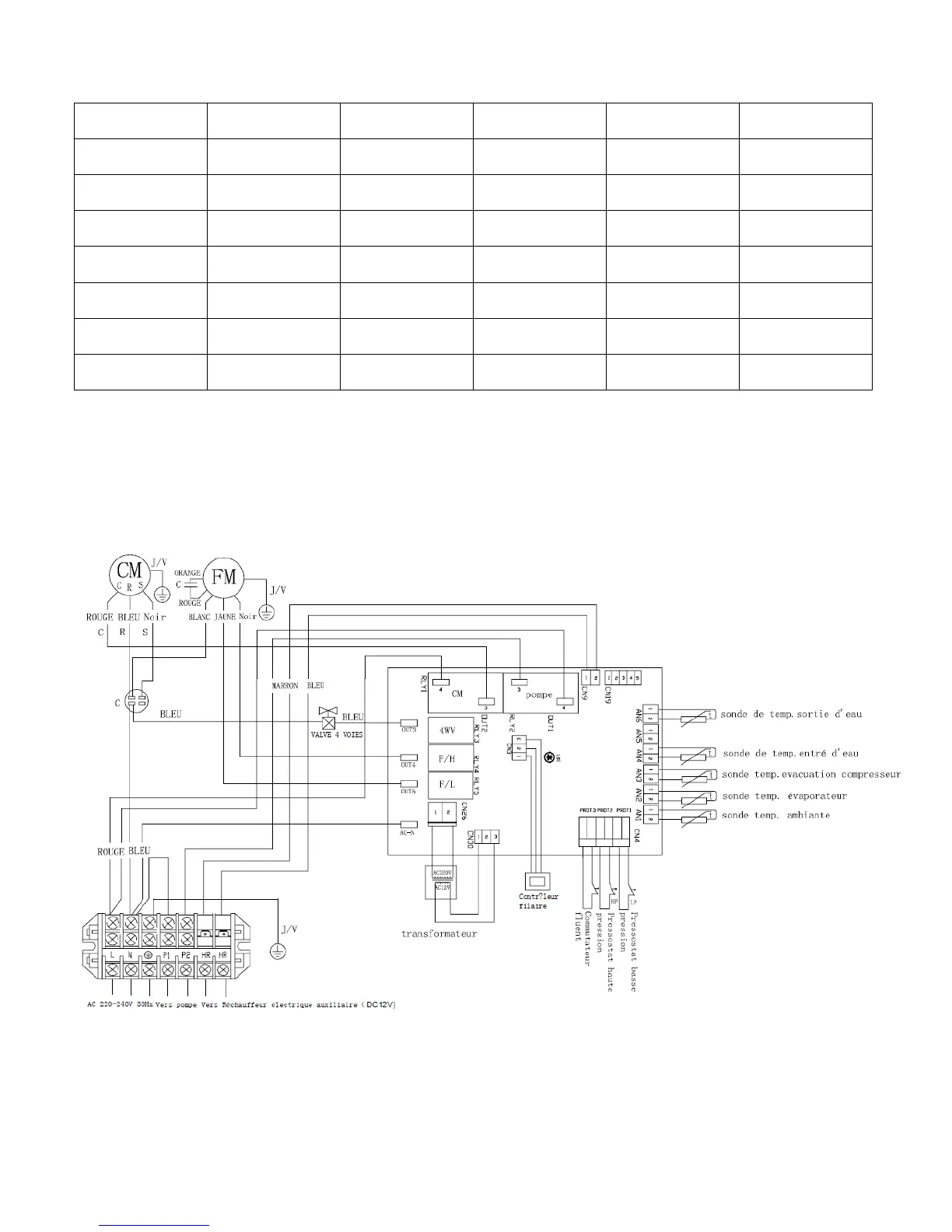

NEOPAC06
