Nepagene ELEPO21 - Control Panel Layout and Windows

3 Part Names
3-2

Control Panel

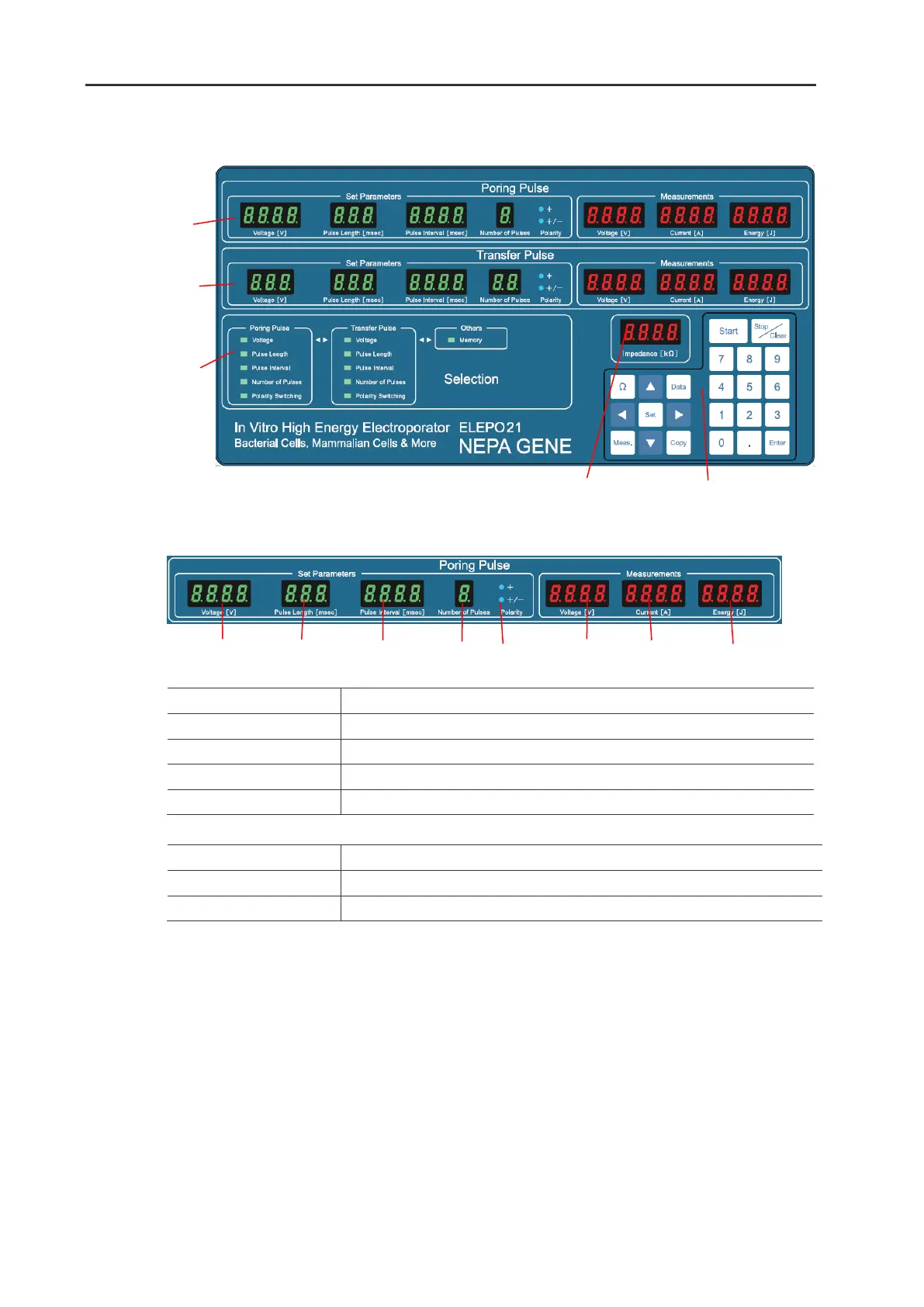

1. Poring Pulse window
Set Parameters frame
A. Voltage [V]
Display the set pulse voltage value.
B. Pulse Length [msec]
Display the set pulse length in milliseconds.
C. Pulse Interval [msec]
Display the pulse interval (duration between pulses) in milliseconds.
D. Number of Pulses
Display the number of set pulses.
E. Polarity [+ / +/-]
Display the set decay rate of pulses.
Measurements frame
F. Voltage [V]
Display the measured output voltage value.
G. Current [A]
Display the measured output current value.
H. Energy [J]
Display the calculated output pulse energy in joules.
4
1.
2.
3
5.
A
B
C
D
E
F
G
H
