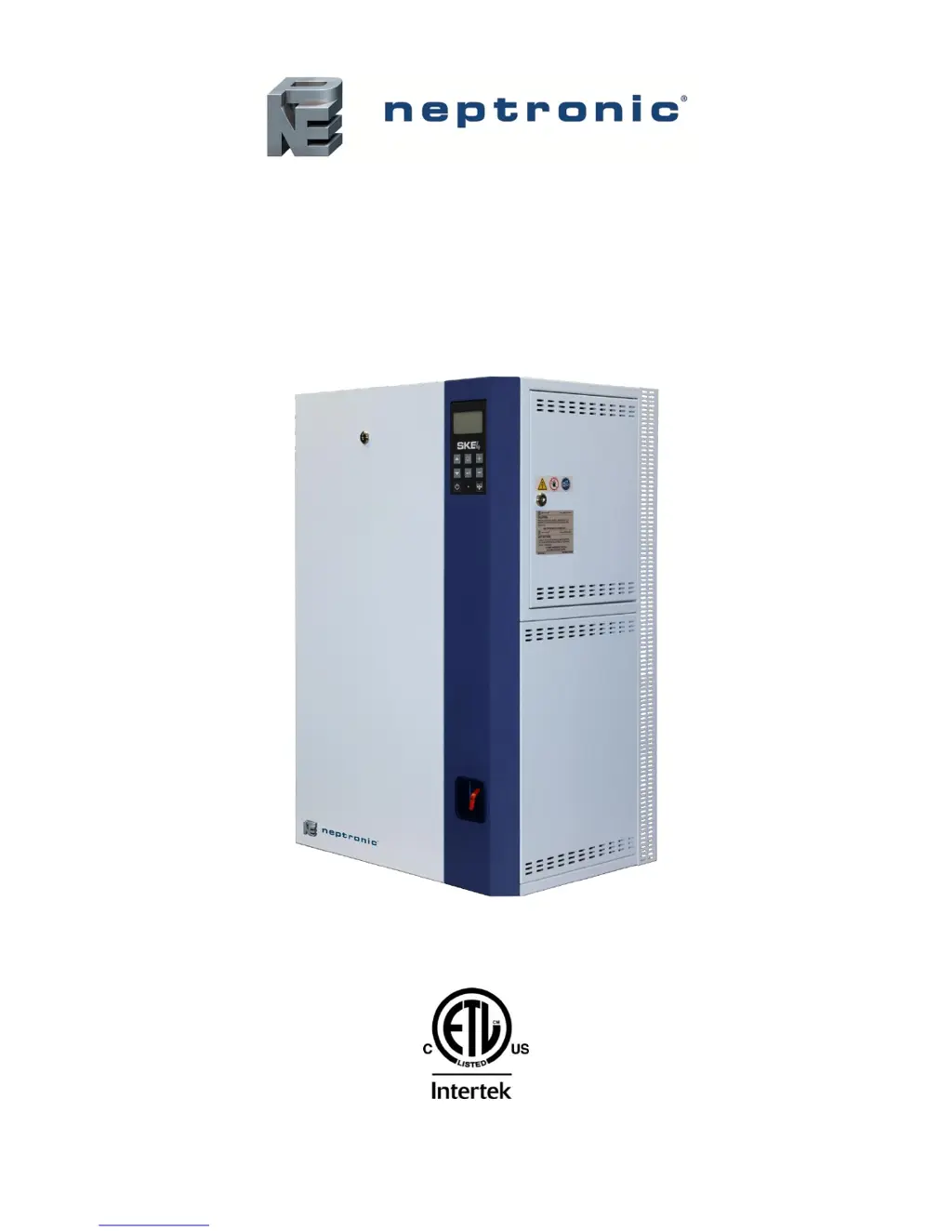

Neptronic SKE4-N02 - User Manual

Questions and Answers

L
Latoya MooreJul 31, 2025
How to fix a Neptronic SKE4-N02 that is not producing steam?
- S
  Stephanie MoodyJul 31, 2025
  If your Neptronic Humidifier isn't producing steam, here's what you can check: * For modulating humidifiers: Verify the setting of the control input, as there may be no analog signal detected. * For On/Off humidifiers: Verify the setting of the humidistat, as there may be no demand from it. * Check the fan operation, as airflow might not be detected by the air pressure switch. * Check the operation of the high limit humidistat, as it might be open. * Check the interlock contact, as it might be open. * Verify the connections of the wires to the control terminal blocks, as control wires might not be properly secured.
B
bryantrachaelAug 5, 2025
What does it mean if the Status Display LED is Red and ThermalCutout setting displays Open on Neptronic SKE4-N02?
- P
  Pamela WeaverAug 5, 2025
  If your Neptronic Humidifier is not operating and the Status Display LED is red, with the ThermalCutout setting displaying 'Open', it indicates that the high temperature switch has sensed abnormal temperature. Verify if the humidifier was operating below the standard water level. Replace water level sensor if necessary.
T
Timothy ColemanAug 9, 2025
What to do if my Neptronic Humidifier does not operate and the screen is turned off?
- R
  russogregoryAug 9, 2025
  If your Neptronic Humidifier isn't operating and the screen is off, there are several potential causes: * **Power Supply:** Check the main power supply and fuses. Verify the circuit breaker disconnect switch. * **Low Voltage Fuse:** Check the transformer and the low voltage fuse. Verify that the low voltage circuit is complete. * **Wire Harnesses:** Check the wires harnesses and the main PC board. Verify that all connections have been made properly.
K
Karen JohnsonAug 13, 2025
Why is my Neptronic SKE4-N02 Humidifier always on foam cycle?
- J
  James NewmanAug 13, 2025
  If your Neptronic Humidifier is constantly running the foam cycle, it indicates an excessive foaming condition inside the evaporation chamber. To resolve this: * Verify the quality of the supply water. * Verify if chemical products were used to clean the evaporation chamber during maintenance. Rinse the chamber properly with water. * Check the setting of the drain cycle and consider reducing the time between drain cycles.
P
Patricia FloydAug 17, 2025
Why is my Neptronic SKE4-N02 Humidifier not draining?
- J
  James JonesAug 17, 2025
  If your Neptronic Humidifier is not draining, it could be due to the following reasons: * The drain valve is clogged. Check the drain valve. * During a drain or foaming cycle, the water level sensor has sensed that the water level has not decreased. Verify that the drain pump, the fill and drain water pipe connections and the water level sensor chamber are not obstructed.
S
stephanie98Aug 22, 2025
What causes the Neptronic SKE4-N02 Humidifier to not stop draining?
- J
  Jeffrey WilliamsAug 22, 2025
  If there's no water inside the evaporation chamber, or your Neptronic Humidifier won't stop draining, it could be because the humidifier is being filled with water but has not yet reached or does not reach the high limit of the water level sensor. To solve this: * Verify that the drain valve is open. * Check if the shutoff valve on the water supply line is open. * Verify the operation of the fill valve. * Check that the fill valve strainer and the external strainer are not blocked.
M
Michele FrazierAug 27, 2025
Why is my Neptronic SKE4-N02 producing steam even when the screen is off?
- P
  Paul CampbellAug 27, 2025
  If your Neptronic Humidifier is producing steam even when the screen is off, it could be due to: * The display FFC cable is not connected properly. Verify that the connections of the FFC cable are properly secured and are on the correct side. * The LCD display is defective. Replace the LCD display.

Summary

Handling and Lifting

Standard Humidifier Unit

Humidifier with SDU

Weather Proof Enclosure

Output and Power Consumption

Mechanical Installation

Installation Recommendations and Location

Guidelines for safe mechanical installation and selecting an appropriate location.

Positioning Requirements

Wall Mounting Procedures

SDU Positioning and Maintenance

Weather Proof Enclosure Mounting

WPE General Recommendations

Steam Dispersion Systems

SAM and SAME2 Horizontal Ducts

SAM;SAME2 Vertical Ducts

Multi-Steam System

S.A.M. and S.A.M.E2 Duct Mounting

Steam Output Connections

Installation Guidelines

Steam Line Condensate Management

Remote SDU Installation

Plumbing Connections

Plumbing Connections for Larger Models

Water Supply Connections

Water Drain Connections

Weather Proof Enclosure Plumbing

Electrical Connections

Power Connection Diagram

Illustrates single-phase and three-phase power terminal connections.

Low Voltage Control Connections

Printed Circuit Board Interface

Electrical Control Wiring

Safety Contact Wiring

How to wire airflow switches, humidistats, and interlocks, including jumper usage.

Dry Contacts

Humidifier Operation Modes

Modulating Humidifier Control

Network Communication Setup

Control Device Placement

Controller Configuration

Control Panel Features

Installation Menu Settings

Integration Menu Settings

Network Configuration

Settings for BACnet, Modbus, and network parameters.

Alarm List

Start-up Procedure

Initial Verification Checklist

Checklist for correct installation and connections before powering on.

Operational Start-up Steps

Instructions for powering on, verifying water flow, and checking for leaks.

Service and Maintenance

Cleaning the Evaporation Chamber

Detailed steps for draining, removing, cleaning, and reinstalling the evaporation chamber.

Evaporation Chamber Cleaning Stages

Troubleshooting Guide

Neptronic SKE4-N02 Specifications

General

Model	SKE4-N02
Category	Humidifier
Power Consumption	3.0 kW
Enclosure Rating	NEMA 1
Type	Steam Humidifier
Control Signal	0-10 V
Output Signal	0-10 V
Relative Humidity	0 to 100%
