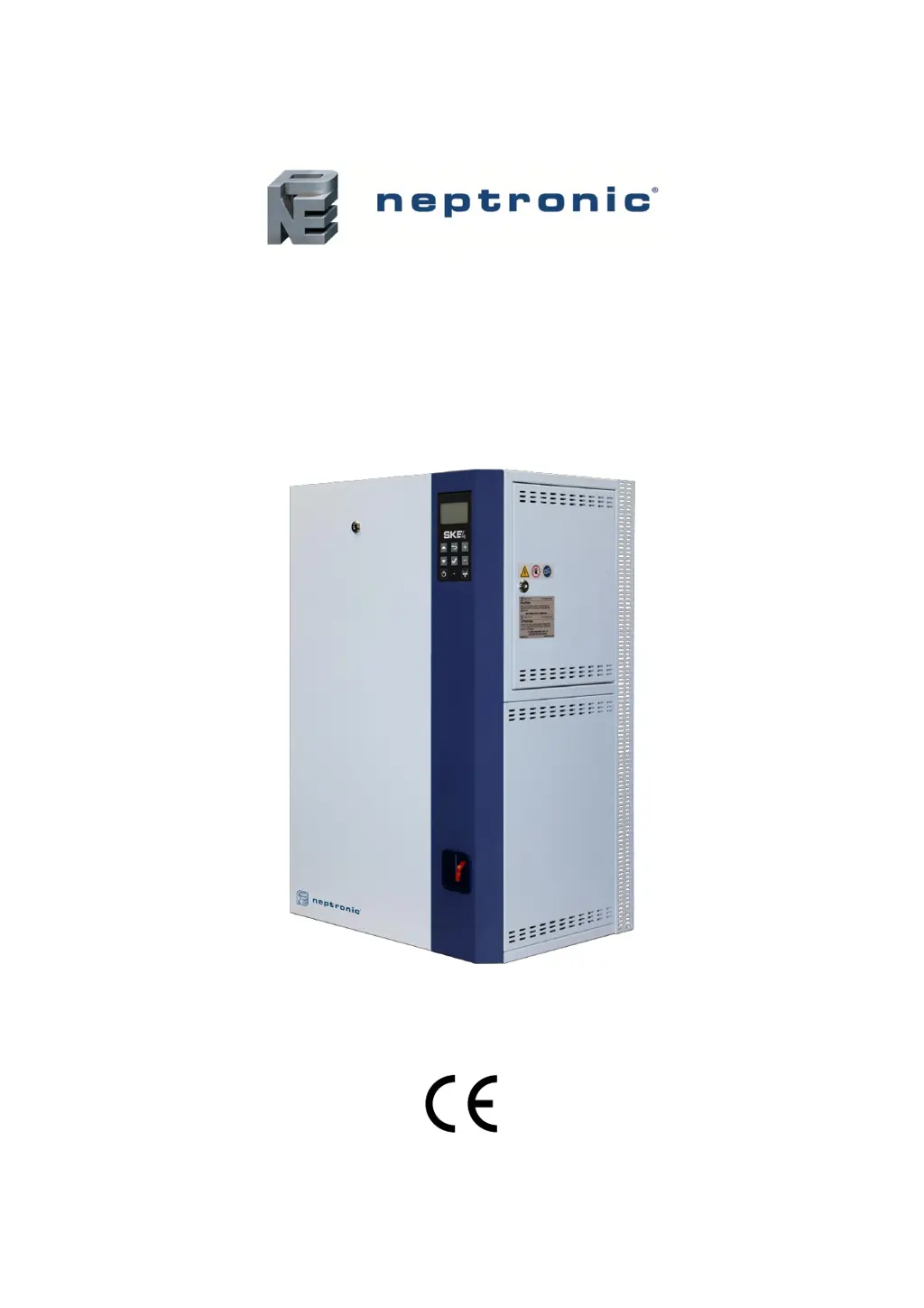

Neptronic SKE4-E Series

Questions and Answers

R
Richard WagnerAug 12, 2025
What to do if Neptronic SKE4-E does not produce steam?
- J
  Jeffrey WangAug 12, 2025
  If your Neptronic Humidifier isn't producing steam, consider these potential causes: * For modulating humidifiers: The analog signal may not be detected. Verify the control input setting. * For On/Off humidifiers: There may be no demand from the humidistat. Check the humidistat setting. * Air flow may not be detected by the air pressure switch. Check the fan operation. * The high limit humidistat might be open. Check the operation of the high limit humidistat. * The interlock contact could be open. Check the interlock contact. * Control wires may not be properly secured to the terminal blocks. Verify the wire connections to the control terminal blocks.
J
jenniferperryAug 16, 2025
Why is Neptronic SKE4-E producing steam with screen off and blue LED?
- J
  Jeffrey RobertsAug 16, 2025
  If your Neptronic Humidifier is producing steam but the screen is off and the status display LED is blue, it could be due to: * The display FFC cable not being connected properly. Verify that the connections of the FFC cable are properly secured and on the correct side. * A defective LCD display. Replace the LCD display.
J
Joshua AlexanderAug 20, 2025
Why my Neptronic SKE4-E Humidifier screen is turned off?
- H
  hmichaelAug 20, 2025
  If your Neptronic Humidifier screen is off, it could be due to several reasons: * The humidifier isn't receiving power. Check the main power supply, fuses, disconnect switch, and circuit breaker. * The low voltage fuse might be open. Inspect the transformer and low voltage fuse, ensuring the low voltage circuit is complete. * Wires inside the humidifier might be loose. Check the wire harnesses and main PC board, ensuring all connections are properly secured.
D
Dustin JohnsonAug 23, 2025
Why is there no water in my Neptronic SKE4-E evaporation chamber?
- C
  Charles BaileyAug 25, 2025
  There could be a few reasons why there's no water inside the evaporation chamber of your Neptronic Humidifier, or why it won't stop draining: * The humidifier may be filling with water but not reaching the high limit of the water level sensor. Verify that the drain valve is open, the shutoff valve on the water supply line is open, the fill valve is operating correctly, and that the fill valve strainer and external strainer are not blocked. * The humidifier may not be filling with water.
B
Bobby PerezAug 27, 2025
Why Neptronic Humidifier screen is on but status LED is off?
- D
  Daniel SanchezAug 27, 2025
  If the screen of your Neptronic Humidifier is on, but the status display LED is off, ensure that the power button has been pressed and held for 3 seconds to activate the humidifier.
W
wmillsAug 31, 2025
How to fix a Neptronic SKE4-E that does not drain?
- V
  Victor SimsAug 31, 2025
  If your Neptronic Humidifier isn't draining, here are a couple of things to check: * The drain valve might be clogged. Check the drain valve. * The water level sensor may have sensed that the water level hasn't decreased during a drain or foaming cycle. Verify that the drain pump, the fill and drain water pipe connections, and the water level sensor chamber are not obstructed.
J
James ShermanSep 4, 2025
Why is my Neptronic SKE4-E Humidifier always on foam cycle?
- H
  Harry JohnsonSep 4, 2025
  If your Neptronic Humidifier is always on the foam cycle, it indicates an excessive foaming condition inside the evaporation chamber. To address this: * Verify the quality of the supply water. * Check if chemical products were used to clean the evaporation chamber during maintenance and ensure it's rinsed properly with water. * Check the setting of the drain cycle and consider reducing the time between drain cycles.
R
Richard WardSep 8, 2025
What to do if Neptronic SKE4-E is not operating and the Status Display LED is Red?
- E
  Ernest StephensSep 8, 2025
  If your Neptronic Humidifier isn't operating and the Status Display LED is red, with the ThermalCutout setting displaying 'Open', it indicates the high temperature switch has sensed an abnormal temperature. Verify if the humidifier was operating below the standard water level and replace the water level sensor if necessary.

Summary

Foreword

Neptronic Company Overview

Overview of Neptronic, a private corporation designing and manufacturing HVAC products.

About the Manual

Explains the purpose and conditions of the installation and operation instructions.

Electricity Safety

Warning about electrical installation requiring qualified personnel and adherence to local regulations.

Correct Product Use

States the product is for humidification only; other applications are not intended.

General Warranty Information

Refers to terms and conditions for the product warranty.

Handling and Lifting

Unpacking and Handling

Instructions for handling and unpacking the steam humidifier safely.

System Overview

List of Supplied Accessories

Lists the accessories provided with the SKE4 Steam Humidifier.

Optional Features

Lists optional features available for the SKE4 humidifier models.

Steam Distribution Systems

Explains the different steam distribution systems offered by Neptronic.

Visual Identification

Humidifier Left Side View

Diagram showing components on the left side of the humidifier.

Humidifier Right Side View

Diagram showing components on the right side of the humidifier.

Standard Humidifier Dimensions

Dimensions and Weight Table

Provides a table of dimensions and weights for different SKE4 models.

Humidifier with Space Distribution Unit

SDU Dimensions and Weight

Table detailing dimensions and weights for humidifiers with SDU.

Weather Proof Enclosure

Enclosure Dimensions and Weight

Table showing dimensions and weights for weather-proof enclosures.

Performance Specifications

Output and Power Consumption

Table detailing steam capacity, power, and consumption for SKE4 models.

Mechanical Installation Guide

General Installation Recommendations

General advice for mechanical installation, including safety warnings.

Choosing the Installation Location

Guidelines for selecting a suitable location for the humidifier installation.

Humidifier Positioning

Positioning Requirements

Specifies clearances and mounting height requirements for humidifier placement.

Wall Mounting Procedure

Wall Mounting Guidelines

Provides safety cautions and bracket positioning for wall mounting.

SDU Installation

Positioning Humidifier with SDU

Details on placing the SDU on the humidifier, considering clearances and ventilation.

SDU Maintenance

Instructions for cleaning the SDU blower.

Weather Proof Enclosure Installation

Enclosure Positioning and Mounting

Guidelines for positioning and mounting the weather-proof enclosure.

Enclosure Installation Recommendations

Recommendations for placement, clearances, and securing the weather-proof enclosure.

Steam Dispersion Systems

Selecting a Steam Dispersion System

Introduces Neptronic's steam distribution systems for air ducts.

Vertical Duct Systems

S.A.M. or S.A.M.E2 Vertical Duct

Describes S.A.M. systems for vertical ducts.

Multi-Steam System Overview

Describes the Multi-Steam system for short absorption distances or low temperatures.

S.A.M. Positioning and Mounting

Duct Mounting for S.A.M.

Instructions for mounting S.A.M. systems in air handling units or ducts.

S.A.M. Distribution Pipe Recommendations

Provides recommendations for S.A.M. distribution pipe sizes and static pressure.

Horizontal Duct Steam Pipe Placement

Horizontal Duct Pipe Placement

Illustrates steam pipe placement for 35mm and 51mm pipes in horizontal ducts.

Vertical Duct Steam Pipe Placement

Eyelet Orientation

Shows eyelet orientation for S.A.M. and S.A.M.E2 in vertical ducts.

Vertical Duct Pipe Placement

Illustrates steam pipe placement for 35mm and 51mm pipes in vertical ducts.

Steam Output Connections

Typical Steam Output Installation

Diagram showing a typical steam output connection installation.

Steam Output Piping Recommendations

Rules to avoid restrictions, condensation, and malfunctions in steam output piping.

Steam Line Trap Installation

S Trap Installation on Steam Line

Explains the correct and incorrect installation of steam traps (S traps).

Steam Output Positions

Steam Output Dimensions Table

Table showing the dimensional positions of steam outputs for different SKE4 models.

Remote SDU Installation

Remote SDU Installation Procedure

Instructions for installing the SDU remotely from the humidifier.

Remote SDU Wall Mounting

Remote SDU Mounting Bracket Dimensions

Provides dimensions for mounting brackets for the remote SDU.

Optional SDU Cover Installation

Optional SDU Cover Installation Steps

Steps to install the optional remote SDU cover.

Plumbing Connections

General Plumbing Connection Guidelines

General guidelines for plumbing installation, water types, and connections.

Water Supply Connections

Water Supply Specifications and Installation

Details water inlet specifications and installation recommendations for the supply line.

Water Drain Connections

Water Drain Connection Requirements

Specifies drain connections, pipe requirements, gradient, and diameter.

Weather Proof Enclosure Plumbing

Enclosure Plumbing Connections Diagram

Shows plumbing connections for weather-proof enclosures.

Weather Proof Enclosure Drain Valve

Explains the function of the weather-proof enclosure's water drain valve.

Electrical Connections

Electrical Connection Safety and Procedure

Instructions for safe electrical connections, including power supply types and protection.

Power Supply Wiring Access

Power Supply Hole Locations

Identifies knockout hole locations for power supply wiring in standard and weather-proof enclosures.

Low Voltage Control Wiring

Printed Circuit Board (PCB) Interface

Diagram and explanation of the Printed Circuit Board (PCB) interface and connections.

Electrical Control Interfaces

Control Terminal Block Assignments

Shows terminal block assignments for network, safety, power, and control signals.

Safety Contact Wiring Details

Details wiring for airflow switch, high limit humidistat, and interlock safety contacts.

Dry Contact Usage

Explains the use of volt-free contacts for alarms and service.

Humidifier Control Modes

ON;OFF Humidifier Wiring

Wiring diagram and instructions for ON/OFF humidifier control.

Modulating Humidifier Control

Analog Signal Inputs

Instructions for connecting analog signals for modulating humidifiers.

External Humidistat Control

Wiring for external humidistat control using HRO20.

Remote Sensor Humidity Control

Humidity Control with Remote Sensor

Wiring for humidity control using SHR10/SHC80.

Internal Humidity Control

Wiring for internal humidity control using SHR10/SHC80.

External Signal Humidity Control

External Signal Humidity Control Wiring

Wiring for humidity control from an external signal source.

Network Communication Setup

Network Communication Connections

Instructions for connecting the humidifier to BACnet or Modbus networks.

Duct;AHU Control Placement

Control Device Placement in Ducts

Placement guidelines for humidistats and airflow switches in duct systems.

Controller Interface

SKE4 Controller Overview

Overview of the SKE4 controller and its buttons.

Control Panel Feature Descriptions

Description of each button and display indicator on the control panel.

Controller Navigation

Idle Screen Display

Description of information displayed on the controller's idle screen.

Accessing Controller Menus

How to access different menu levels using passwords.

Menu Operation

Menu Navigation and Configuration

Explains how to navigate and change settings within the controller menus.

General Menu Settings

Status Parameters

Displays status of AirFlow, SupplyHighLimit, Interlock, OccupancyState, ControlState, BoilerDemand, PowerOutput, ServiceDue, State, WtrProbeFail.

Control Parameters

Displays Room Demand, SupplyHLDemand, HumDemand and their respective settings.

Physical IO Status

Shows status of AirFlow, Supply High Limit, Interlock, Bin ExtDemand, ControlInput, RoomRH, SupplyHLRH.

General Menu Settings (Continued)

Displays settings for Water Leak Detect, Water Level Low/High, Water Temp, Foam Sensor, Thermal Cutout, SSR Temp, Cabinet Temp, Current Sensors, Fuse, Fan, Memory Card, Foam, Water Level, Pump, Fill, Blocked Piping, Heat Timeout, Overheat, Water Leak, Tank Blocked, Refill Delay.

User Settings Menu

User Settings: Command Options

Settings for Occupy Schedule, Room Demand Loop, RoomRHStp, RoomRHUnocStp, RoomRHVacStp.

User Settings: System Options

Settings for SupplyHLLoop, SupplyHLStp, UTCOffset, DaylightSavings, Local Date Time.

User Settings: Interface Options

Settings for Backlight Level, Contrast, Keypad Buzzer, Language, Units, Temperature, Humidity, LockSetpnt.

Service Menu

Service Status Information

Displays RunTime, On Time, ServRun Time, ServOnTime, Service Due.

Service Commands and Actions

Settings for Drain Schedule and Request (ResetAlarms, Drain, ResetCounters, Fill, WaterCalib).

Installation Menu

Quick Configuration Settings

Settings for DrainInterval, Idle Time, BlowdownRate, ServInterval, ServOperation, FillMode.

Control Settings

Settings for Control Profile, ModHLProfile, RoomDemandLoop, RoomRHSrc, RoomRHStptSrc, SupplyHLLoop, SupplyHLReadingSrc, SupplyHLStpntSrc, Humidity Control.

Installation Menu (Continued)

Physical IO Configuration

Settings for HumLowDeadBand, NtwkTimeout, HumCntrlDemandSrc, HumCntrlHLSrc, HumCntrlBinDemandSrc, AlwaysRoomRH, AlwaysSupplyRH, CntrlSigType.

Installation Menu (Continued)

Physical IO Signal Types

Settings for RoomRHSigType, SupplyRHSigType.

System Configuration Settings

Settings for ResetFactory, InstallationDate, AlarmBuzzer, SysLogLevel, InhibitResProbe, FanOffDelay, FanTrgt, MinSteamOut, DrainInterval, Drain Volume, MaxOutput, Idle Time, IdleTempStpnt, BlowdownRate, ServInterval, IdleRinseInterval, WtrLvlReplace, ServOperation, FillMode.
