Neptronic SKE4-E Series - Modulating Humidifier Control; Analog Signal Inputs; External Humidistat Control

SKE4-E Steam Humidifier
Installation Instructions and User Manual
www.neptronic.com
Page | - 39 -
Modulating Humidifier
Analog Signals
For operation of modulating humidifiers, the analog signal(s) must be connected between terminals TB4
1 and TB4 3, 4 and/or 5. To configure the source of the signal(s), access the Control sub-menu located
in the Installation menu (see page 52).
Humidity Control by Humidistat (External Mode)
Humidity controlled externally, using HRO20 humidistat:

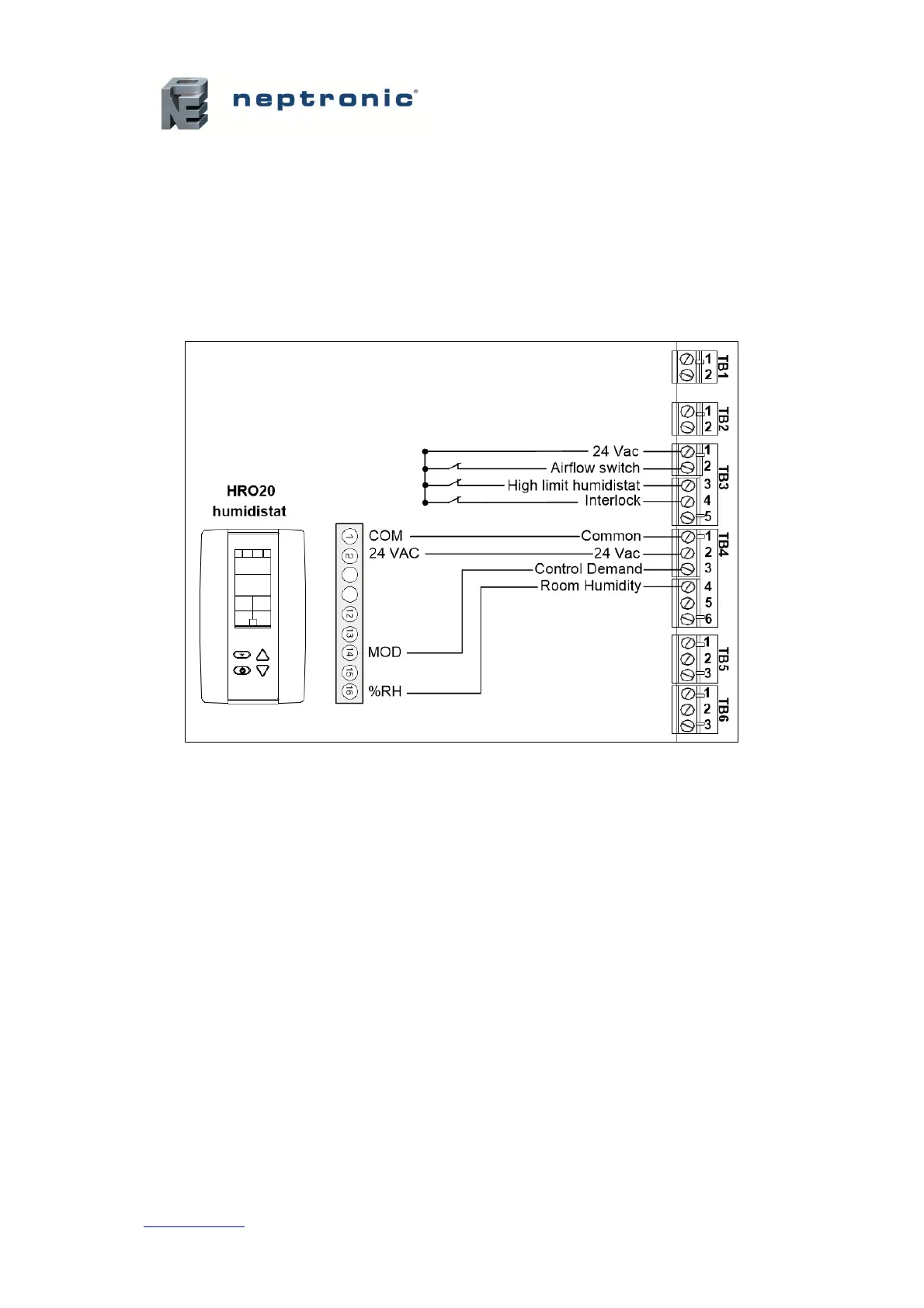

Illustration 42 - Control Signal from HRO20 Humidistat
