SKE4-E Steam Humidifier
Installation Instructions and User Manual
www.neptronic.com
Page | - 40 -

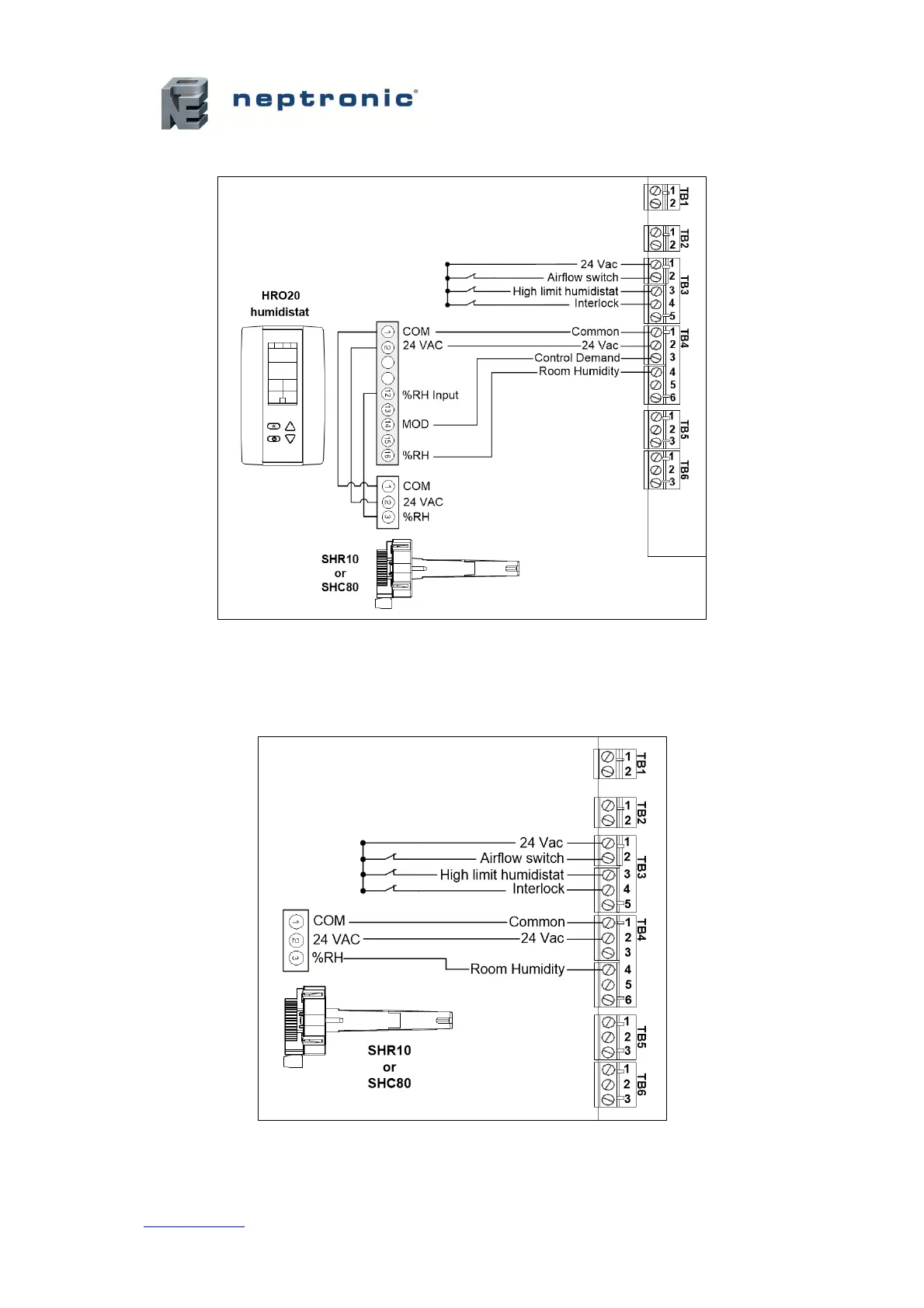

Humidity controlled externally, using HRO20 humidistat with SHR10 or SHC80 as space sensor:
Illustration 43 - Control Signal from HRO20 Humidistat with Remote Humidity Sensor (SHR10 or
SHC80)
Humidity Control by Humidifier (Internal Mode)
Humidity controlled internally, using SHR10 or SHC80 as space sensor:
Illustration 44 - Humidity Signal from Remote Humidity Sensor (SHR10 or SHC80)
