SKE4-E Steam Humidifier
Installation Instructions and User Manual
www.neptronic.com
Page | - 27 -
Wall Mounting the Remote SDU
A
B
C
4"
(102mm)
D
E

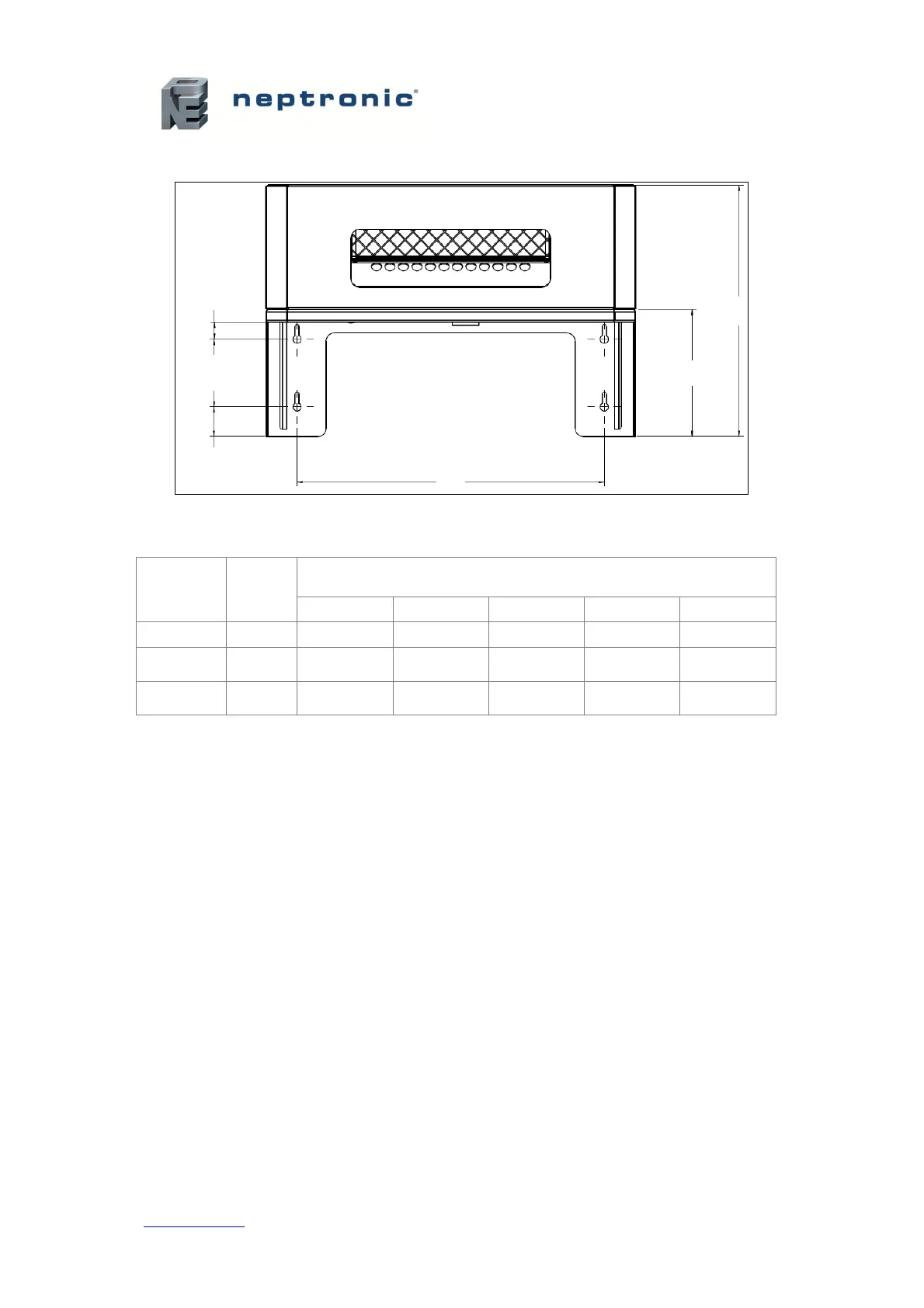

Illustration 27 - Remote SDU Mounting Bracket
Table 8 - Remote SDU Mounting Bracket Dimensions
Model
SDU
Dimensions (mm)
A
B
C
D
E
SKE4-E05
SDU4-1
406
171
348
19
29
SKE4-E10
SKE4-E20
SDU4-2
470
191
377
25
45
SKE4-E30
SKE4-E40
SDU4-3
470
191
480
25
45
