Do not apply force when tightening the screw on the mezzanine card; you might crack it.
i. Insert any SFP or QSFP modules that were removed from the impaired mezzanine card to the
replacement mezzanine card.
3. To install a mezzanine card:
4. You install a new mezzanine card if your system does not have one.
a. Using the #1 magnetic screw driver remove the screws from the face of the controller module and the
faceplate covering the mezzanine card slot, and set them aside safely on the magnet.
b. Remove the mezzanine card from the antistatic shipping bag and align it to the inside face of the
controller module.
c. Gently align the mezzanine card into place.
d. Using the #1 magnetic screw driver insert and tighten the screws on the face of the controller module
and on the mezzanine card.
Do not apply force when tightening the screw on the mezzanine card; you might crack it.
Step 4: Reinstall the controller module
After you replace a component within the controller module, you must reinstall the
controller module in the system chassis and boot it.

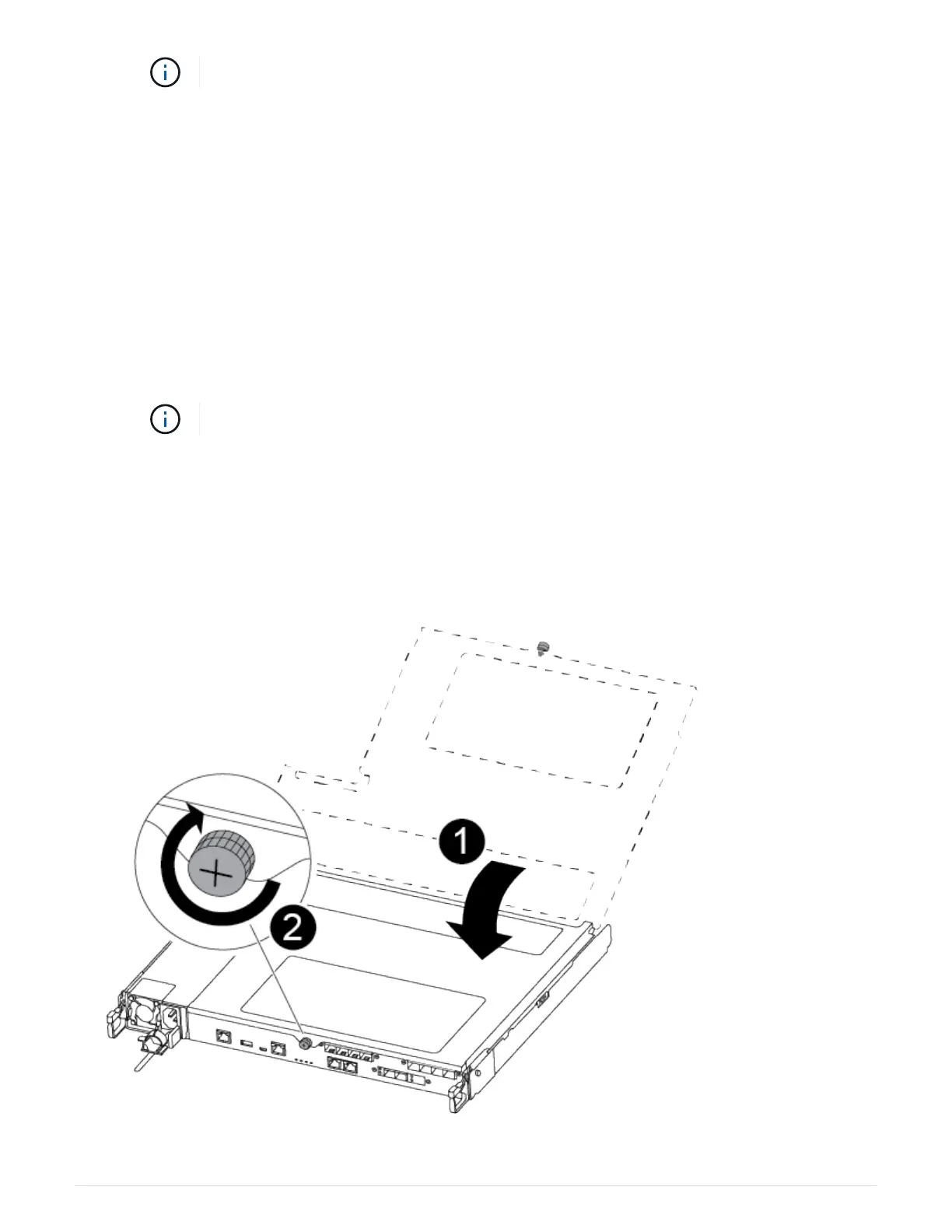

1. Close the controller module cover and tighten the thumbscrew.
1167
