4. Reinstall the riser:
a. Align the riser with the pins to the side of the riser socket, lower the riser down on the pins.
b. Push the riser squarely into the socket on the motherboard.
c. Rotate the latch down flush with the sheet metal on the riser.
Step 4: Replace the mezzanine card
The mezzanine card is located under riser number 3 (slots 4 and 5). You must remove
that riser to access the mezzanine card, replace the mezzanine card, and then reinstall
riser number 3. See the FRU map on the controller module for more information.

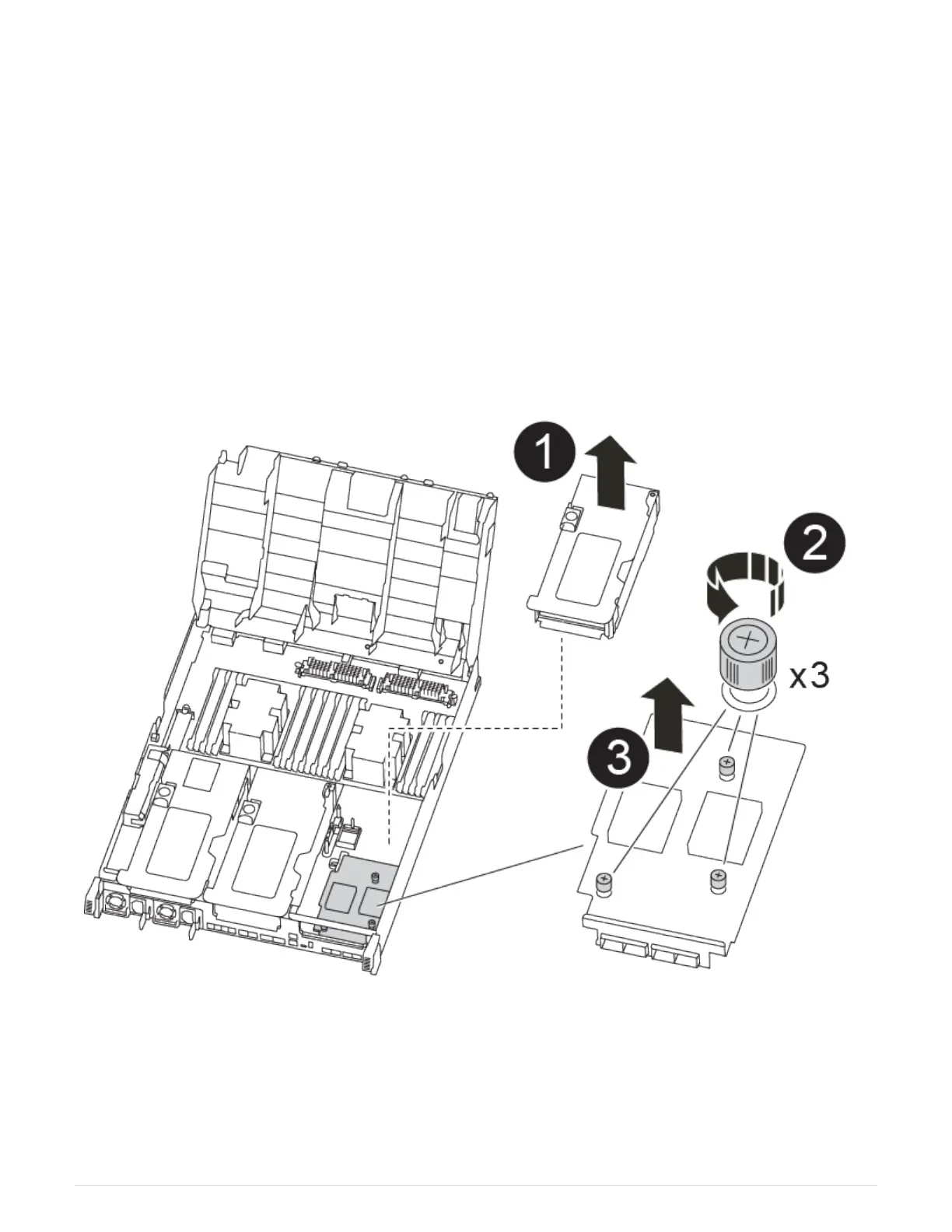

You can use the following animation, illustration, or the written steps to replace the mezzanine card.
Replacing the mezzanine card
Steps
1. Remove riser number 3 (slots 4 and 5):
a. Open the air duct by pressing the locking tabs on the sides of the air duct, slide it toward the back of
the controller module, and then rotate it to its completely open position.
b. Remove any SFP or QSFP modules that might be in the PCIe cards.
