Dimensions U.S.
Rear service clearance Note: The
rear door is split. Actual minimum
rear clearance is approximately 1/2
the recommendation.
30 in.
76.3 cm Minimum side clearance for panel removal
24 in. 61 cm
Minimum top clearance 12 in.
System cabinet exterior dimensions

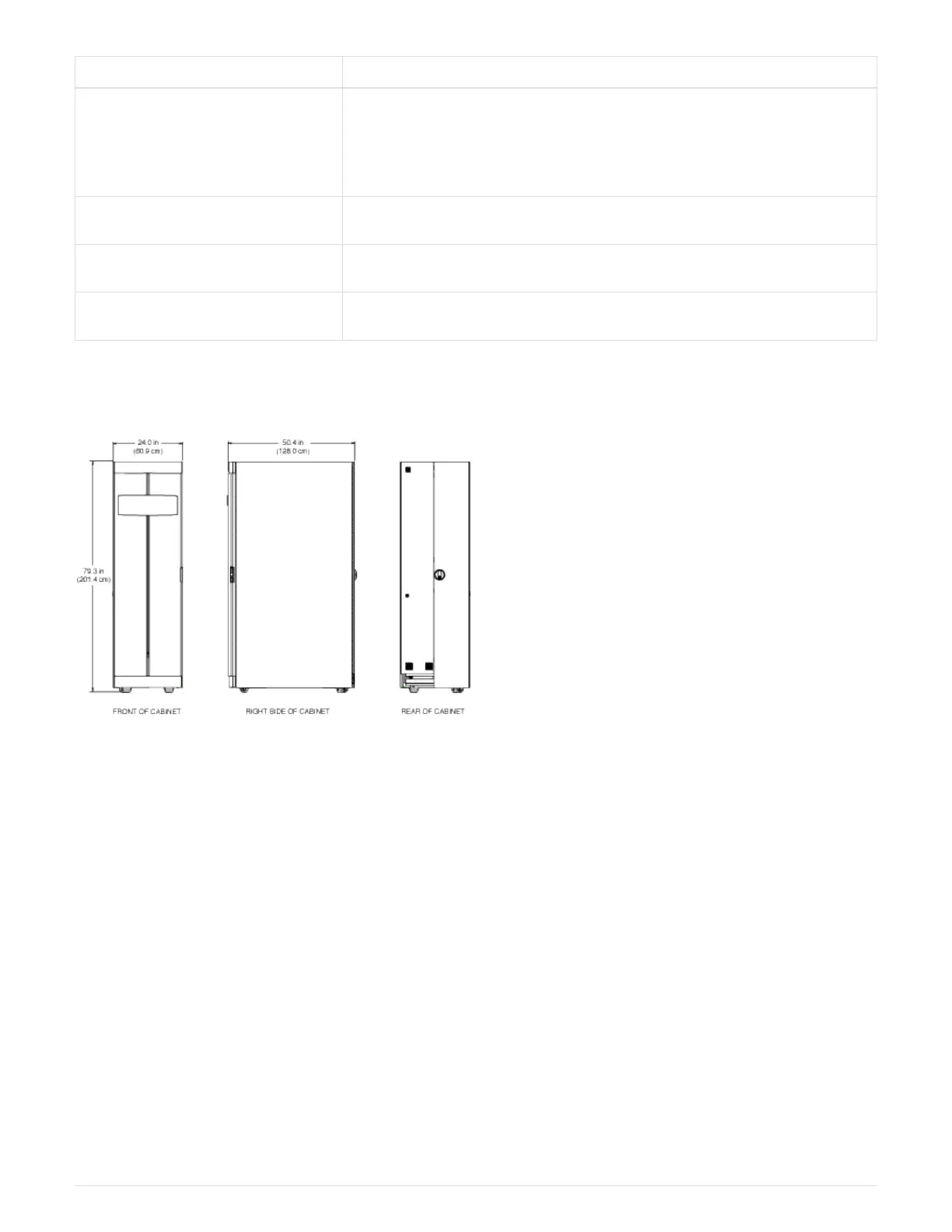

The following illustration shows the front, rear, and side views of the system cabinet:
The following illustrations show top and bottom views of the system cabinet, and identify the openings through
which you can run cable bundles from the floor of your data center into the system cabinet. The illustrations
also show the location of the system cabinet casters and leveling feet.
CAUTION:
To prevent your system cabinet from falling through the data center floor, do not attempt to roll the system
cabinet over a floor opening that is wider than the cable access opening at the bottom of the system cabinet.
