1. Place the system cabinets close together.

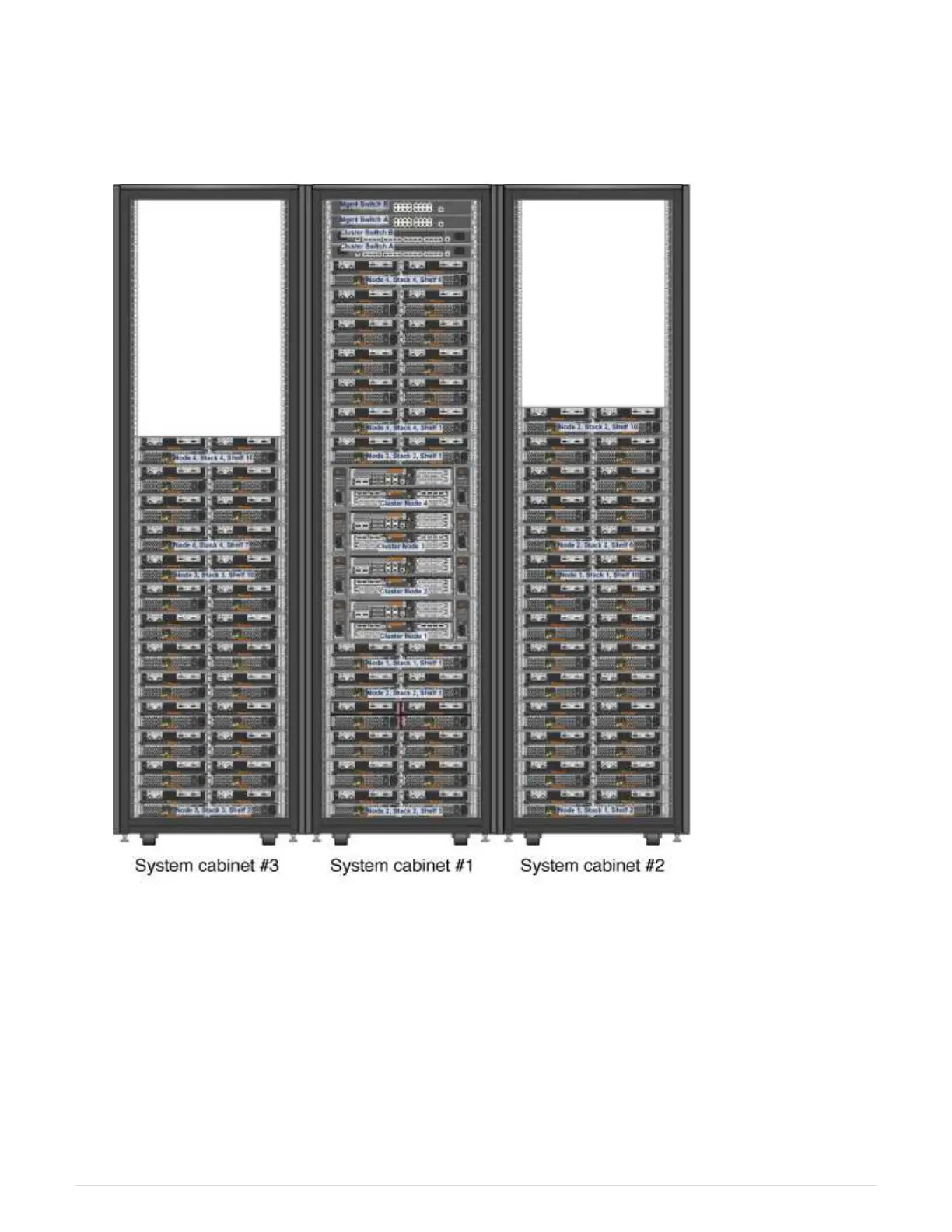

The cabinets should be arranged similarly to the following illustration, with the cabinet with the controller
modules in the middle, and the cabinets with additional disk shelves on either side. The sides of the
cabinets should be close, but do not need to touch each other yet.
2. If you are installing the interconnect kit with the side panels on as recommended, reinstall the side panels
that were removed during unpacking:
a. Lift the side panel, tilting it about 15 degrees away from the system cabinet bottom, and then hang it
over the lip at the top of the system cabinet frame.
b. Gently push the side panel against the cabinet frame, and then lock it in place with the key.
c. Repeat these substeps for the remaining side panels.
3. If you are installing the interconnect kit with the side panels removed, remove the front door whose hinges
are on the edge where the cabinets meet:
a. Unlock and open the front door that is being removed.
