• You must have installed the shelves, powered them on, and set the shelf IDs.
Install a drive shelf for a hot-add
Steps
1. If you are hot-adding one shelf using one set of RoCE capable ports (one RoCE capable I/O module) on
each controller module, and this is the only NS224 shelf in your HA pair, complete the following substeps.
Otherwise, go to the next step.
This step assumes that you installed the RoCE capable I/O module in slot 3, instead of slot
7, on each controller module.
a. Cable shelf NSM A port e0a to controller A slot 3 port a.
b. Cable shelf NSM A port e0b to controller B slot 3 port b.
c. Cable shelf NSM B port e0a to controller B slot 3 port a.
d. Cable shelf NSM B port e0b to controller A slot 3 port b.

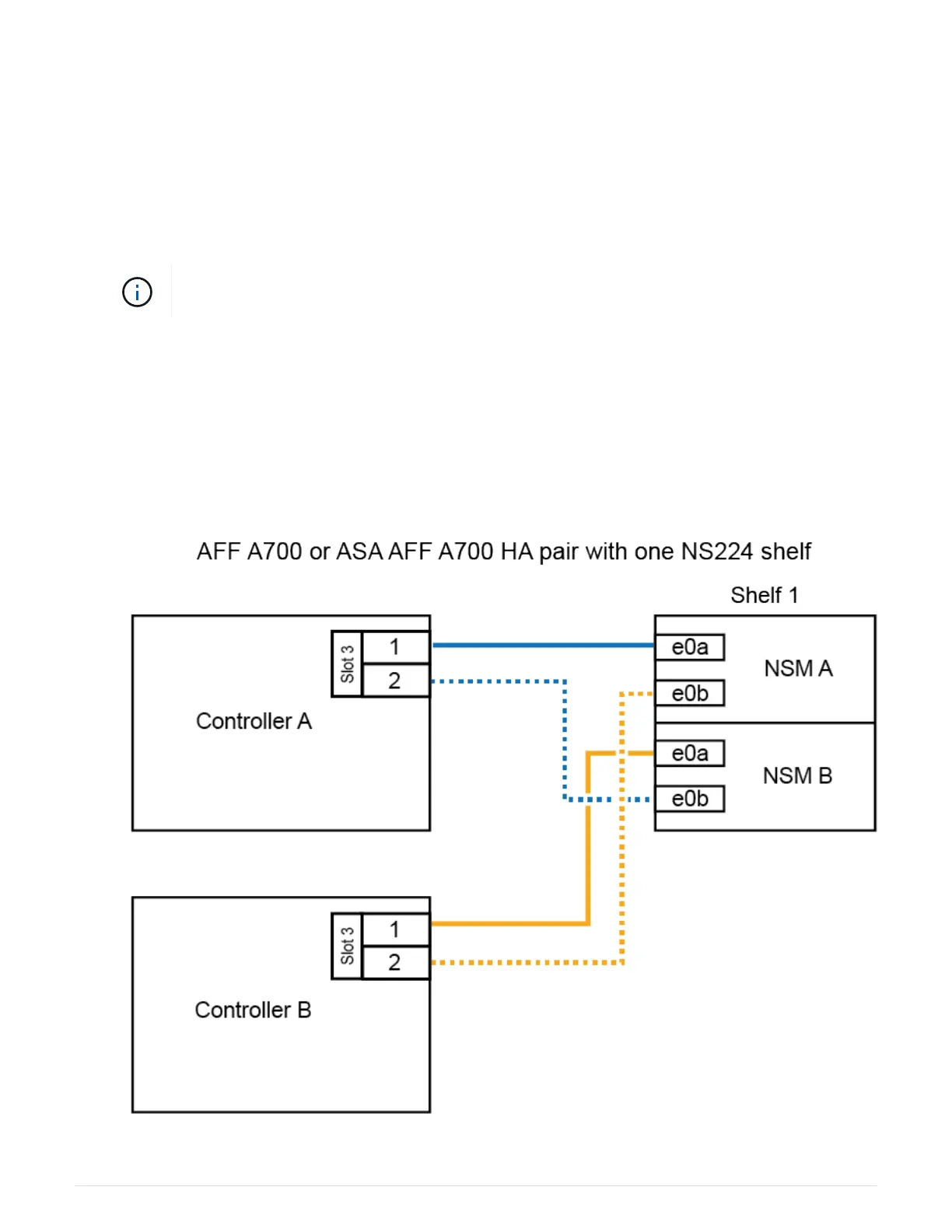

The following illustration shows cabling for one hot-added shelf using one RoCE capable I/O module in
each controller module:
1502
