Shelves Cabling
Shelf 1 a. Cable NSM A port e0a to controller A port e0c.
b. Cable NSM A port e0b to controller B slot 5 port b.
c. Cable NSM B port e0a to controller B port e0c.
d. Cable NSM B port e0b to controller A slot 5 port b.
e. If you are hot-adding a second shelf, complete the “Shelf 2” substeps;
otherwise, go to step 3.
Shelf 2 a. Cable NSM A port e0a to controller A slot 5 port a.
b. Cable NSM A port e0b to controller B port e0d.
c. Cable NSM B port e0a to controller B slot 5 port a.
d. Cable NSM B port e0b to controller A port e0d.
e. Go to step 3.

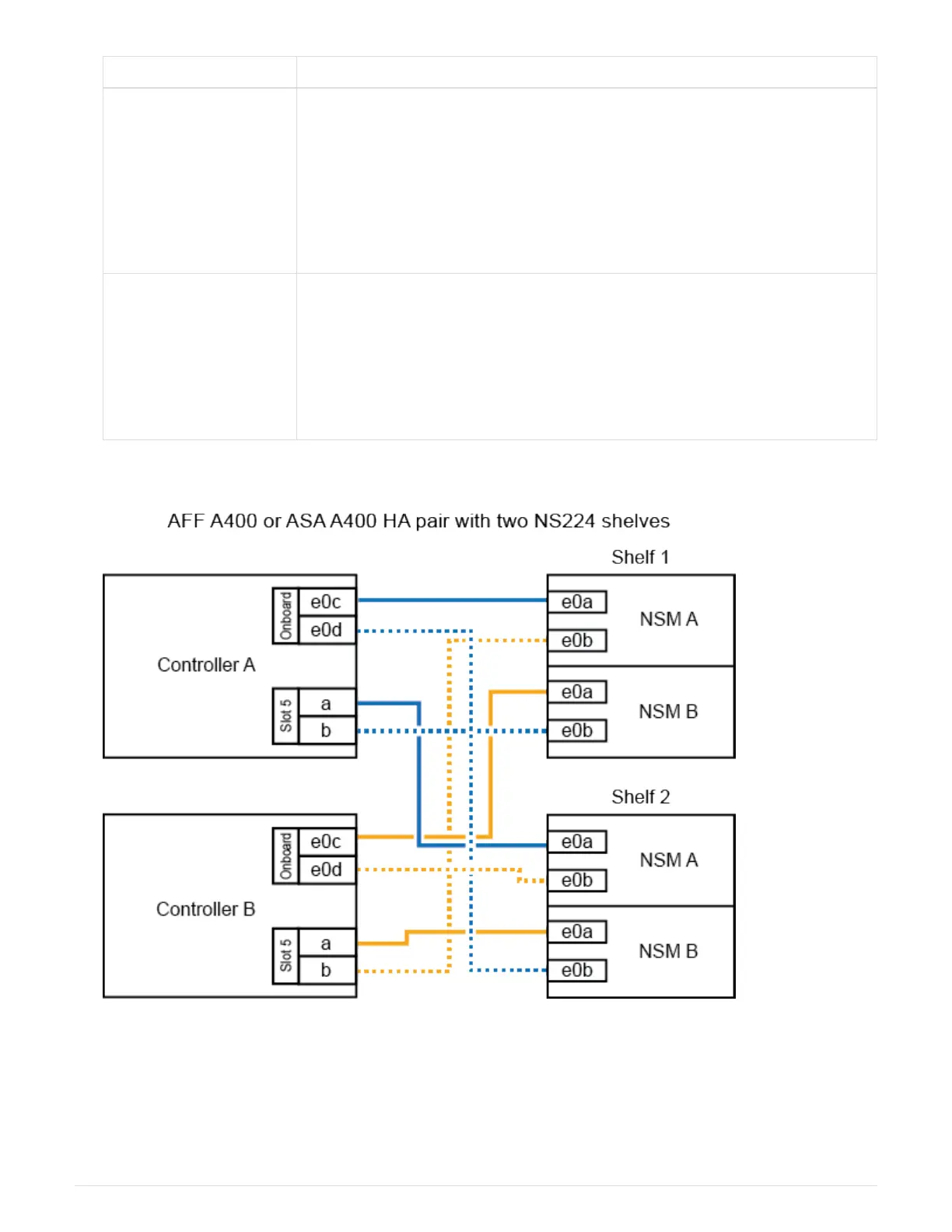

The following illustration shows cabling for two hot-added shelves:
3. Verify that the hot-added shelf is cabled correctly.
If any cabling errors are generated, follow the corrective actions provided.
NetApp Downloads: Config Advisor
