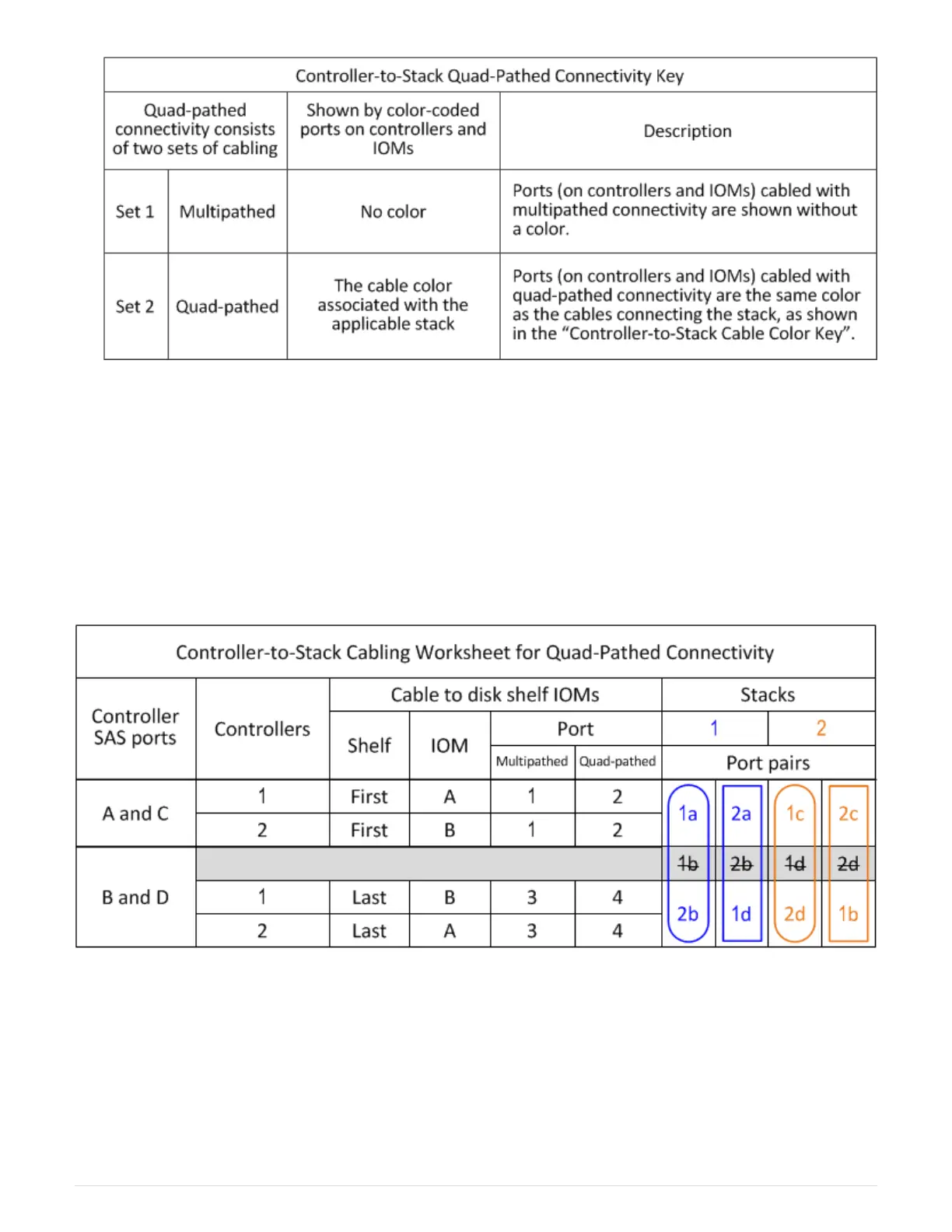

• The worksheet example shows port pairs designated for multipathed cabling or quad-pathed cabling to the
applicable stack.
Each port pair designated for multipathed cabling is encircled by an oval that is the color associated with
the stack it is cabled to. Each port pair designated for quad-pathed cabling is encircled by a rectangle that
is the color associated with the stack it is cabled to.
Quad-path HA with two quad-port SAS HBAs and two multi-shelf stacks
The following worksheet and cabling example uses port pairs 1a/2b (multipathed) and 2a/1d (quad-pathed) for
stack 1, and port pairs 1c/2d (multipathed) and 2c/1b (quad-pathed) for stack2.
