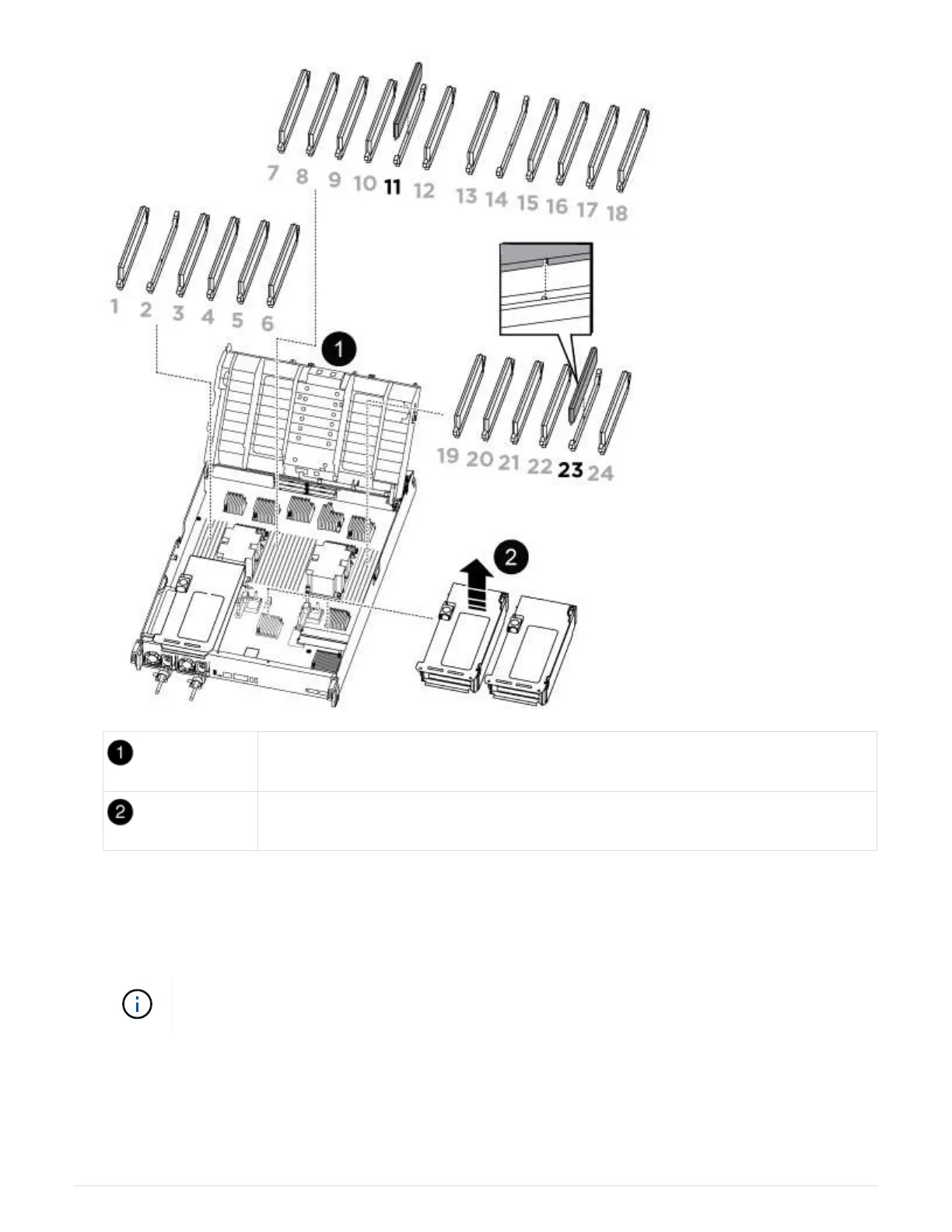

Air duct cover
Riser 2 and NVDIMM 11
2. Note the orientation of the NVDIMM in the socket so that you can insert the NVDIMM in the replacement
controller module in the proper orientation.
3. Eject the NVDIMM from its slot by slowly pushing apart the two NVDIMM ejector tabs on either side of the
NVDIMM, and then slide the NVDIMM out of the socket and set it aside.
Carefully hold the NVDIMM by the edges to avoid pressure on the components on the
NVDIMM circuit board.
4. Remove the replacement NVDIMM from the antistatic shipping bag, hold the NVDIMM by the corners, and
then align it to the slot.
The notch among the pins on the NVDIMM should line up with the tab in the socket.
912
