5. Locate the slot where you are installing the NVDIMM.
6. Insert the NVDIMM squarely into the slot.
The NVDIMM fits tightly in the slot, but should go in easily. If not, realign the NVDIMM with the slot and
reinsert it.
Visually inspect the NVDIMM to verify that it is evenly aligned and fully inserted into the slot.
7. Push carefully, but firmly, on the top edge of the NVDIMM until the ejector tabs snap into place over the
notches at the ends of the NVDIMM.
8. Reinstall any risers that you removed from the controller module.
9. Close the air duct.
Step 4: Reinstall the controller module and booting the system
After you replace a FRU in the controller module, you must reinstall the controller module
and reboot it.
1. If you have not already done so, close the air duct:
a. Swing the air duct all the way down to the controller module.
b. Slide the air duct toward the risers until the locking tabs click into place.
c. Inspect the air duct to make sure that it is properly seated and locked into place.

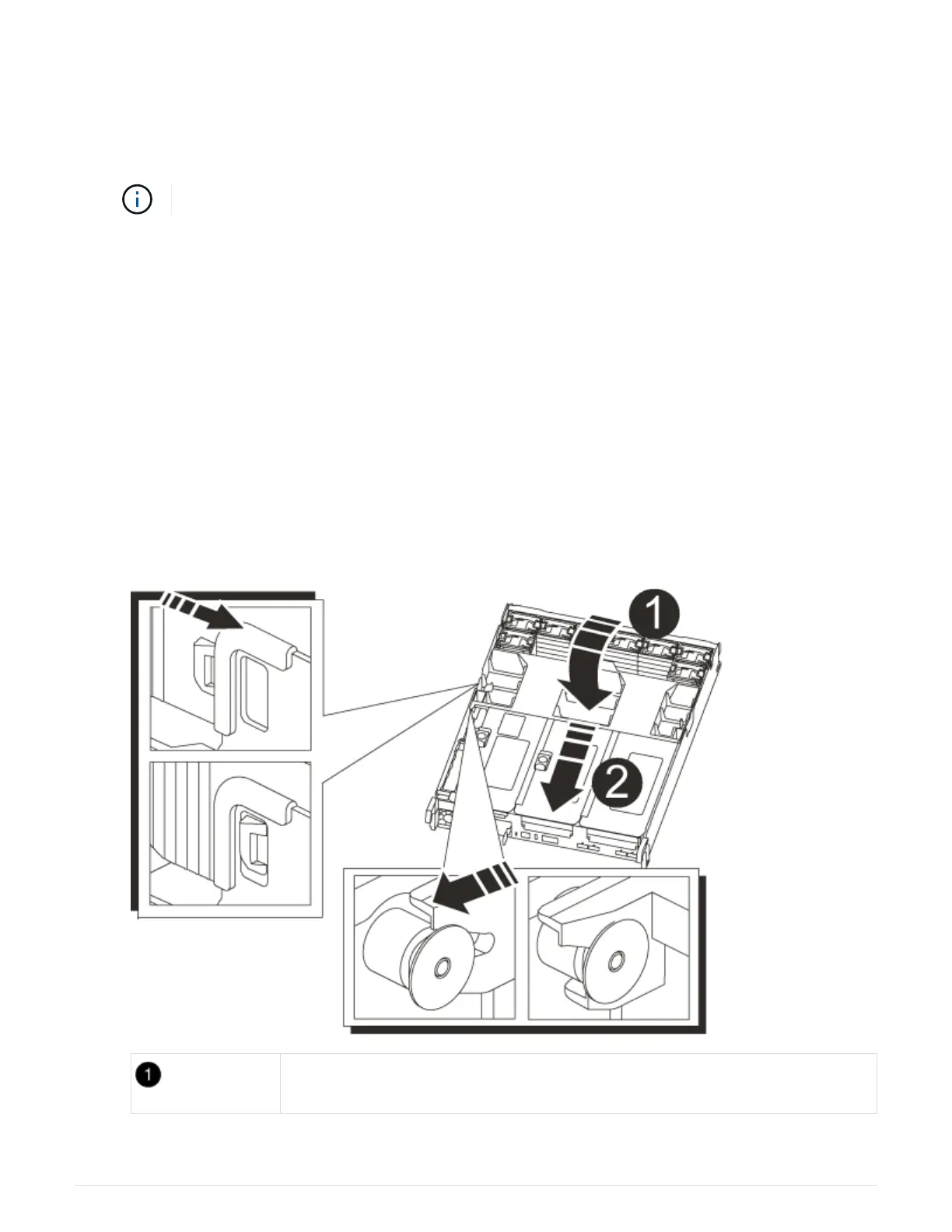

Locking tabs
913
